24KV 175*255*218 high voltage wall Bushing insulated epoxy resin 24kv from china suppily

24KV 175*255*218 HIGH VOLTAGE WALL Bushing

Material: Epoxy Resin

Rated Voltage: 24KV

Size: 187*255*218

Technology:  The Automatic Pressure Gelation (APG)

Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear

Operation Condition

1. Altitude: ≤ 1000m

2. Ambient temperature: -10℃~+40℃

3. Relative humidity ≤ 95% at +20℃ ambient temperature

4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.

Technical Requirement

1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV

2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in rated current condition.

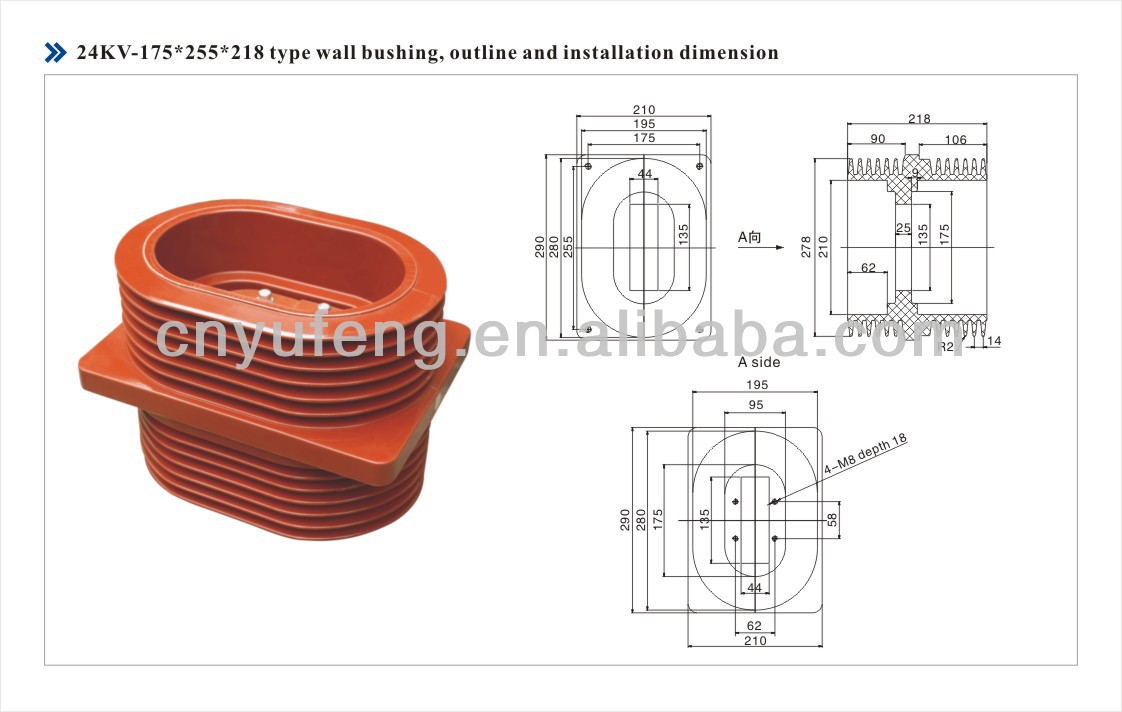

(Please check below drawings for more infomation:)
