- color:STAINLESS
- usage:switchgear doors
- model:metal-clad switchgear
- Place of Origin:CN;ZHE
- Place of Origin:CN
- Brand Name:YUFENG

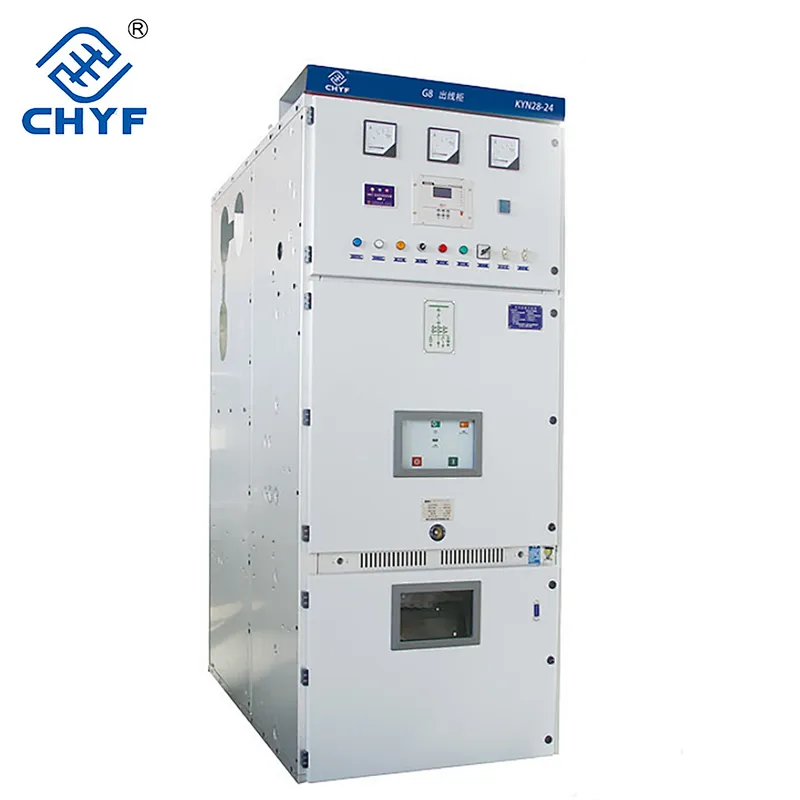

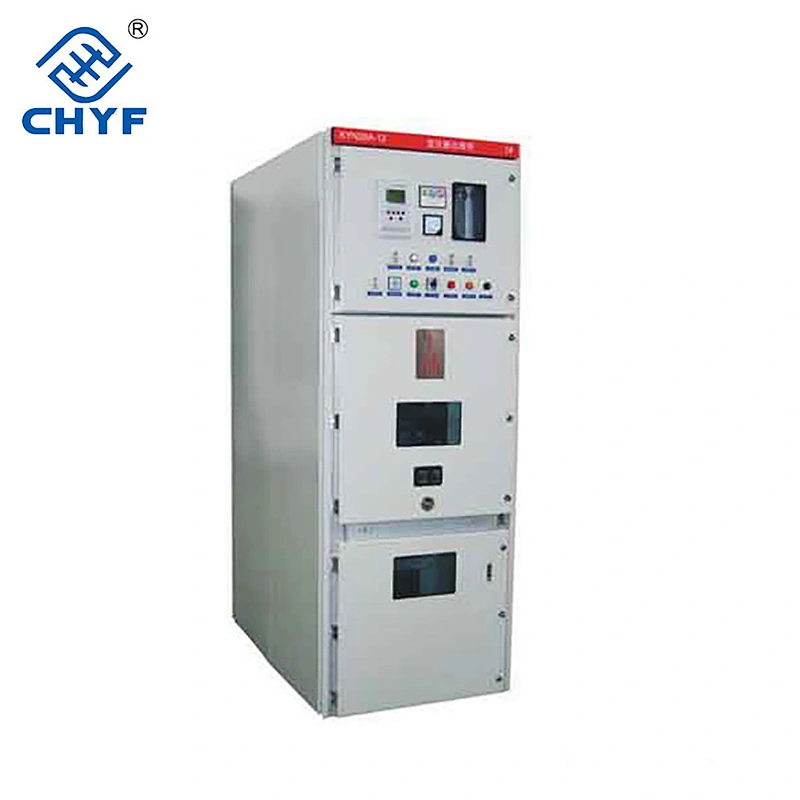

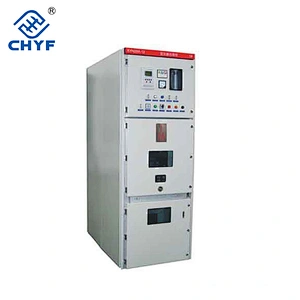

- Model Number:KYN-28A-12
High voltage switchgear parts from china supplier DETAILS LISTED AS BELOWS:
Wenzhou Yufeng Electric Co., Ltd is specialized in 12kV, 24kV, 40.5kV switchgear fittings for more than 15 year, main products listed as earthing switches,interlocking devices,chassis truck, insulation contact box, sensor, bushing...etc, Which can fit with ABB, Schneider and Siemens switchgear and Vacuum Circuit Breaker.
Passed ISO9001: 2000 and some authoritative test, with good quality, best price and on-time delivery, Yufeng gained praise in both domestic and international market. We also gained the super star company by our government and clients.
With the spirit of honesty, innovation and peruse perfect', we believe our future will be more and better. Sincerely hope we will have a long-term with Old and new customers on the basis of mutual trust and benefit. Any inquiry please feel free to contact us at any time.
| KYN28-12KV | |||
| Item | Unit | Data | |
| Rated voltage | KV | 6~12 | |
| Rated frequency | Hz | 50/60 | |
| Rated current | A | 630-4000 | |
| Rated insulation level | 1min power frequency(Phase to earth/across open contacts) | KV | 42/48 |
| lightning impulse withstand voltage (Phase to earth/across open contacts) | KV | 75/85 | |
| Main busbar rated current | A | 1250,1600,2000,2500,40000 | |
| Sub-busbar rated current | A | 630,1250,1600,2000,2500,3150 | |
| Rated short time withstand current(4s) | KA | 16,20,25,31.5,40,50 | |
| Rated peak withstand current | KA | 40,50,63,80,100,1250 | |
| Protection degree | Enclosure IP4X,IP2X(VCB door opened) | ||
| Outline dimension(W)*(D)*(H) | mm | 650(800,1000)/1500(1300,1670,2000)/2300 | |
| Weight | KG | 500~1200 | |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
