- rated voltage:35.5
- maximum voltage:40.5
- rated short time withstand current:31.5
- rated short circuit withstand time:4
- rated short circuit making current:80
- central distance between poles:80
- Place of Origin:CN
- Certification:CE
- Brand Name:YUFENG
- Model Number:JN22-40.5

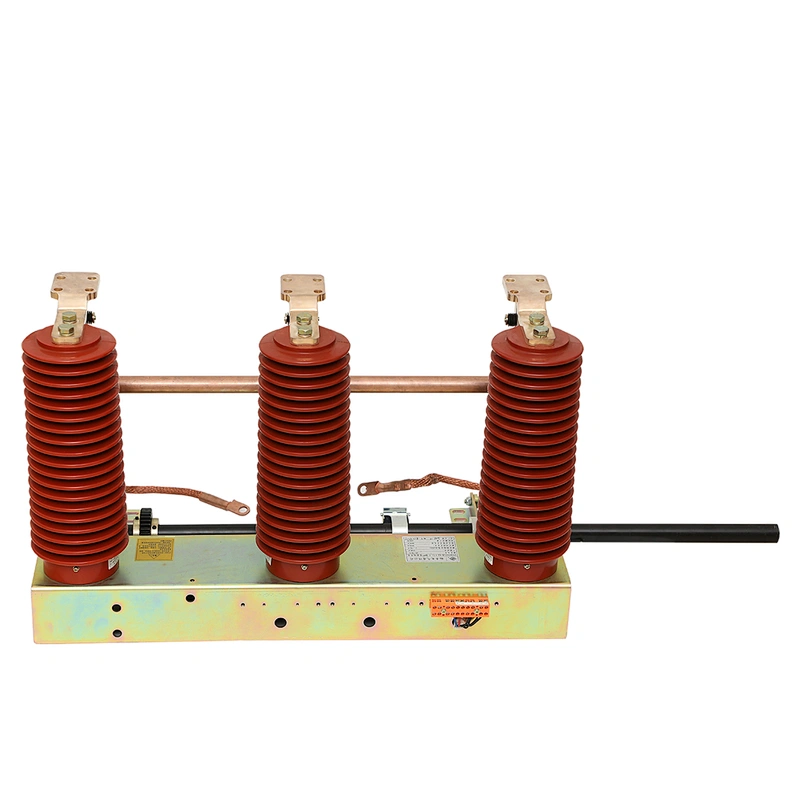

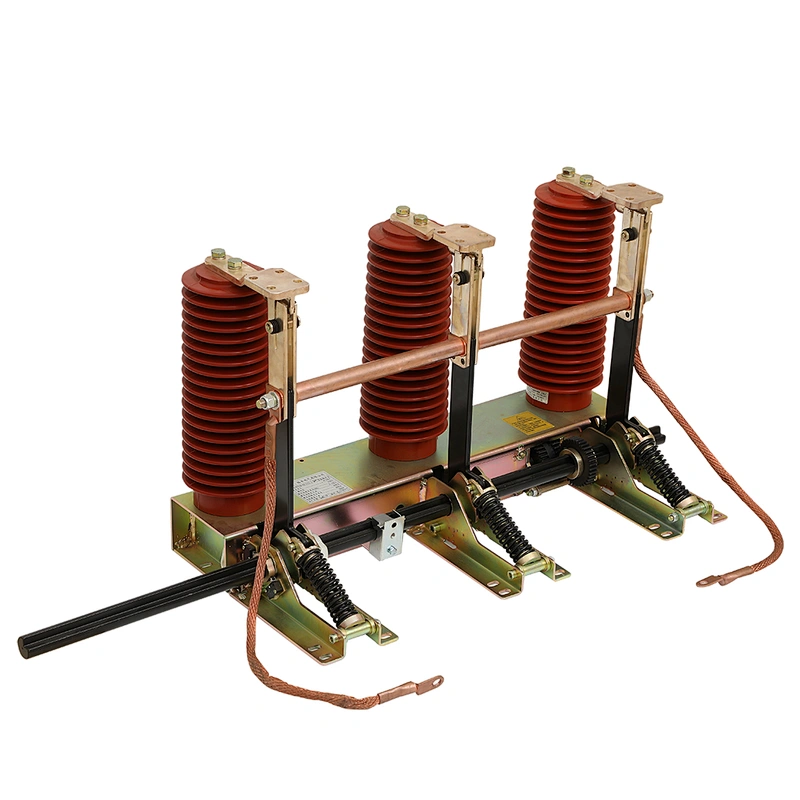

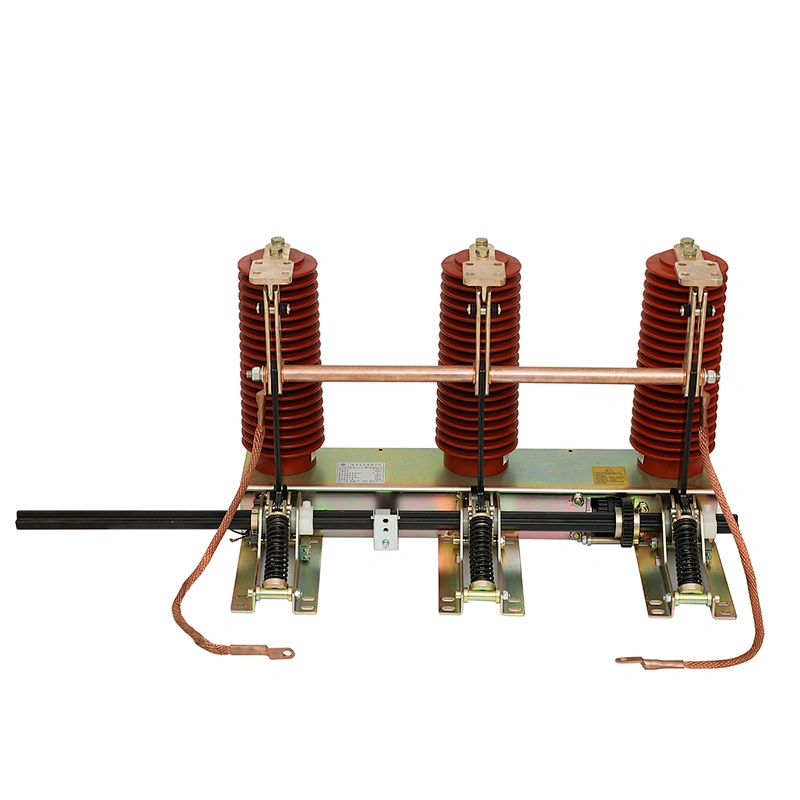

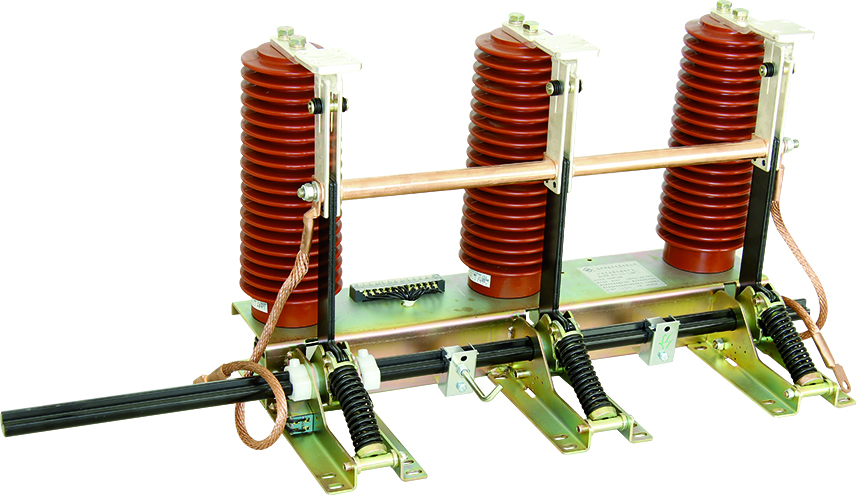

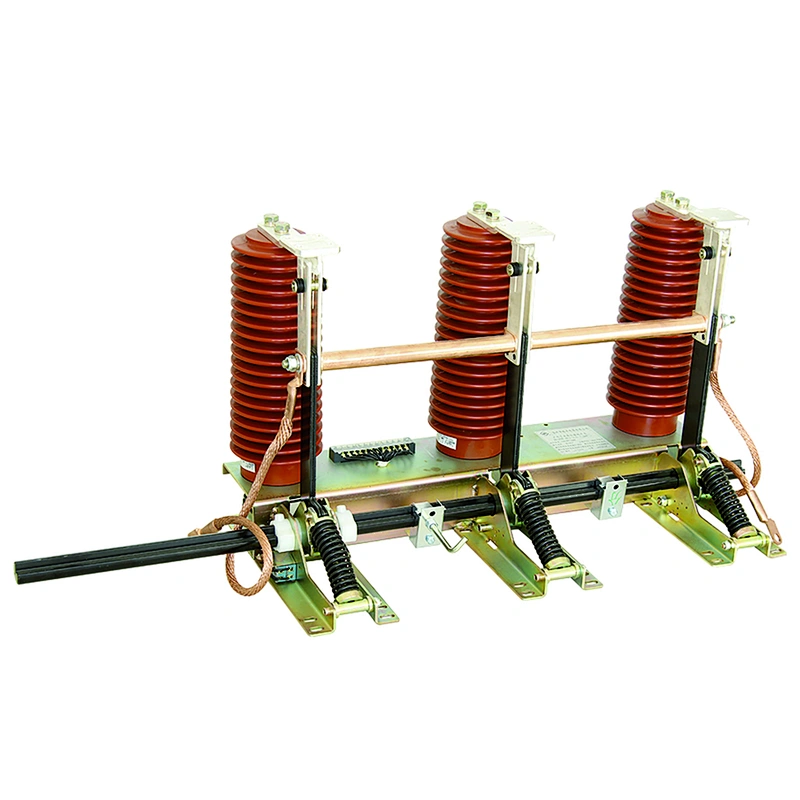

33KV switchgear earthing switch details listed as belows:
1. Model No.: JN 22-40.5 / 31.5 HV earthing switch
2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3. Application: KYN61-40.5 HV switchgear and various types HV switchgear
4. Main function: Used for earthing protection

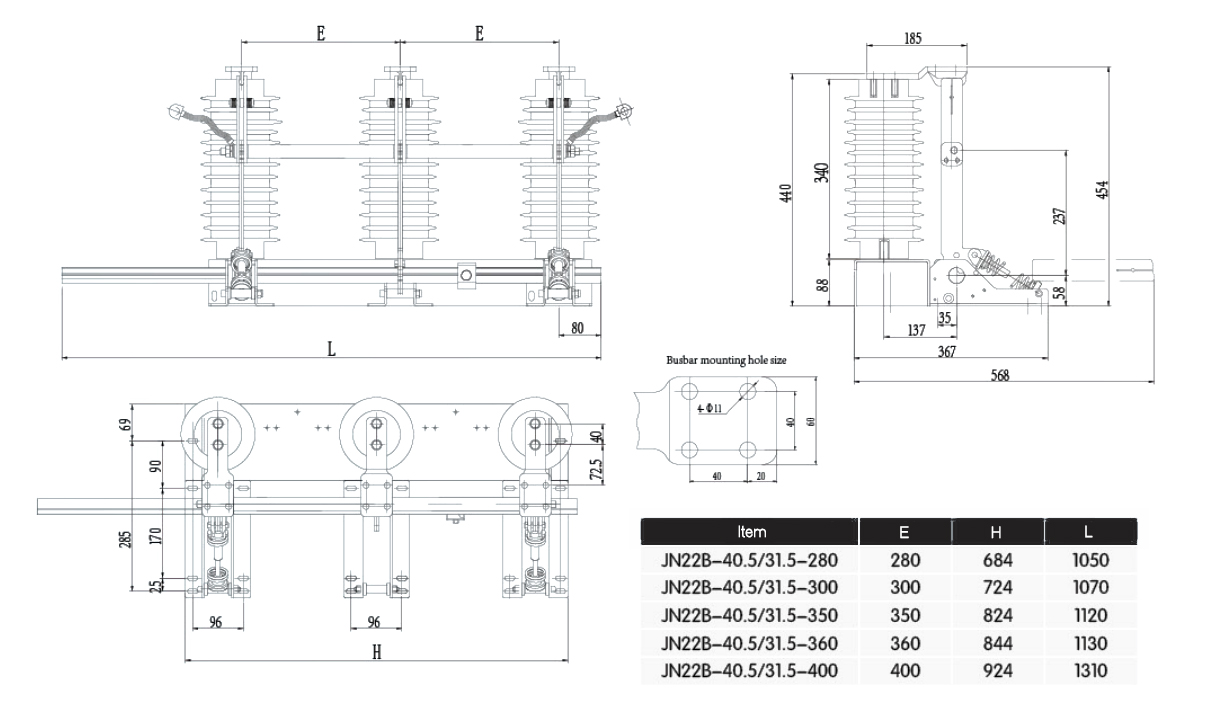

5. Central distance between poles: 280, 300, 350, 400
| Item | Item | data |
| Rated vollage | KV | 35 |
| Maximum voltage | KV | 40.5 |
| Rated short time withstand current | KA | 31.5 |
| Rated short circuit withstand time | S | 4 |
| Rated short circuit making curent | KA | 80 |
| Rated peak withstand current | KA | 80 |
| 1 main power frequency withstand vollage | KV | 95 |
| Lightning mpulse withstand voltage | 185 | |
| Central distance between poles | mm | 300;350;400 |
