- Rated voltage:12kv/24kv
- rated current:630A
- rated short-circuit current:50KA
- mechanical life:10000
- Rated frequency:50Hz
- rated no-load transformer capacity:1250KVA
- rated cable charging breaking current:10A
- rated frequency:50Hz
- Type:Vacuum
- Poles Number:3
- Place of Origin:CN;ZHE
- Brand Name:CNYUFENG

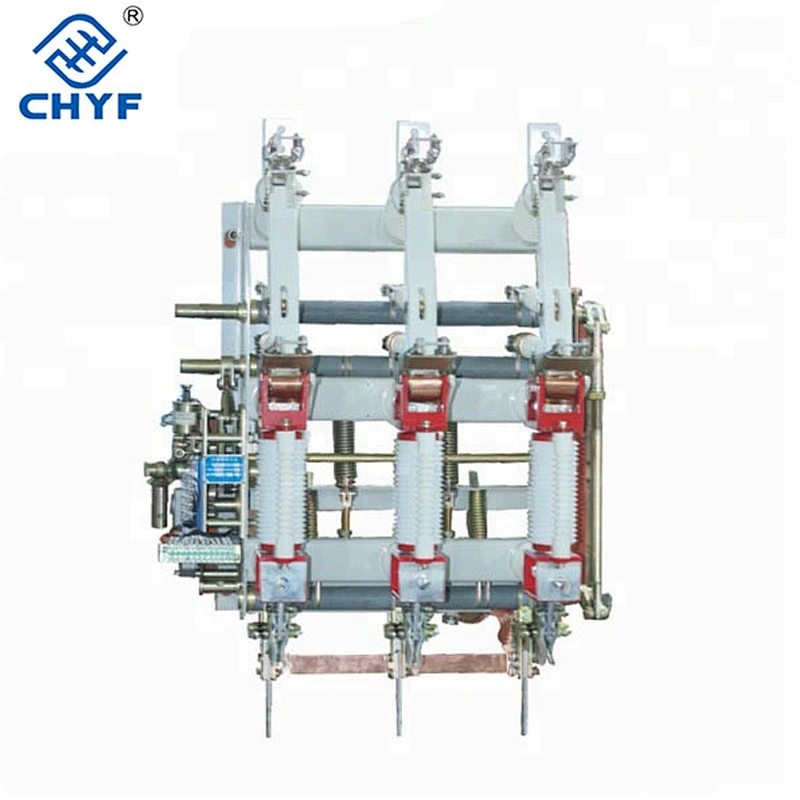

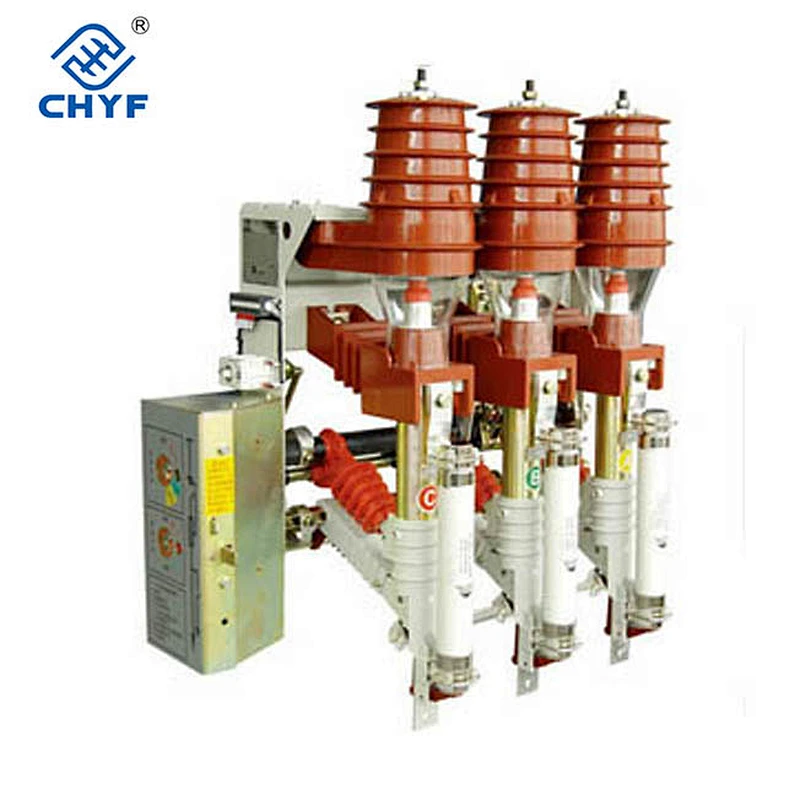

- Model Number:FZN21-12D/T630-20
Product Description
| Items | Unit | Data |
| Rated voltage | KV | 12 |
| Rated frequency | Hz | 50 |
| Rated Current | A | 630 |
| Rated active load breaking current | A | 630 |
| Rated breaking current loop | A | 630 |
| 5% rated active load breaking current | A | 31.5 |
| Rated cable charging breaking current | A | 10 |
| Rated no-load transformer capacity | KVA | 1250KVA |
1 min power frequency withstand voltage: (vacuum fracture, white, relatively / isolation fracture) | KV | 42/48 |
Lightning impulse withstand voltage: (vacuum fracture, white, relatively / isolation fracture) | KV | 75/85 |
| Rated short time withstand current (heat stable) | KA/S | 20/4 |
| Rated short time withstand current (heat stable) | KA | 50 |
| Rated short-circuit current | KA | 50 |
| Rated current breaking times | 10000 | |
| Mechanical life | 10000 | |
| Vacuum interrupter contacts to allow the thickness of wear | m | 2 |
| Manual torque | Nm | ≤200 |
| Mechanical properties of technical parameters | ||
| Items | Unit | Data |
| Contact opening distance | mm | 10±1 |
| Overtravel | mm | 4±0.5 |
| Average closing speed | m/s | 0.6±0.2 |
| Average opening speed (before the opening pitch 6mm) | m/s | 1.1 ±0.2 |
| Three-phase contact points in different period closing | ms | ≤2 |
| Contact closing bounce time | ms | ≤2 |
| Charged body distance between the air and on ground | mm | ≥125 |
| Upper and lower bracket between the main circuit resistance | μ Ω | ≤70 |
