- Warranty:other
- Customized:No
- Type:Electrical Plug
- Grounding:Non-Grounding
- Application:Commercial
- Place of Origin:CN;ZHE
- Certification:ccc
- Brand Name:YUFENG
- Model Number:5YF.573.010
- Rated Voltage:100-250V
- Rated Current:20A

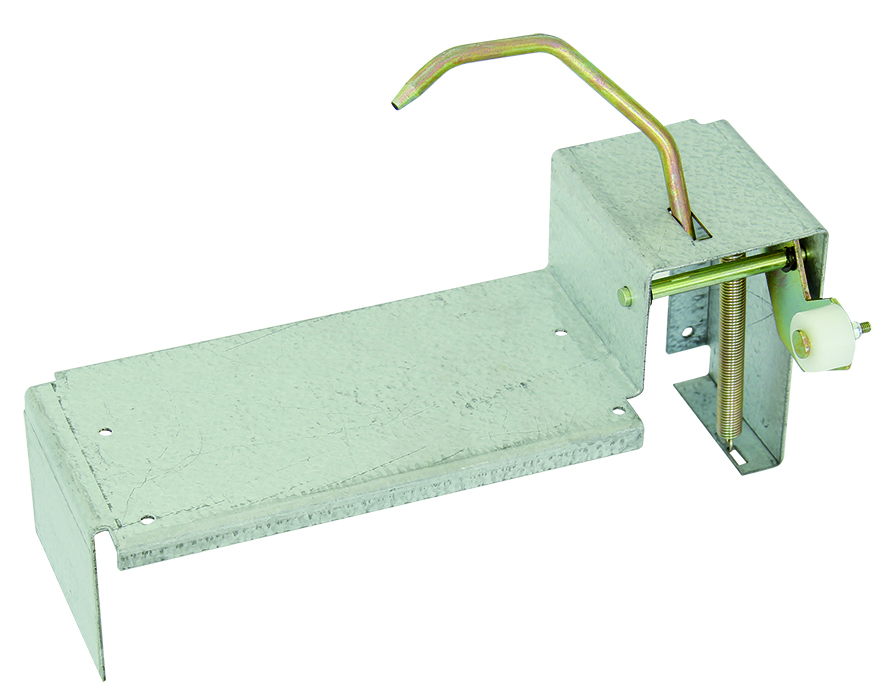

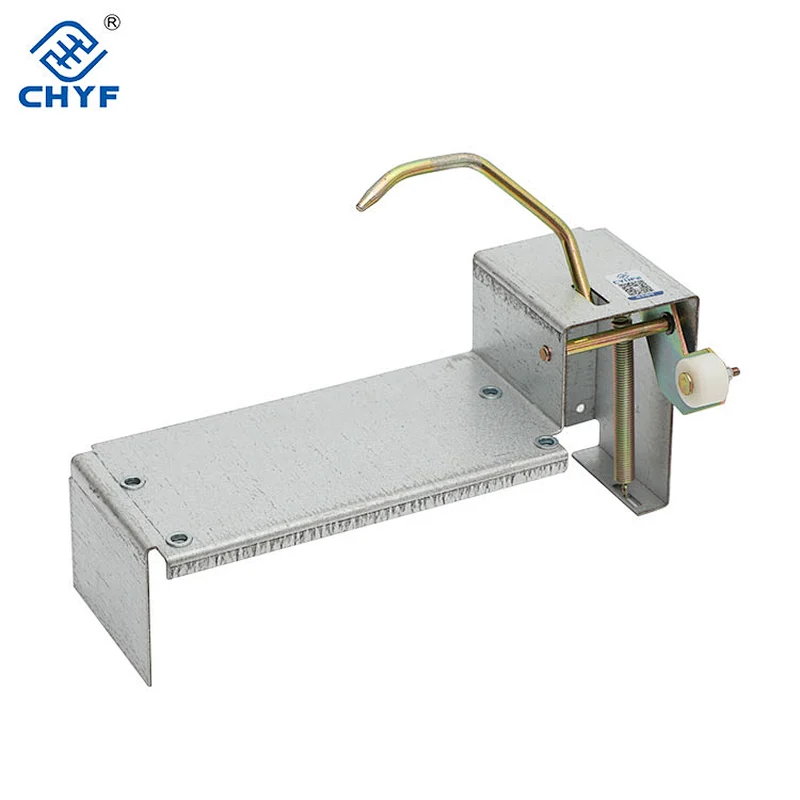

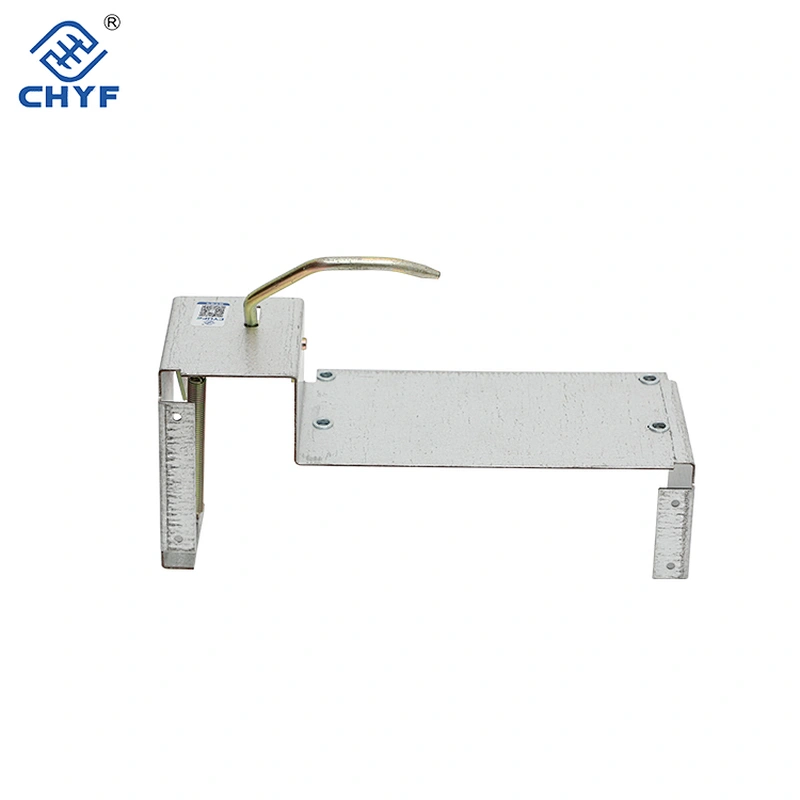

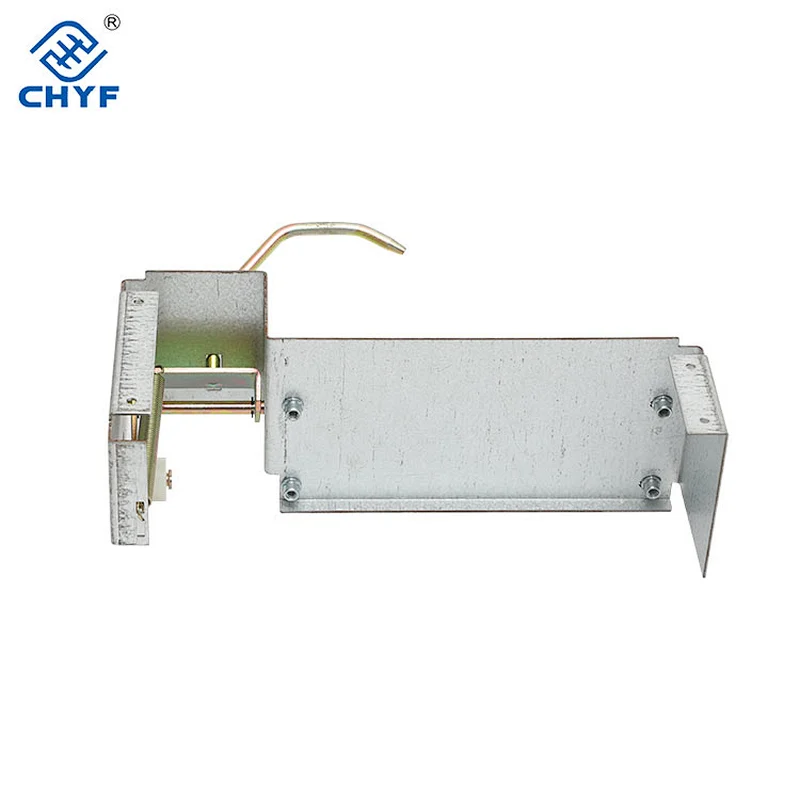

Secondary socket interlocking device 5YF.573.010
Environmental conditions:
1.Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.

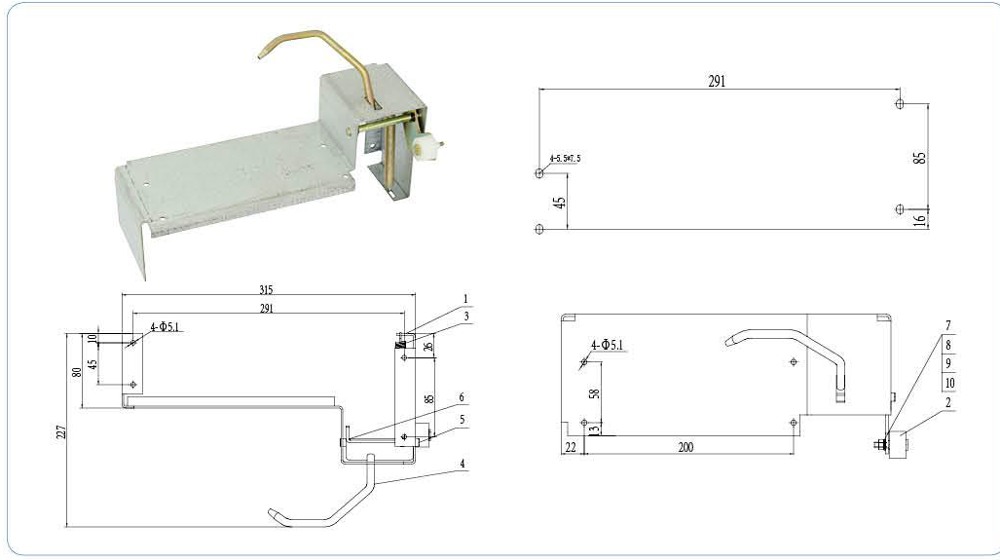

| Secondary socket interlocking device 5YF.573.010 assembly sheet | |||
| NO. | Item | Code | Qtypcs/set |
| 1 | Supporting frame | 8YF.043.017.1~4 | 1 |
| 2 | Wheel | 8YF.224.021 | 1 |
| 3 | Spring | 8YF.288.015 | 1 |
| 4 | Interlcoking Rod Welding | 5YF.174.017 | 1 |
| 5 | Shaft | 8YF.200.020 | 1 |
| 6 | Split gasket | GBB96-858 | 2 |
| 7 | Screw | 8YF.900.010 | 1 |
| 8 | M5NutM5 | GB6170-86 | 1 |
| 9 | tkM 05Gasket 05 | GB93-87 | 1 |
| 10 | D5Gasket (D5 | GB97.1 - 85 | 1 |
| Item | Code | H | Remark |
| 8YF.043.017.1 | 136 | AAatch VD4 circuit breaker(≤ 1250A) handcart and other handcarts with specification and size | |
| support frame | 8YF.043.017.2 | 116 | Match VS1 circuit breaker handcart |
| 8YF.043.017.3 | 126 | Match VD4 circuit breaker (1600A-2500A)hand cart and other handcarts with similar specificationand size | |
| 5YF.043.017.4 | 80 | Match VD4 circuit breaker 3150A handcarts with similar specification and size | |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
