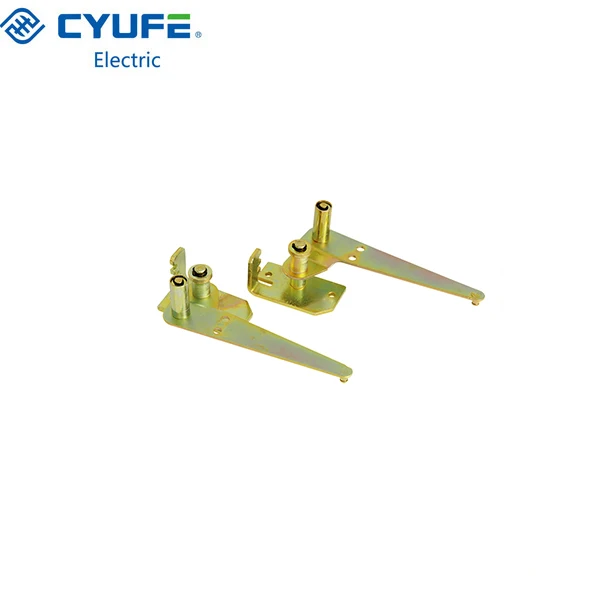

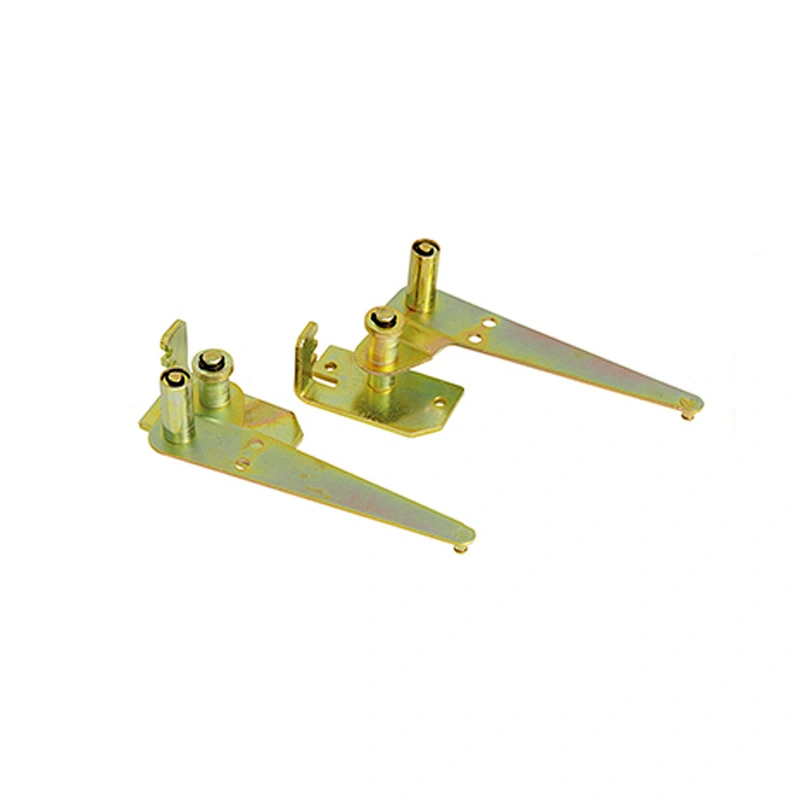

- Product name:shutter mechanism
- application:various kinds of earthing switch
- type:standard type
- Rated Voltage:12kv/24kv
- Material:Iron with surface zincing
- Certificate:ISO9001: 2000
- Place of Origin:CN;ZHE
- Brand Name:YUFENG
- Model Number:5YF.320.012
5YF.320.012 Drawing of valve mechanism
1. Model No. : 5YF.320.012
2. Material: Iron with surface zincing
3. Application: 24KV KYN28A-12(GZS) Indoor HV switchgear fittings
4. Certificate: ISO9001: 2000
5. Reliable installation, achieve five preventation requirement.
6. More than 10 years experience for manufacturing in this line
7. Most competitive prices with best quality, promptly delivery
NO. | Saltern | Code |
Qty |
1 | Right supporting frame | 8YF.123.011 | 1 |
2 | Underskfe connecting Male ossemblyjright) | 5YF.174.004 | 1 |
3 | Supporting plote | 8YF.123.012 | 2 |
4 | lUnderside connecting Plate assemblylleftl | 5YF.174.003 | 1 |
5 | 6Gasket 0)6 | G697.1-85 | 14 |
6 | 6Gasket 06 | G693-87 | 8 |
7 | M6 x 12 Bolt M6 x 2 | GB5783-86 | 8 |
8 | Left supporting rame | 8YF.123.011 | 1 |
9 | Block cord | DK-8 | 4 |
10 | Connecting Wole Welding | 5YF.174.015.1 R VD4.31.5KA (Height 535mm) | 2 |
| 5YF.174.015.2 (5 VD4. 31.5KA (Height 465mm) |
| |
|
| 5YF.174.015.3 R VSlIHeighl 555mm) |
|
11 | Supporting board | 8YF.123.013 | 2 |
12 | Guide bar | 8YF.234.011 | 2 |
13 | Upside shutter | 8YF.320.011 K 800mm | 1 |
| 8YF.320.011.5 E 1000mm |
| |
14 | Indicating card | 8YF.886.013 | 1 |
15 | Indicating card | 8YF.886.012 | 1 |
16 | Limit sleeve | 8YF.210.011 | 2 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
