- Protection level:IP66
- Certificate:ISO9001: 2000
- Place of Origin:CN;ZHE
- Certification:ccc
- Brand Name:China Yufeng
- Model Number:5YF.320.010/1ZS
- Max. Current:no
- Max. Voltage:no
Product Description

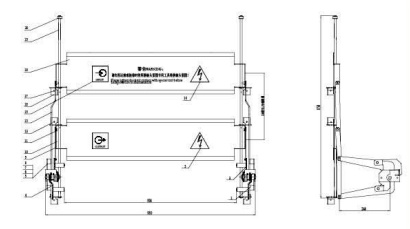

| NO. | Saltern | Code | Qty pcs/set |
| 1 | Right supporting frame | 8YF.123.011 | 1 |
| 2 | HJnderskfe connecting Male ossemblyjright) | 5YF.174.004 | 1 |
| 3 | Supporting plote | 8YF.123.012 | 2 |
| 4 | Underside connecting Plate assemblylleftl | 5YF.174.003 | 1 |
| 5 | 6Gasket | G697.1-85 | 14 |
| 6 | 6Gasket | G693-87 | 8 |
| 7 | M6 x 12 Bolt M6 x 2 | GB5783-86 | 8 |
| 8 | Left supporting rame | 8YF.123.011 | 1 |
| 9 | Block cord | DK-8 | 4 |
| 10 | Connecting Wole Welding | 5YF.174.015.1 R VD4.31.5KA (Height 535mm) | 2 |
| 5YF.174.015.2 (5 VD4. 31.5KA (Height 465mm) | |||
| 5YF.174.015.3 R VSlIHeighl 555mm) | |||
| 11 | Supporting board | 8YF.123.013 | 2 |
| 12 | Guide bar | 8YF.234.011 | 2 |
| 13 | Upside shutter | 8YF.320.011 K 800mm For width 800mm coblnell | 1 |
| 8YF.320.011.5 E 1000mm (For wldlhlOOOmnuobinet) | |||
| 14 | Indicating card | 8YF.886.013 | 1 |
| 15 | Indicating card | 8YF.886.012 | 1 |
| 16 | Limit sleeve | 8YF.210.011 | 2 |
| 1 | Righ supporting frame | 8YF.123.276 | 1 |
| 2 | Right connecting plate | 5YF.235.012 | 1 |
| 3 | Indlcoting cord | 8YF.866.014 | 1 |
| 4 | Left connecting board | 5YF.235.013 | 1 |
| 5 | Gasket | GB97.1-85 | 16 |
| 6 | Elastic Gasket | GB93-87 | 10 |
| 7 | M6X12BoltM6xl2 | GB5783-86 | 10 |
| 8 | Left supporting frame | 8YF.13.275 | 1 |
| 9 | Connecting Plate Welding | 5YF.174.281 | 2 |
| 10 | Underside shutter | 5YF.320.273 | 1 |
| 8YF.320.273.1(200mm shorter) | |||
| 8YF.320_273.2 1 0000mm insulolionl | |||
| 11 | Block card | DK-10 | 8 |
| 12 | Supporting frome | 8YF.123.278 | 3 |
| 13 | Connecting Plate Welding | 5YF.174.282 | 2 |
| 14 | Indicating cord | 5YF.866.012 | 1 |
| 15 | Indicating card | 5YF.866.013 | 2 |
| 16 | Supporting frame | 5YF.123.277 | 3 |
| 17 | M6Nut M6 | GB6170-86 | 6 |
| 18 | Upside shutter | 8YF.320.274 | 1 |
| 8YF.320.274.1200mm shorlerl | |||
| 8YF.320.274.211000 insulationl | |||
| 19 | Guide bar | 8YF.234.272 | 2 |
| 20 | Limit sleeve | 8YF.210.011 | 2 |
