- Rated voltage:12KV
- Rated current:630A
- Rated short citcuit breaking current:20KA
- Ratede shotr-circuit close current:50KA
- Rated peak withstand current:50KA
- 4S Rated withstand current:20KA
- Rated operating sequence:O-0.3S-CO-180S-CO
- Mechanical life:20000
- Contact stroke:11±1
- Closing time:≤0.1
- Type:Vacuum
- Poles Number:3
- Rated Frequency:Other
- Place of Origin:CN;ZHE
- Brand Name:Yufeng
- Model Number:VS1(ZN63)
- Rated Voltage:12KV

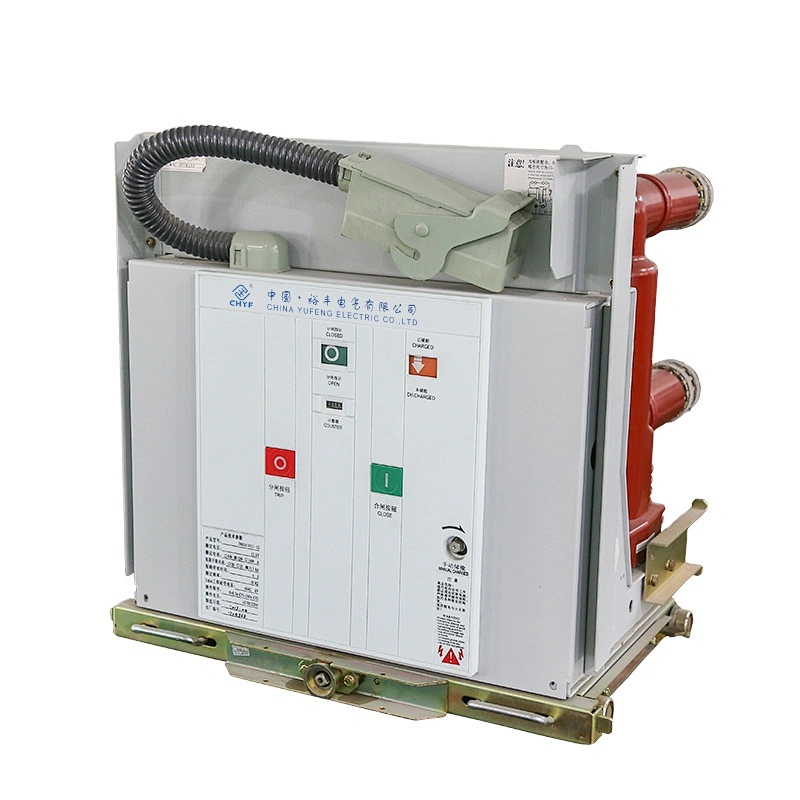

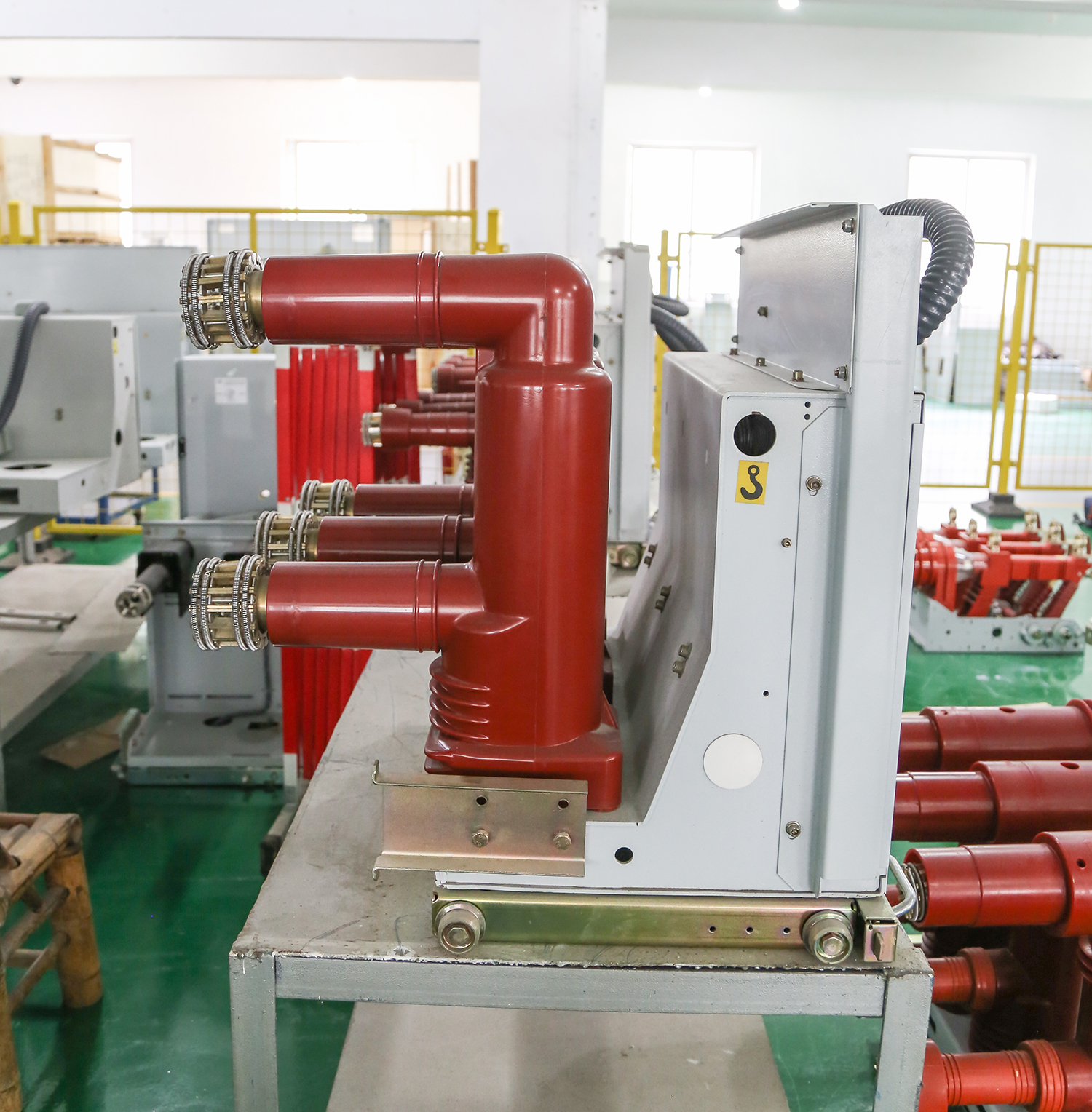

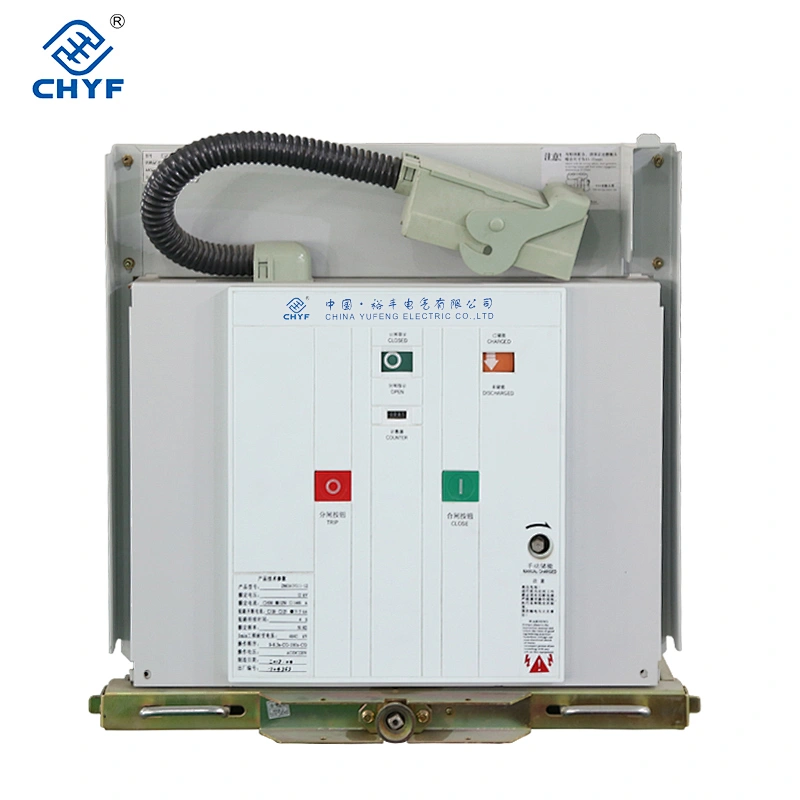

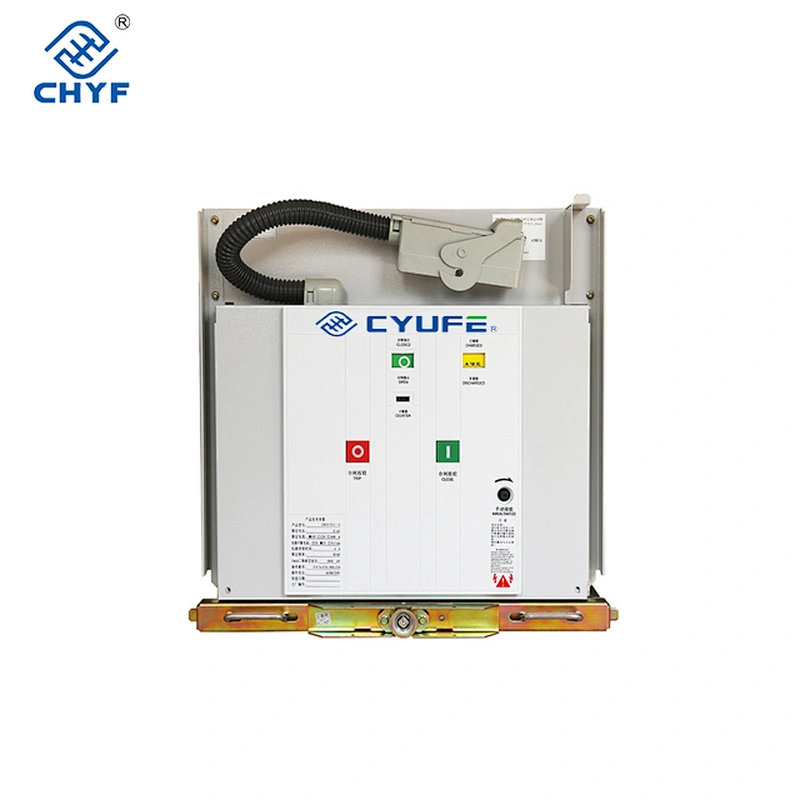

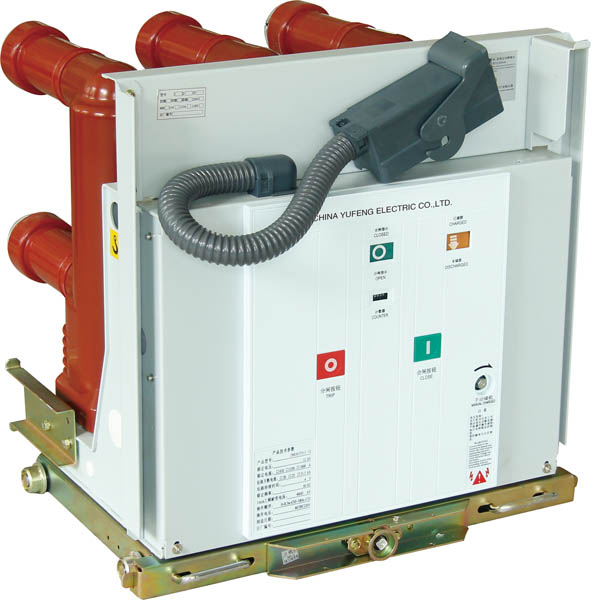

ZN63(VS1)-12 medium voltage vacuum circuit breaker
Adopt solid insulation structure, use of advanced solid epoxy sealing technology, the first time, the vacuum interrupter. A leading electrical circuit. insulation and other support to become an integrated combination of solid seal pole. Successfully from a fundamental solution of the vacuum breaker gas environment, tolerance issues, make it more broad. Integrated solid-pole closure of the fluent use of a self-ventilation technology, cleverly solved the structure of solid insulation caused by heat dissipation.
Environmental conditions:
1.Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration
| Item | Description | Unit | Data | |
| 1 | Rated voltage | KV | 12 | |
| 2 | Max. voltage | KV | 12 | |
| 3 | Rated current | A | 630/1250/2000A4000 | |
| 4 | Rated short circuit breaking current | KA | 20/25/31.5/40 | |
| 5 | Rated short circuit making current | KA | 50/63/80/100 | |
| 6 | Rated peak withstand current | KA | 50/63/80/100 | |
| 7 | 4S Rated withstand current | KA | 20/25/31.5/40 | |
| 8 | Rated insulation level | Power frequency voltage(when losing a circuit) | KV | Dreaker 42 |
| Impulse withstand voltage(when losing a circuit) | Dreaker 75 | |||
| 9 | Rated operating sequence | OC-0.3s-CO-180S-CO | ||
| 10 | Mechanical life | Times | 20000 | |
| 11 | Rated short circuit current breaking time | Times | 50 | |
| 12 | Rated close brake voltage of operating machnie | V | 110,220 | |
| 13 | Rated break brake voltage of operating machnie | V | 110,220 | |
| 14 | Contact stroke | mm | 11±1 | |
| 15 | Exceed range(the compress length of contact sping) | mm | 3.5±0.5 | |
| 16 | Different period of three-phase break and close break | ms | ≤2 | |
| 17 | The jump time of contact close break | ms | ≤2 | |
| 18 | Average break speed | m/s | 0.9~1.2 | |
| 19 | Average closing speed | m/s | 0.5~0.8 | |
| 20 | Opening time | Ubder max.operating voltage | S | ≤0.05 |
| Under min.operating voltage | ≤0.08 | |||
| 21 | Closing time | s | 0.1 | |
| 22 | Resistance of each phase main loop | μΩ | ≤40 | |
| 23 | Contacts limit ersion | mm | 3 | |
