- Protection level:IP66
- Certificate:ISO9001: 2000
- Whether the smart:No
- Place of Origin:CN;ZHE
- Certification:ce
- Brand Name:China Yufeng
- Model Number:5YF.363.010.6
- Max. Current:63A
- Max. Voltage:10kv
Earthing switch operating mechanism bevel gear details As belows:
1. Model No. : 5YF.363.010.6
2. Material: Iron with surface zincing
3. Application: 24KV KYN28A(GZS1) Indoor HV switchgear and circuit breaker
4. Certificate: ISO9001: 2000
5. Reliable installation, achieve five preventation requirement.
6. More than 10 years experience for manufacturing in this line
7. Most competitive prices with best quality, promptly delivery

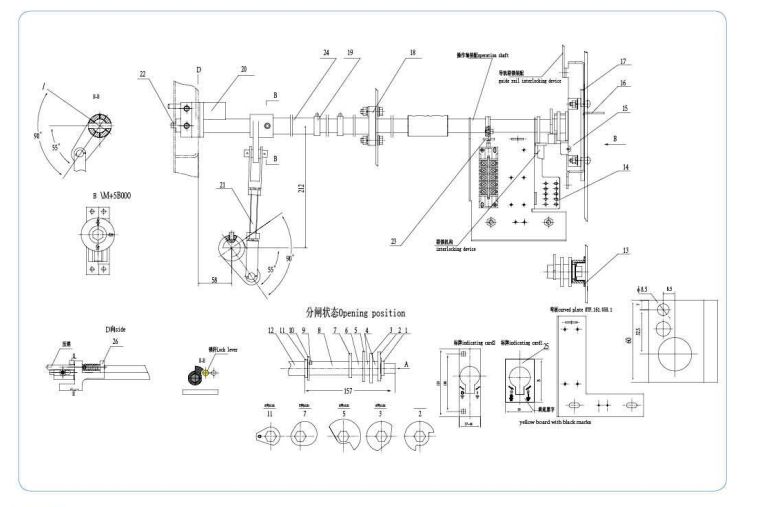

| NO. | Item | Code | Qtypcs/set |
| 1 | Bearing | 8YF.263.011 | 1 |
| 2 | Sector plate | 8YF.192.010 | 1 |
| 3 | Sector plate | 8YF.192.011 | 1 |
| 4 | Shaft sleeve | 8YF.210.014.1 | 2 |
| 5 | Sector plate | 8YF.151.041 | 1 |
| 6 | Shaft sleeve | 8YF.211.061 | 1 |
| 7 | Sector plate | 8YF.151.039 | 1 |
| 8 | Shaft sleeve | 8YF.211.062 | 1 |
| 9 | M5*12 Screw | GB70-85 | 1 |
| 10 | Sector plate | 8YF.151.042 | 1 |
| n | Sector plate | 8YF.151.043 | 1 |
| 12 | Operating shaft (The length of shaft is decided by the depth of cabinet) | 8YF.200.010.1-3 | 1 |
| 13 | Cover | 8YF.017.011 | 1 |
| 14 | Curved plate(choose} | 8YF.161.058 | 1 |
| 15 | Suppoi1(aluminum / ironl | 8YF.043.022 | 1 |
| 16 | Curved plate(choosel | 8YF.161.059 | 1 |
| 17 | Slider | 8YF.143.010 | 2 |
| 18 | Shaft sleeve | 8YF.211.058 | 1 |
| 19 | Limit sleeve | 8YF.211.057 | 3 |
| 20 | Support | 8YF.043.019 | 1 |
| 21 | Connecting rod Assembly | 8YF.233.030.1_3 | 1 |
| 22 | push plunger | 8YF.1501.3102 | 1 |
| 23 | Tooth flapper | 8YF.151.044 | 1 |
| 24 | Shaft sleeve | 8YF.211.060 | 1 |
| 25 | Indicating card | 8YF.860.010 | 1 |
| 26 | interlock shaft | 8YF.1501.3101 | 1 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
