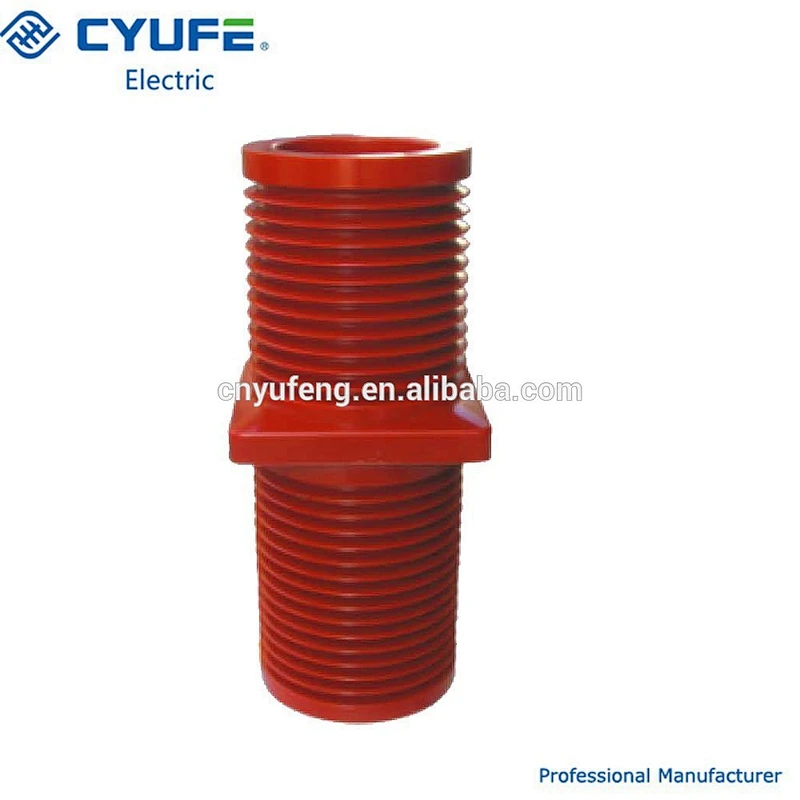

HIGH VOLTAGE 40.5KV Epoxy resin insulator bushing

 HIGH VOLTAGE 40.5KV Epoxy resin insulator bushing TG-40.5KV-180x180x550

Material: Epoxy Resin

Rated Voltage: 40.5KV

Size: 180x180x550MM

Technology:  The Automatic Pressure Gelation (APG)

Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear

Operation Condition

1. Altitude: ≤ 1000m;

2. Ambient temperature: +40~-10º C;

3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;

4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.

Technical Requirement

1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV;

2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in rated current condition.

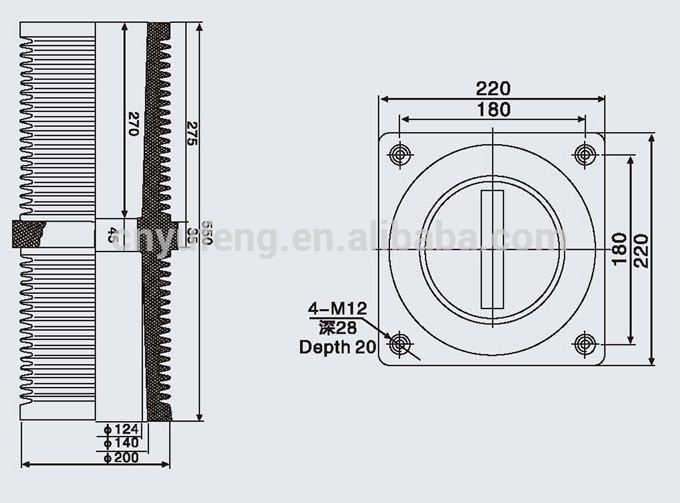

(Please check below drawings for more infomation:)

 Standard exporting package with plywood or as per required

•  Samples will be provided if needed
• Professional technical guidance
• Long-term after-sale service
