- color:red
- usage:high voltage switchgear and earthing switch
- rated voltage:220V
- Usage:Pressure Sensor
- Theory:Current Sensor
- Output:Switching Transducer
- Type:Insulator
- Material:Epoxy Resin
- Application:High Voltage
- Place of Origin:CN;ZHE
- Brand Name:YUFENG
- Model Number:85X140
- Rated Voltage:220V
- Tensile Strength:56

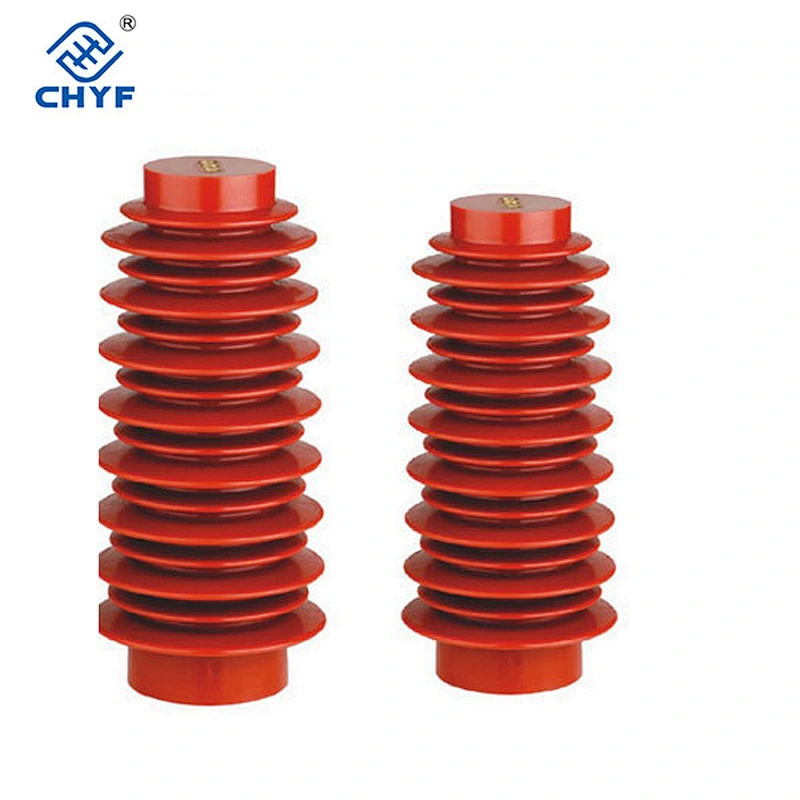

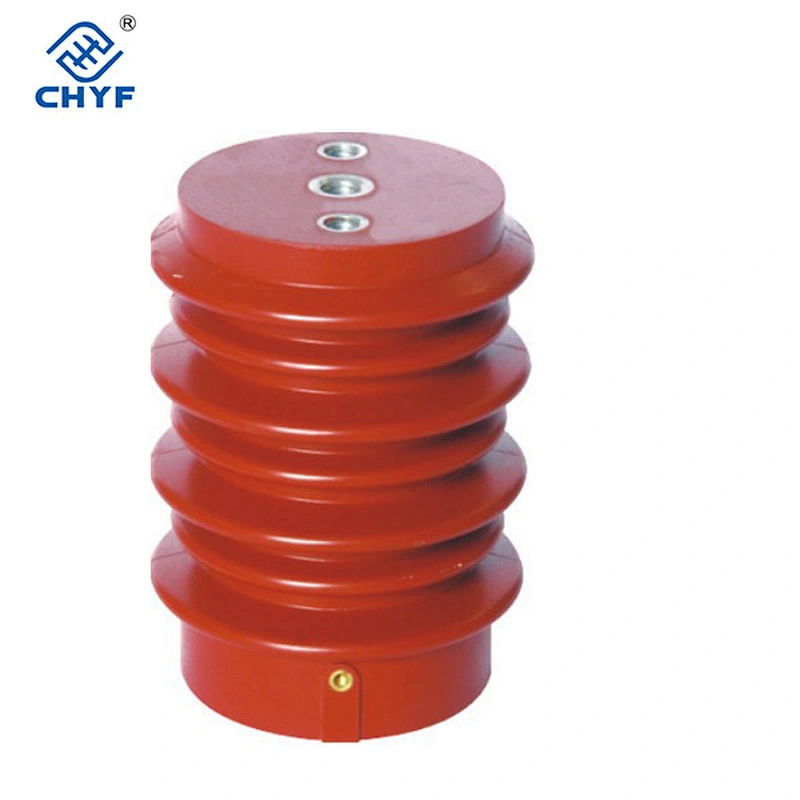

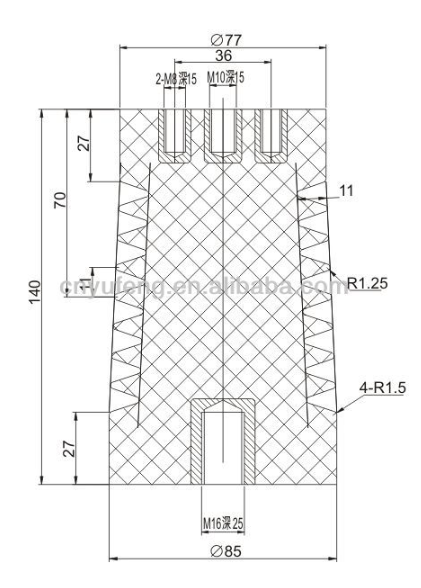

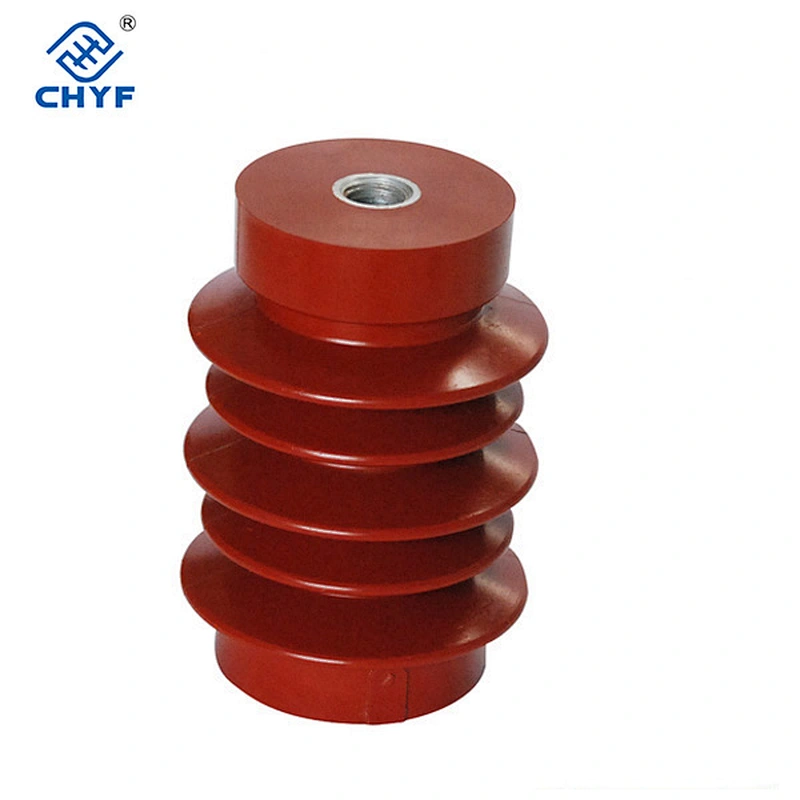

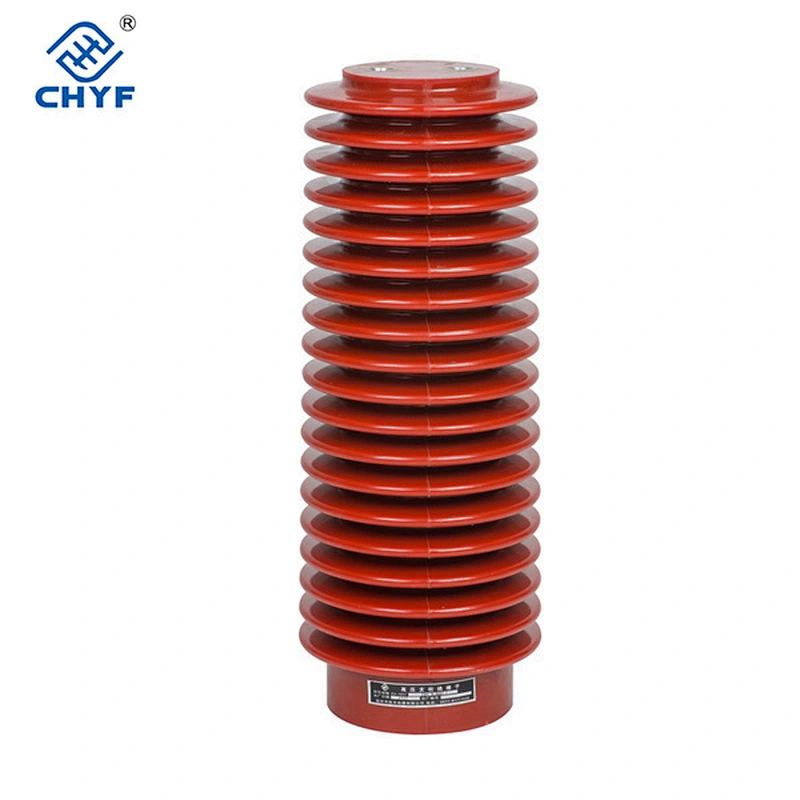

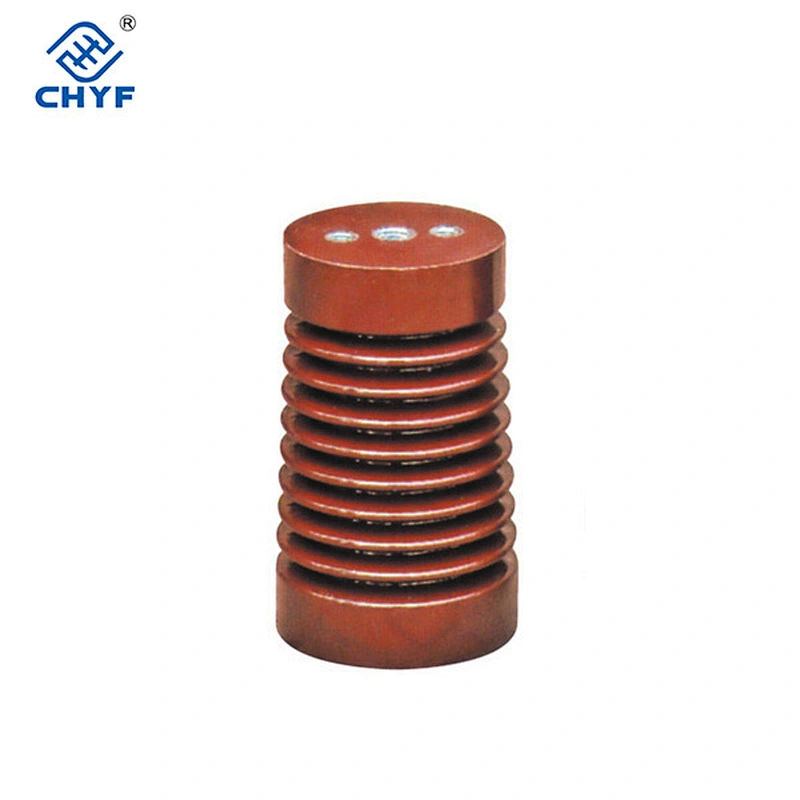

High voltage Post insulator from china details listed as belows:
Material: Epoxy Resin
Rated Voltage: 24KV
Technology: The Automatic Pressure Gelation (APG)
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear![AIH{U`H)O]$E6P%J5ZL1AHJ](https://icbu-1306369054.cos.ap-shanghai.myqcloud.com/describe/img/17380246016/1622018110718H58cb7c3995054f5ebd0c356176b2c157K.png?imageMogr2/format/webp/auto-orient)
Operation Condition
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10º C;
3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;
4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.
Technical Requirement
1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV;
2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in rated current condition.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
