- Rated voltage:40.5KV
- Rated current:2000A
- maximum working voltage:630KA
- Rated short circuit breaking current:34.5KA
- Rated short close current:80KA
- Mechanical Life:10000 Times
- Dynamic current(peak):63,80
- Rated peak withstand current:63,80
- Single capacitor bank breaking current:630
- Rated operating sequence:o-0.3s-co-180s-co
- Type:Vacuum
- Poles Number:3
- Place of Origin:CN;ZHE
- Brand Name:YUFENG
- Model Number:ZN85-40.5
Specifications

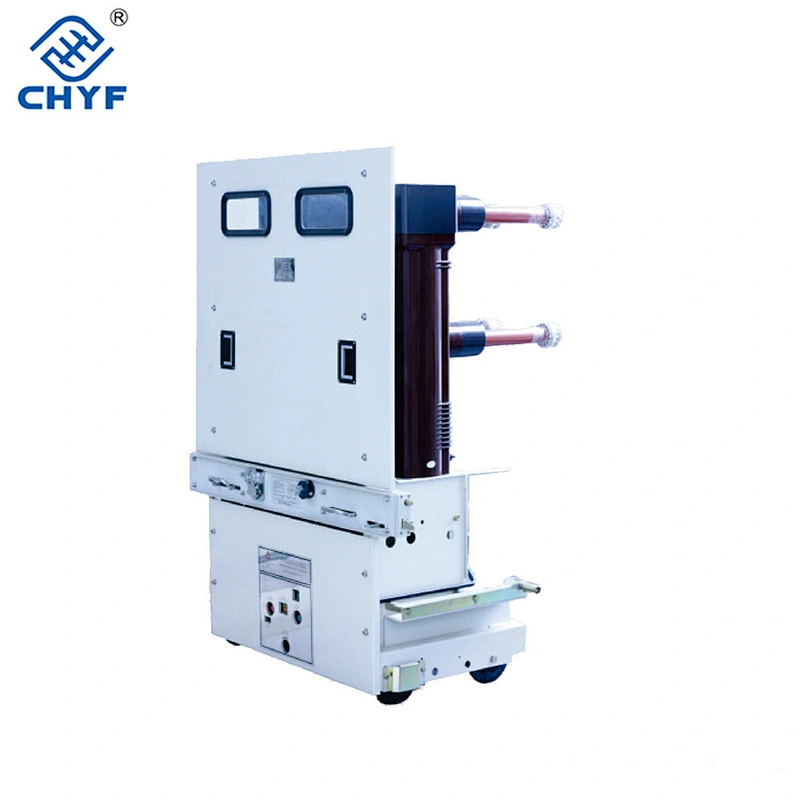

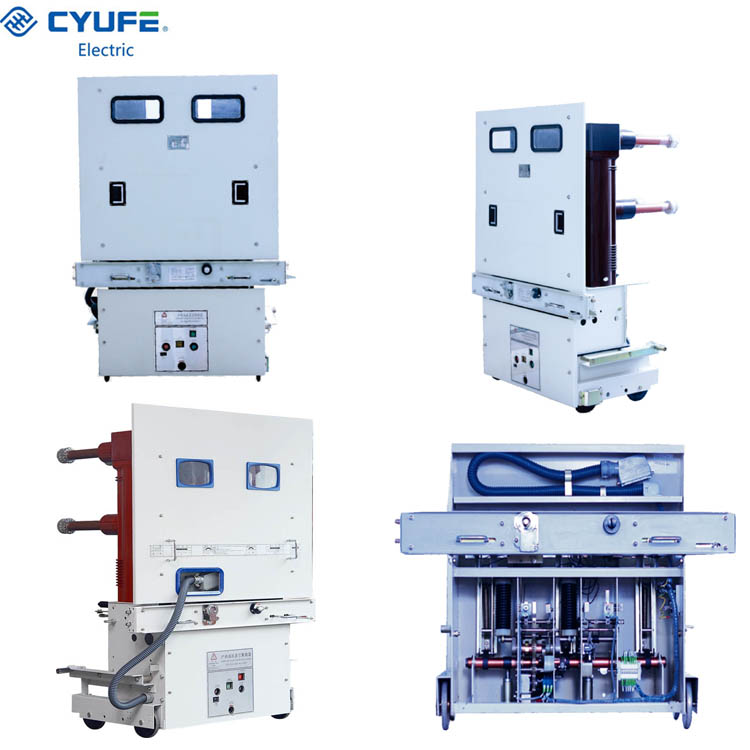

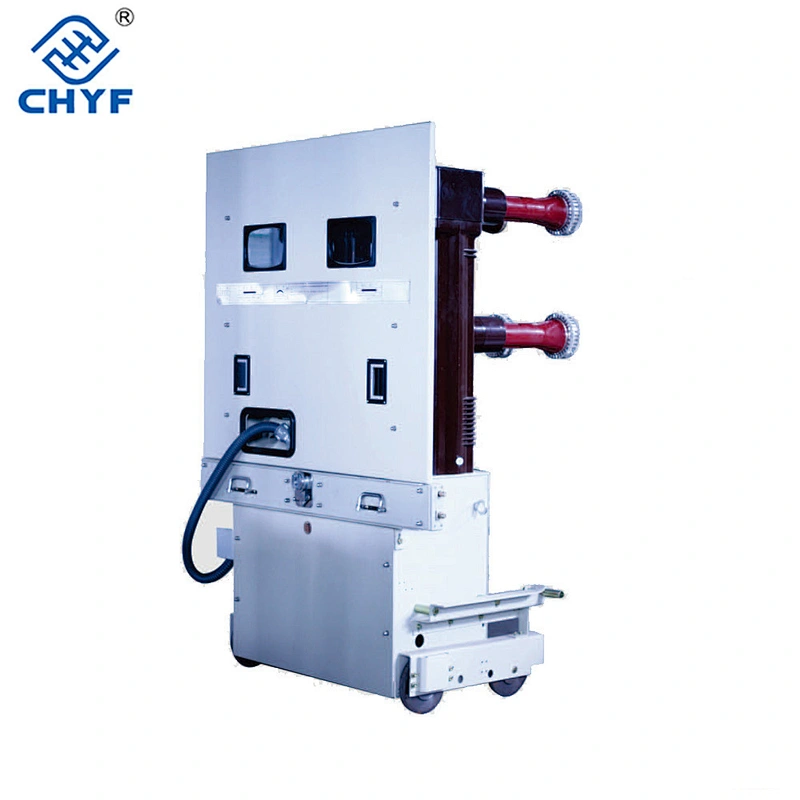

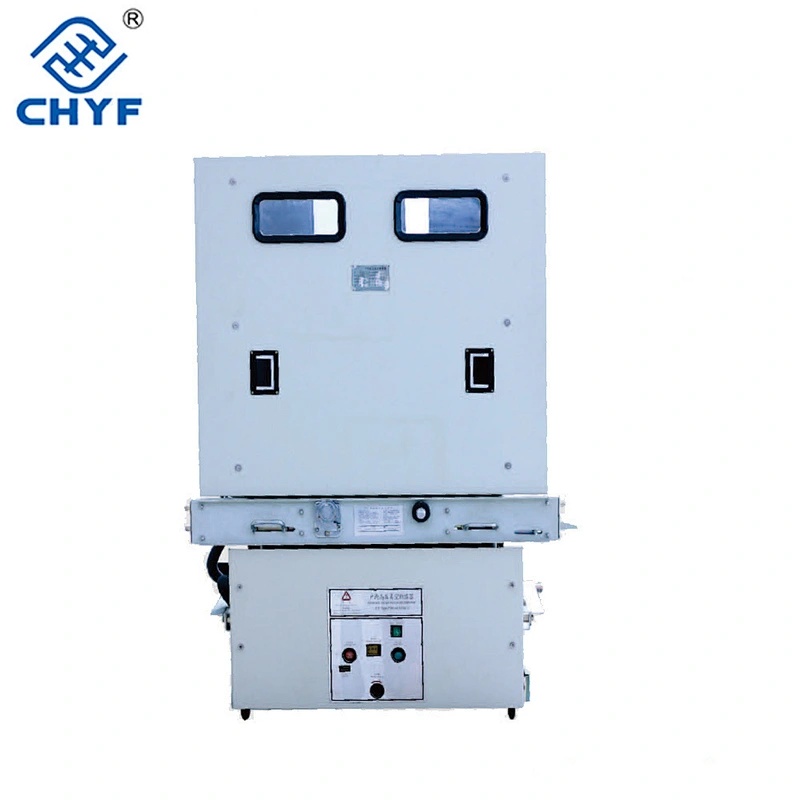

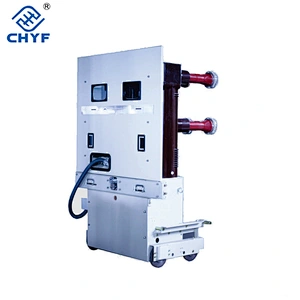

ZN85-40.5 medium voltage vacuum circuit breaker
1.easy installment and operation
2.quality assurace
3.17 years manufacturer
ZN85-40.5 35kv vacuum circuit breaker
Adopt solid insulation structure, use of advanced solid epoxy sealing technology, the first time, the vacuum interrupter. A leading electrical circuit. insulation and other support to become an integrated combination of solid seal pole. Successfully from a fundamental solution of the vacuum breaker gas environment, tolerance issues, make it more broad. Integrated solid-pole closure of the fluent use of a self-ventilation technology, cleverly solved the structure of solid insulation caused by heat dissipation.
Environmental conditions:
1.Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
| Item | Description | Unit | Data | |
| 1 | Rated voltage | KV | 40.5 | |
| 2 | Rated current | A | 1250/1600/2000 | |
| 3 | Rated frequency | HZ | 50 | |
| 4 | Rated short-circuit breaking current | KA | 25,31.5 | |
| 5 | Dynamic current(peak) | KA | 63,80 | |
| 6 | 4s rated short-circuit withstand voltage | KA | 25,31.5 | |
| 7 | Rated peak withstand current | KA | 63,80 | |
| 8 | 1min power frequency withstand voltage | KV | 95 | |
| 9 | Lightning impulse withstand voltage (peak) | KV | 185 | |
| 10 | Rated operating sequence | o-0.3s-co-180s-co | ||
| 11 | Rated short-circuit breaking current time | times | 20 | |
| 12 | Mechanical life | times | 10000 | |
| 13 | breaking number | ms | ≤80 | |
| 14 | Single capacitor bank breaking current | A | 630 | |
| 15 | Back to back capacitor bank breaking current | A | 400 | |
| 16 | Rated operating voltage | V | ||
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
