- Rated voltage:24KV
- Rated current:630A-1250A
- Rated short circuit breaking current:20KA
- Rated short circuit current:50KA
- 4S rated short-circuit withstand current:20KA
- Mechanical Life:20000 Times
- current breaking times:50
- closing time:0.1
- contact opening distance:11+1
- average closing speed:0.5M/S
- Type:Vacuum
- Poles Number:3
- Place of Origin:CN;ZHE
- Brand Name:YUFENG
- Model Number:ZN63(VS1)24KV

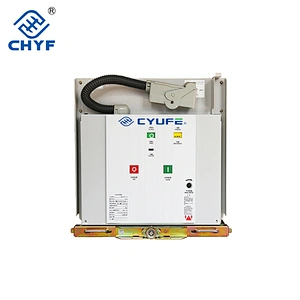

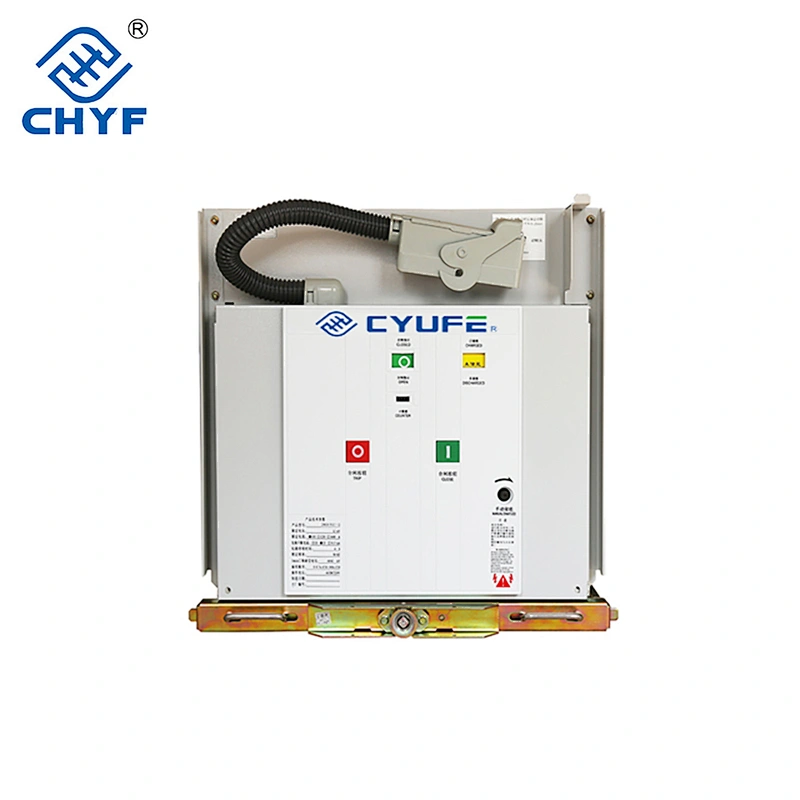

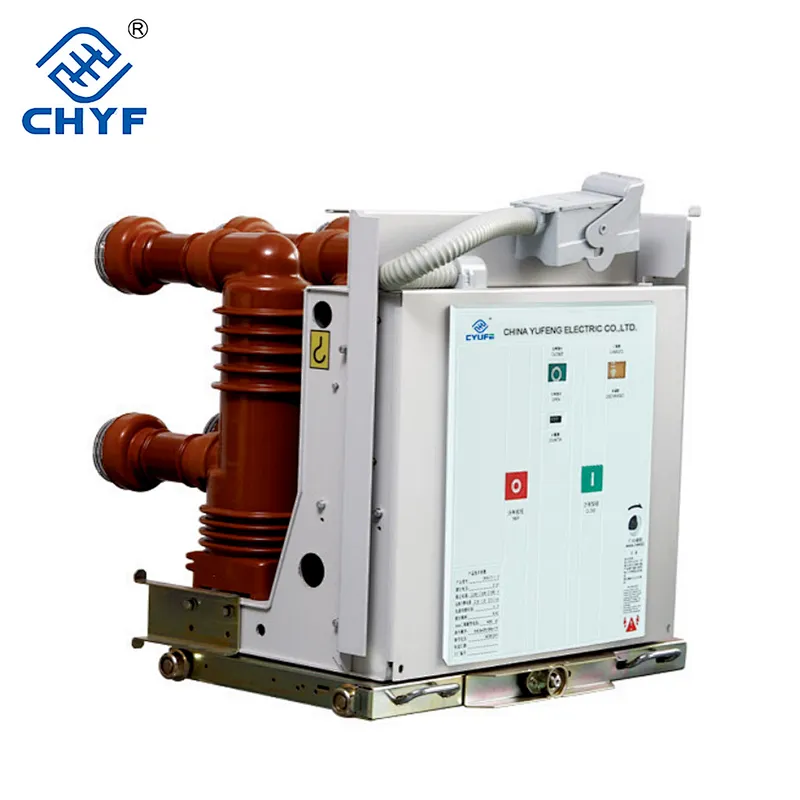

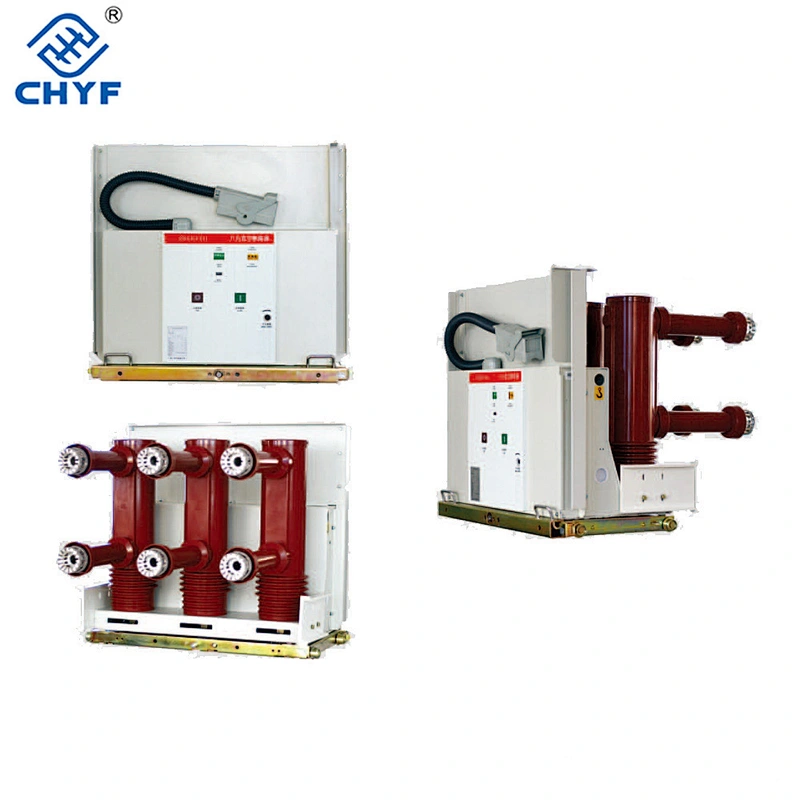

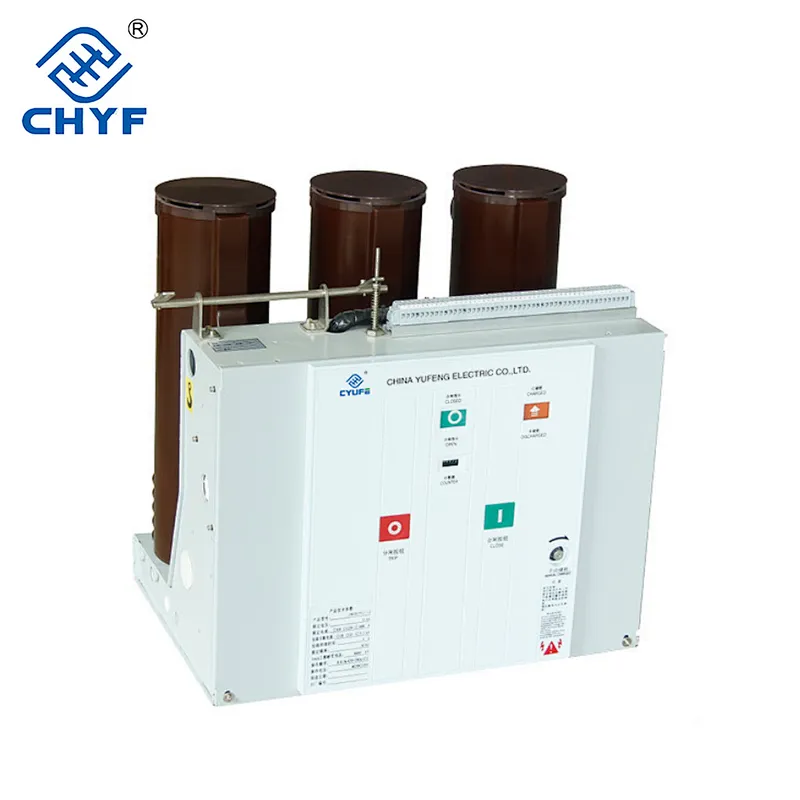

ZN63(VS1)24KV withdrawable vacuum circuit breaker
1.Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
Adopt solid insulation structure, use of advanced solid epoxy sealing technology, the first time, the vacuum interrupter. A leading electrical circuit. insulation and other support to become an integrated combination of solid seal pole. Successfully from a fundamental solution of the vacuum breaker gas environment, tolerance issues, make it more broad. Integrated solid-pole closure of the fluent use of a self-ventilation technology, cleverly solved the structure of solid insulation caused by heat dissipation.

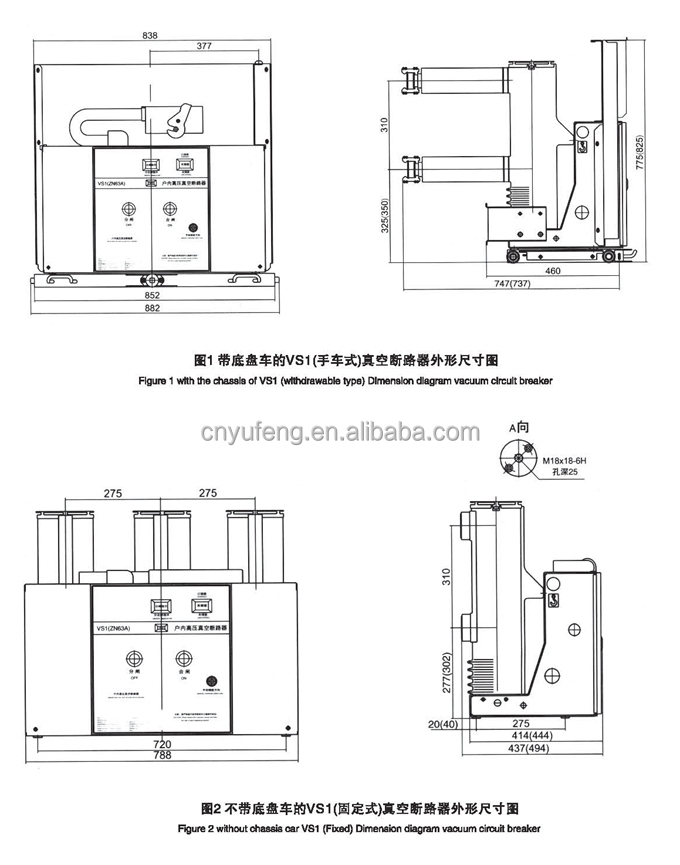

(Technical Drawings)
| NO. | Item | Unit | Data | ||
| 1 | Rated voltage | KV | 24 | ||
| 2 | Rated frequency | Hz | 50 | ||
| 3 | Rated current | A | 630 | 1250 | 1600 |
| 4 | Rated short circuit breaking current | KV | 20 | 25 | 31.5 |
| 5 | Rated short circuit closing current(peak) | KV | 50 | 63 | 80 |
| 6 | Rated short circuit duration | s | 4 | ||
| 7 | Rated short circuit current breaking time | Times | 20 | ||
| 8 | Rated operating sequence | 0~0.3s-CO-180s-CO | |||
| 9 | Rated lightning impulse withstand voltage | KV | 125 | ||
| 10 | Rated short-time power frequency voltage(1 min) | KV | 65 | ||
| 11 | Opening time | ms | ≤100 | ||
| 12 | Closing time | ms | ≤50 | ||
| 13 | Mechanical life | Times | 20000 | ||
| 14 | Rated energy storage and operating voltage | V | ~220/110 | ||
| 15 | Break time | ms | ≤65 | ||
| 16 | Energy storage time | s | ≤10 | ||
