- color:red
- usage:high voltage switchgear and earthing switch
- Place of Origin:CN;ZHE
- Brand Name:YUFENG

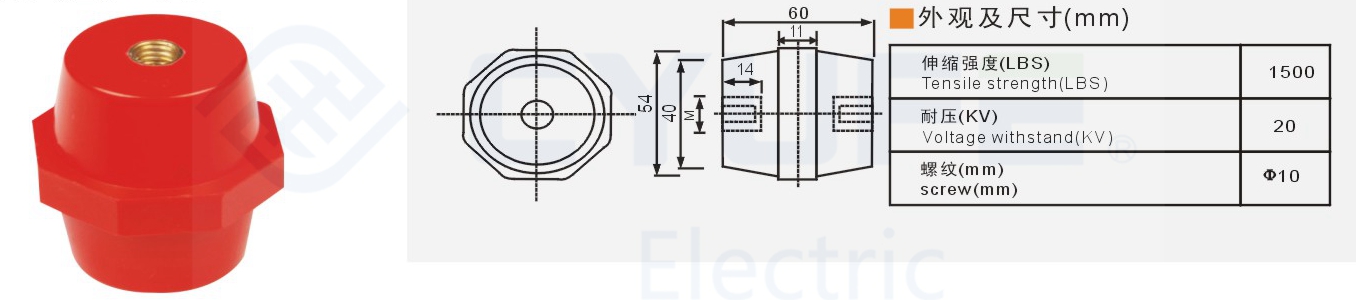

- Model Number:YFM120X60

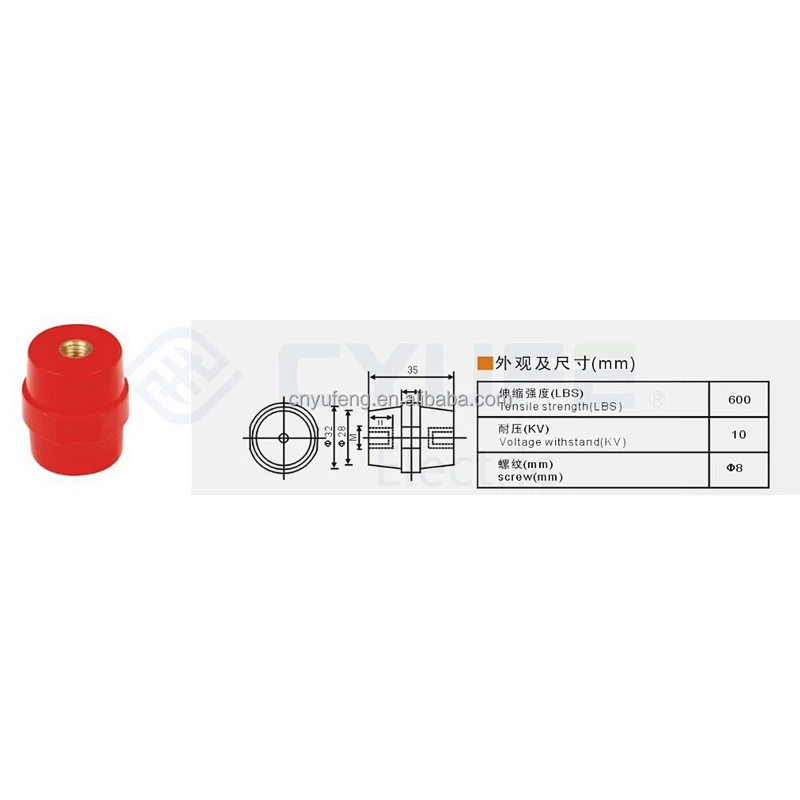

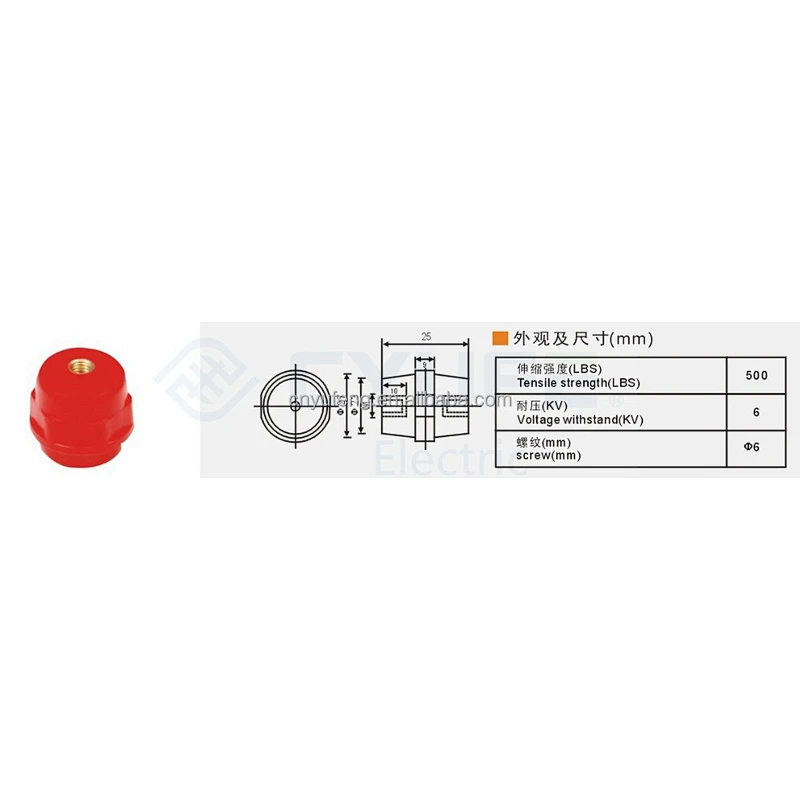

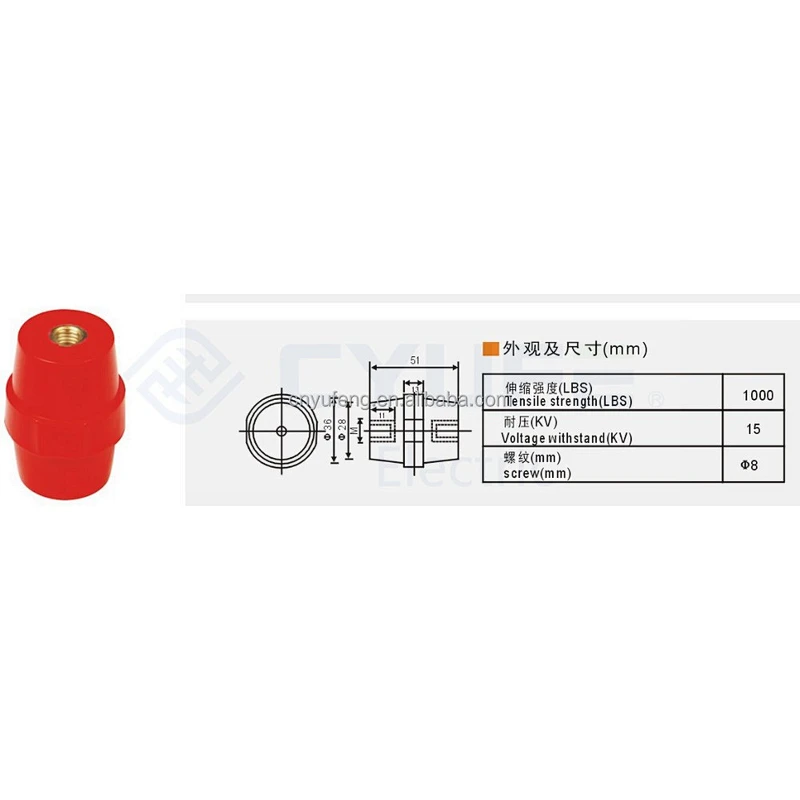

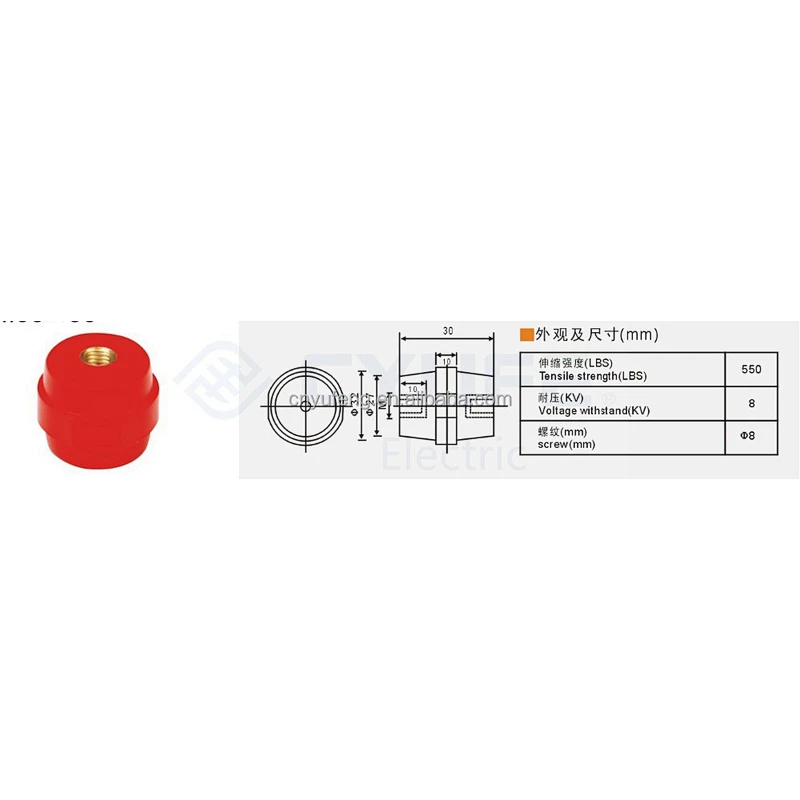

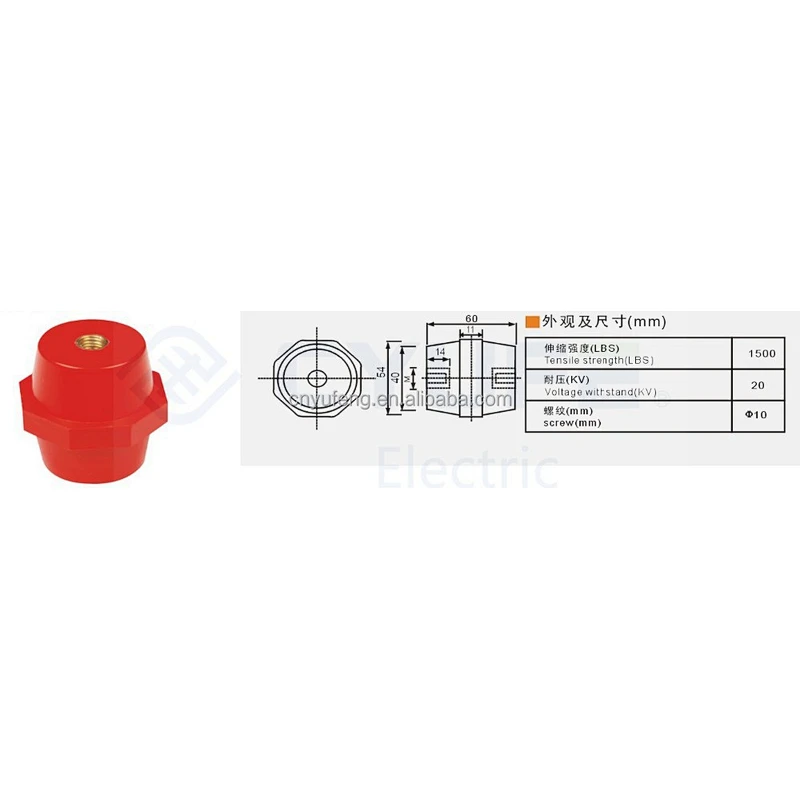

Low voltage bus bar insulator details listed as belows:
Material: BMC ( bulk moulding compounds )
Rated Voltage: 6-12KV
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear
Operation Condition
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10º C;
3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;
4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.
Technical Requirement
1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV;
2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in rated current condition.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
