- color:red
- usage:high voltage switchgear and earthing switch
- Place of Origin:CN;ZHE
- Brand Name:YUFENG

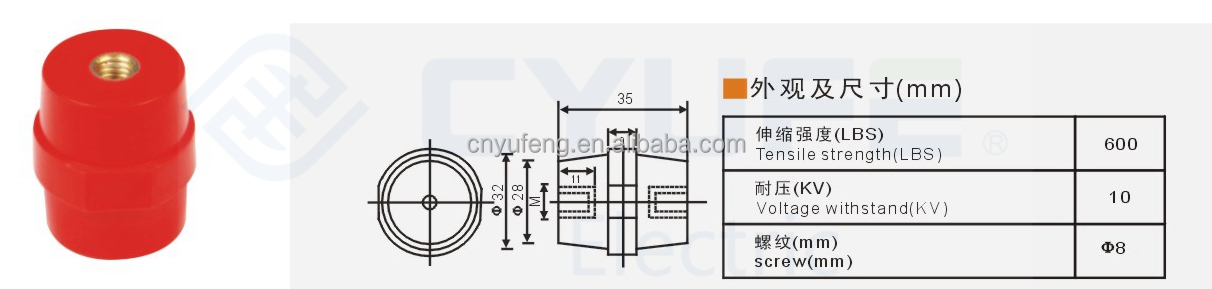

- Model Number:YSM35

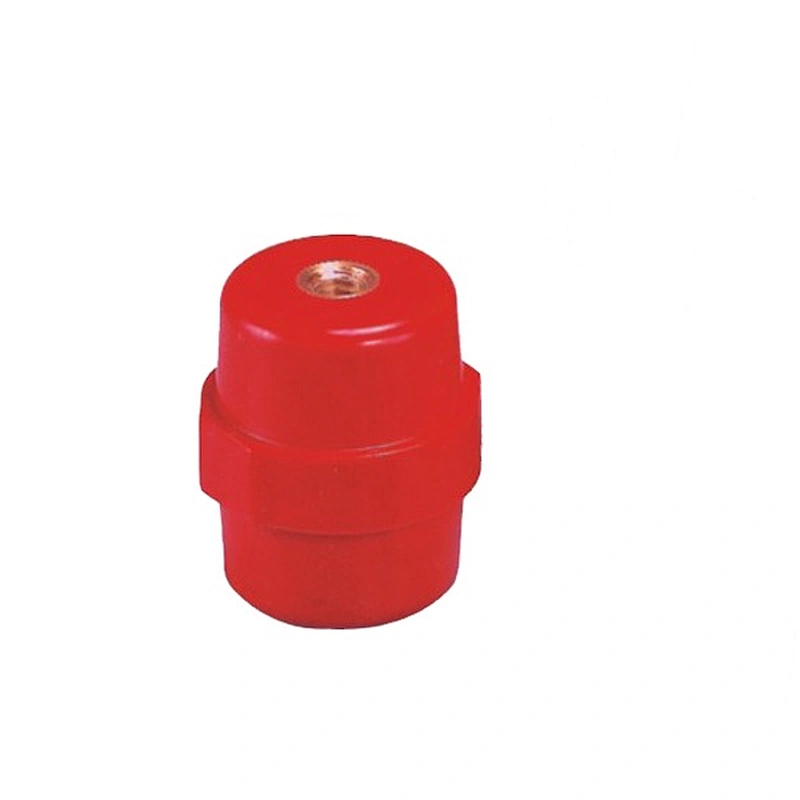

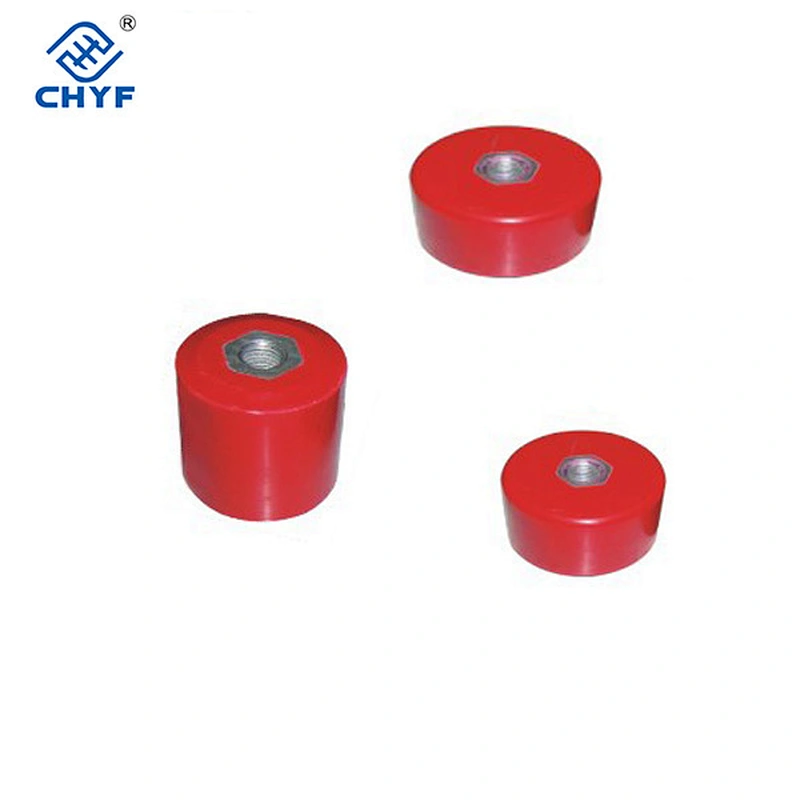

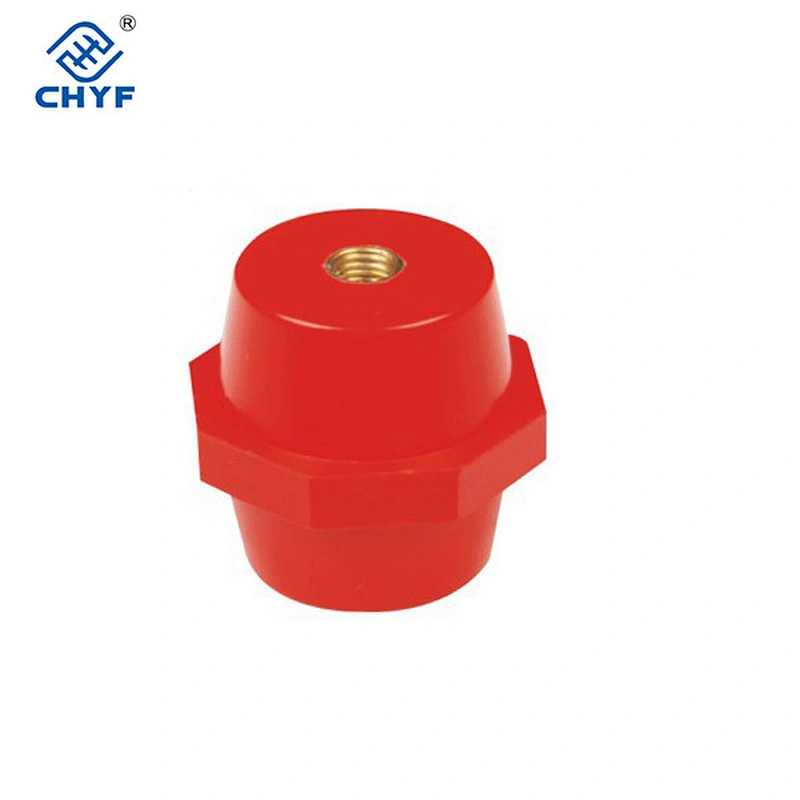

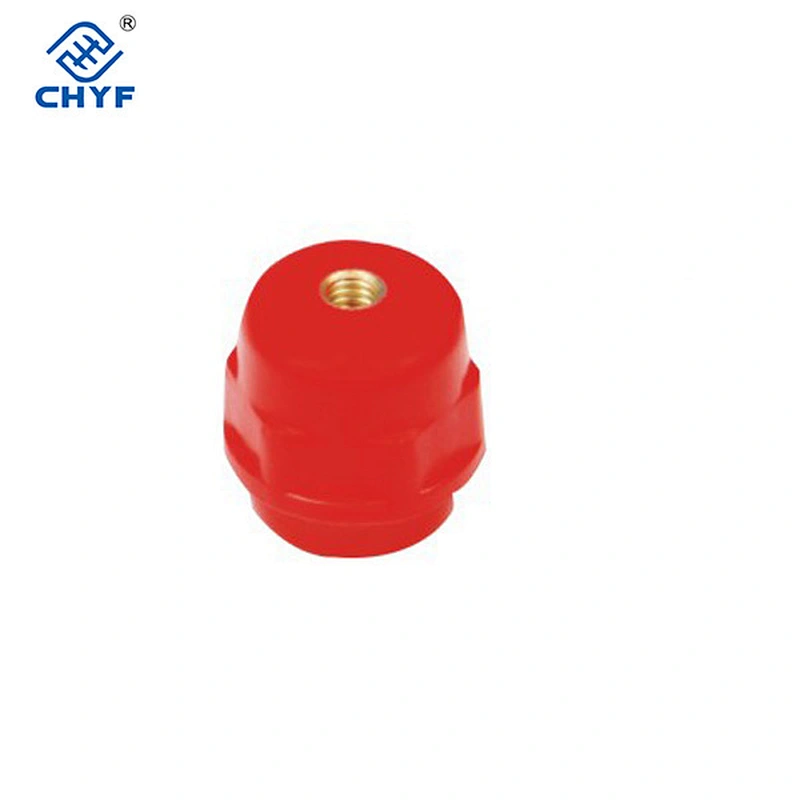

SM series polymer insulator details listed as belows:
Material: BMC ( bulk moulding compounds )
Rated Voltage: 6-12KV
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear
Operation Condition
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10º C;
3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;
4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.
Technical Requirement
1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV;
2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in rated current condition.
Standard Export Package by polywood or as per requirements
Samples will be provided and technical and after-service will be always on -line fo you

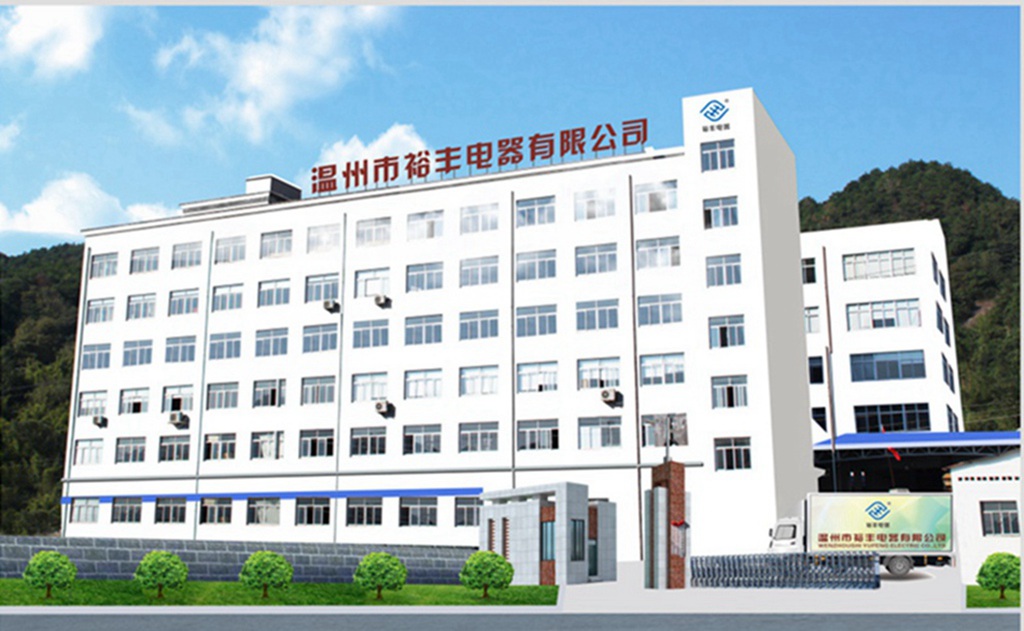

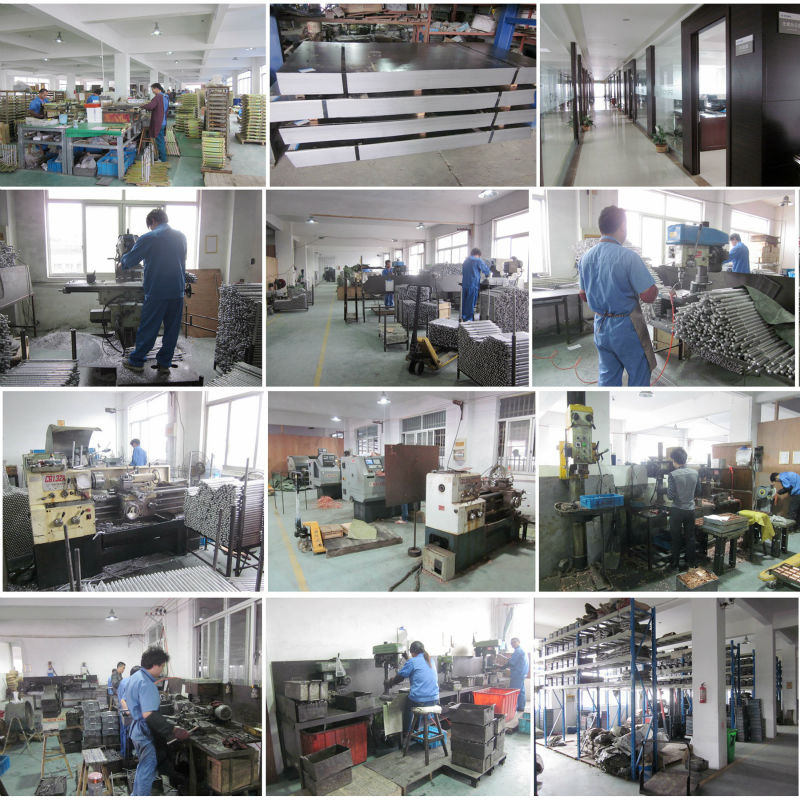

Wenzhou Yufeng Electric Co., Ltd is specialized in 12kV, 24kV, 40.5kV switchgear fittings for more than 15 year, main products listed as earthing switches, interlocking devices, chassis truck, etc, Which can fit with ABB, Schneider and Siemens switchgear and Vacuum Circuit Breaker.
Passed ISO9001: 2000 and some authoritative test, with good quality, best price and on-time delivery, Yufeng gained praise in both domestic and international market. We also gained the super star company by our government and clients.
With the spirit of honesty, innovation and peruse perfect', we believe our future will be more and better. Sincerely hope we will have a long-term with Old and new customers on the basis of mutual trust and benefit. Any inquiry please feel free to contact us at any time.
