- rated voltage:24KV
- usage:power distribution
- model:metal clad switchgear
- Place of Origin:CN;ZHE
- Brand Name:CNYUFENG
- Model Number:CNY61

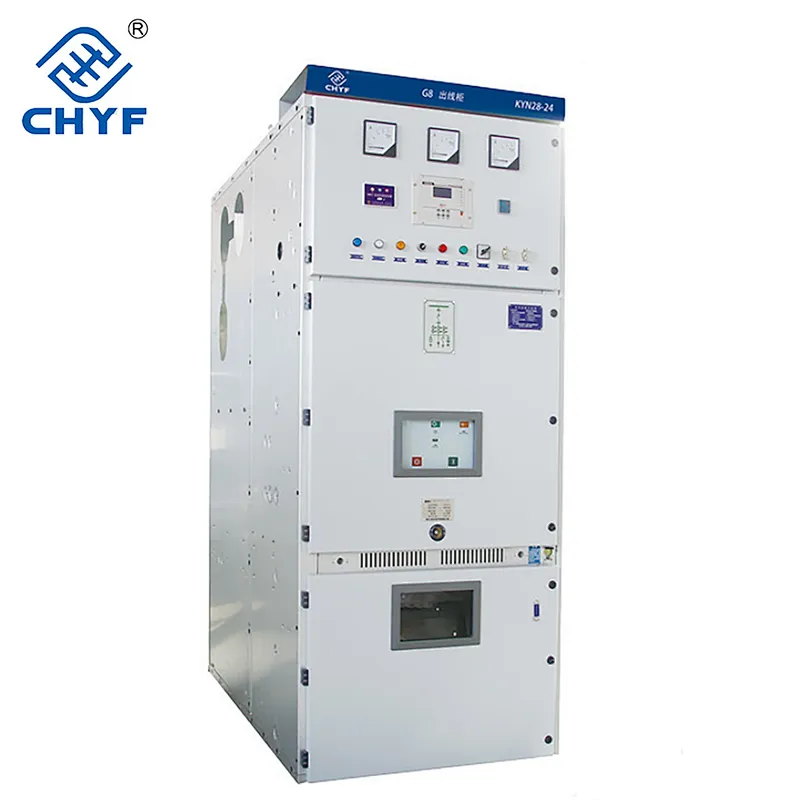

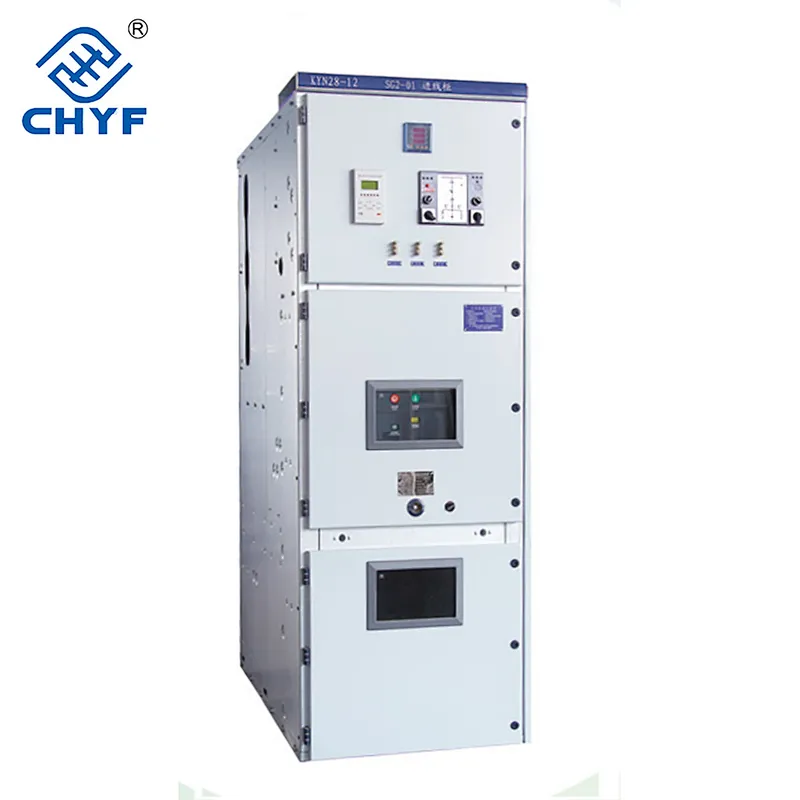

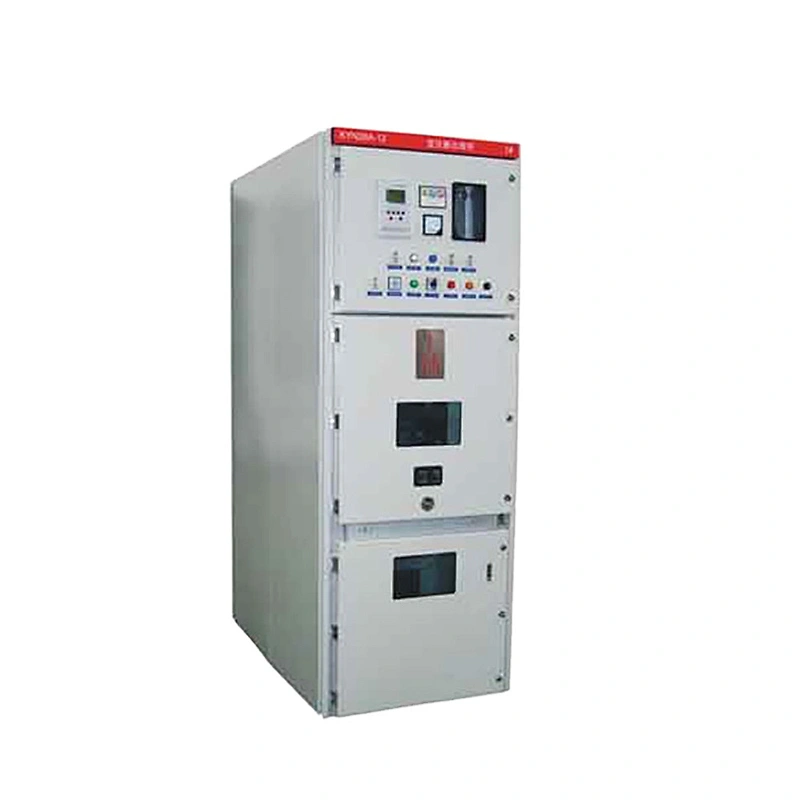

Indoor voltage switchgear details listed as belows:
-Metal-Clad enclosed,good anti-corrosion and rust
-air composite insulation

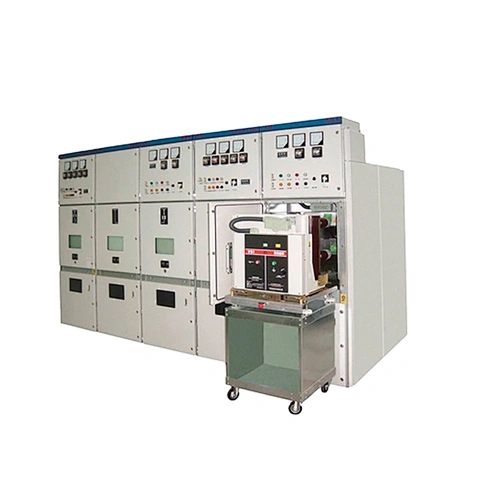

-VCB withdrawable
-Four compartments (VCB, busbar, cable terminal and LV)
-Interlocking system
-Wall mounted or back to back installation
-Internal arc classified IAC AFLR (arc duct)
-Motor operation for withdrawable VCB and earthing switch
-Power automation system (optional)
| Item | Unit | Data | |
| Rated voltage | KV | 36/38/40.5 | |
| Rated current | A | 1250,1600,2000,2500 | |
| Rated frequency | Hz | 50/60 | |
| Rated short circuit breaking current | KA | 25,31.5 | |
| 4s rated short time withstand current | KA | 25,31.5 | |
| Rated short circuit making current (peak) | KA | 63,80 | |
| Rated peak withstand current | KA | 63,80 | |
| Insulation level | Rated lightning impulse withstand voltage | KV | 185(phase to phase:215) |
| Main circuit 1min power frequency withstand voltage | KV | 95(phase to phase:110) | |
| Auxiliary circuit 1MIN power frequency withstand voltage | KV | 2 | |
| Outline dimension(W)*(D)*(H) | MM | 1400/2800/2600(GPN1 type)1200/2600/2400(for VD4/HD4 type) | |
| Protection degree | IP3X (Compartment IP2X) | ||
| Weight | KG | 1000-1850(GPN1 type) 850-1850(for VD4/HD4 type) | |
