- rated voltage:12KV
- Model:metal clad enclosed
- usage:power distribution
- Place of Origin:CN;ZHE
- Brand Name:CNYUFENG
- Model Number:YF615
Metal clad enclosed high voltage switchgear details listed as belows:
-Metal-Clad enclosed,good anti-corrosion and rust
-air composite insulation
-VCB withdrawable
-Four compartments (VCB, busbar, cable terminal and LV)
-Interlocking system
-Wall mounted or back to back installation
-Internal arc classified IAC AFLR (arc duct)
-Motor operation for withdrawable VCB and earthing switch
-Power automation system (optional)

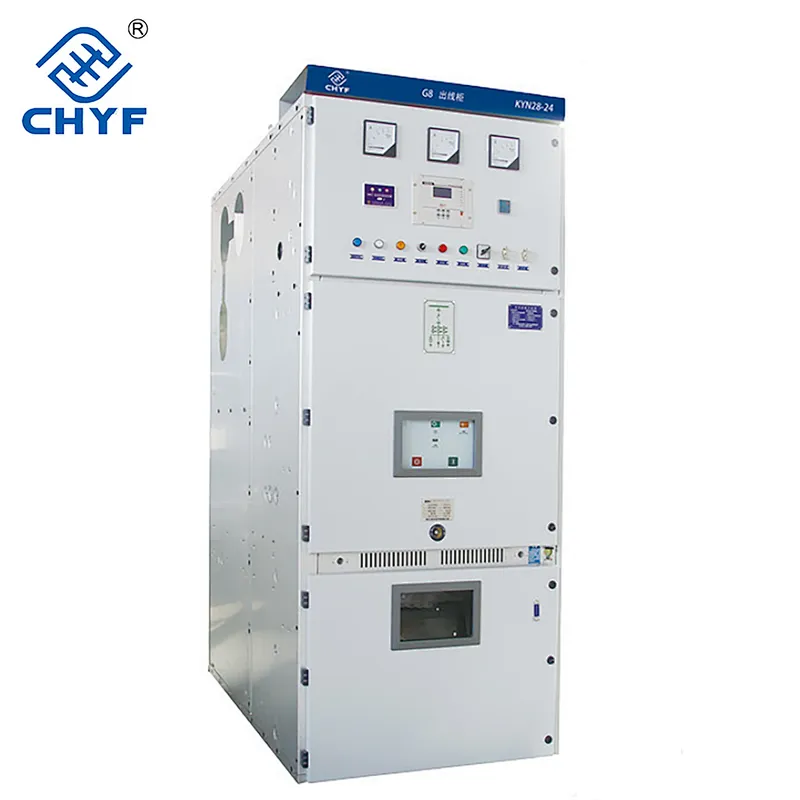

| KYN28-24KV | |||
| Item | Unit | Data | |
| Rated voltage | KV | 24 | |
| Rated current | A | 630/1250/1600/2000/2500/3150 | |
| Rated frequency | Hz | 50/60 | |
| Rated insulation level | Rated power-frequency withstand voltage(1min) | KV | 65/79(to earth/phase to phase) |
| Rated lightening impulse withstand voltage | KV | 125/145(to earth/phase to phase) | |
| Rated short time withstand current | KA | 20/25/31.5 | |
| 4s Short-time withstand current (rms.) | KA | 20/25/31.5 | |
| Peak withstand current (peak.) | KA | 50/63/80 | |
| Cabinet Protection level | IP3X | ||
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
