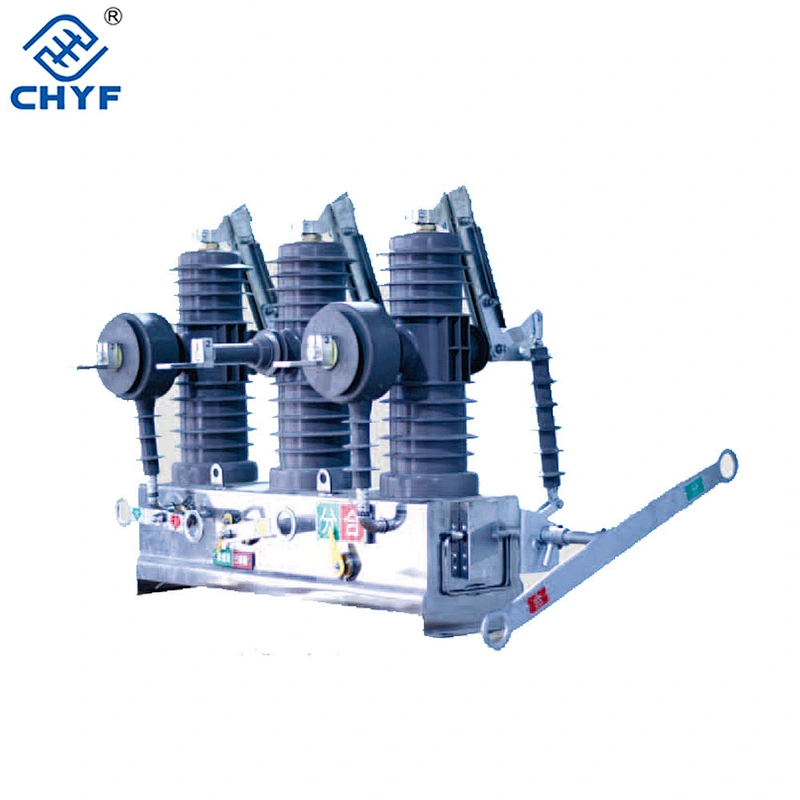

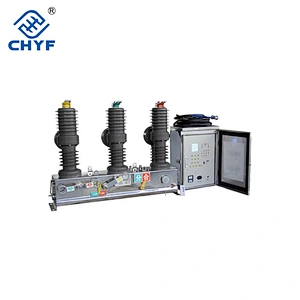

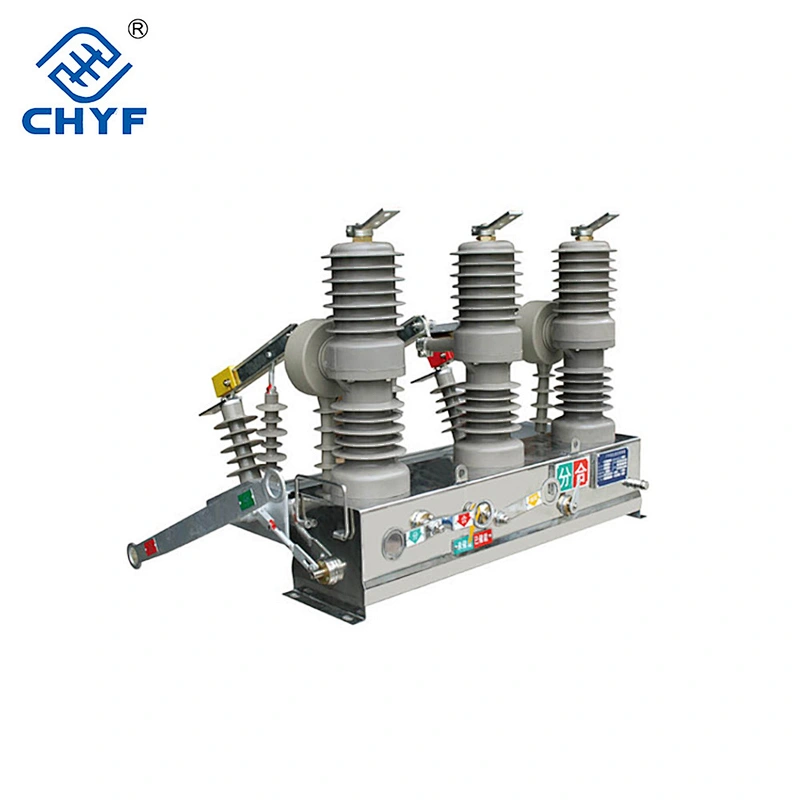

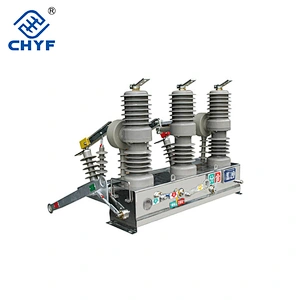

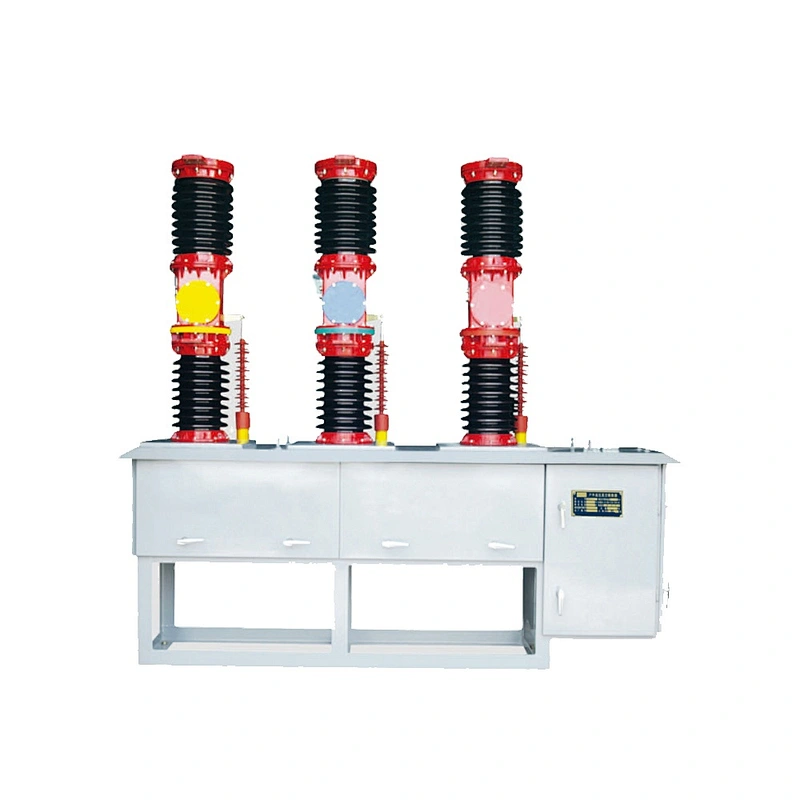

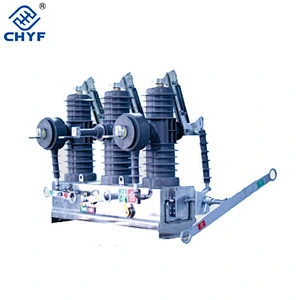

- Rated voltage:40.5KV/36kv
- rated current:1600A2000A
- Rated short circuit breaking current:20KA
- Rated short circuit current:50KA
- 4S rated short-circuit withstand current:20KA
- mechanical life:10000
- current breaking times:20
- contact overtravel:4-6
- contact opening distance:20
- rated operaning voltage:AC110.220 DC110.220
- Type:Vacuum
- Poles Number:3
- Place of Origin:CN;ZHE
- Brand Name:CNYUFENG

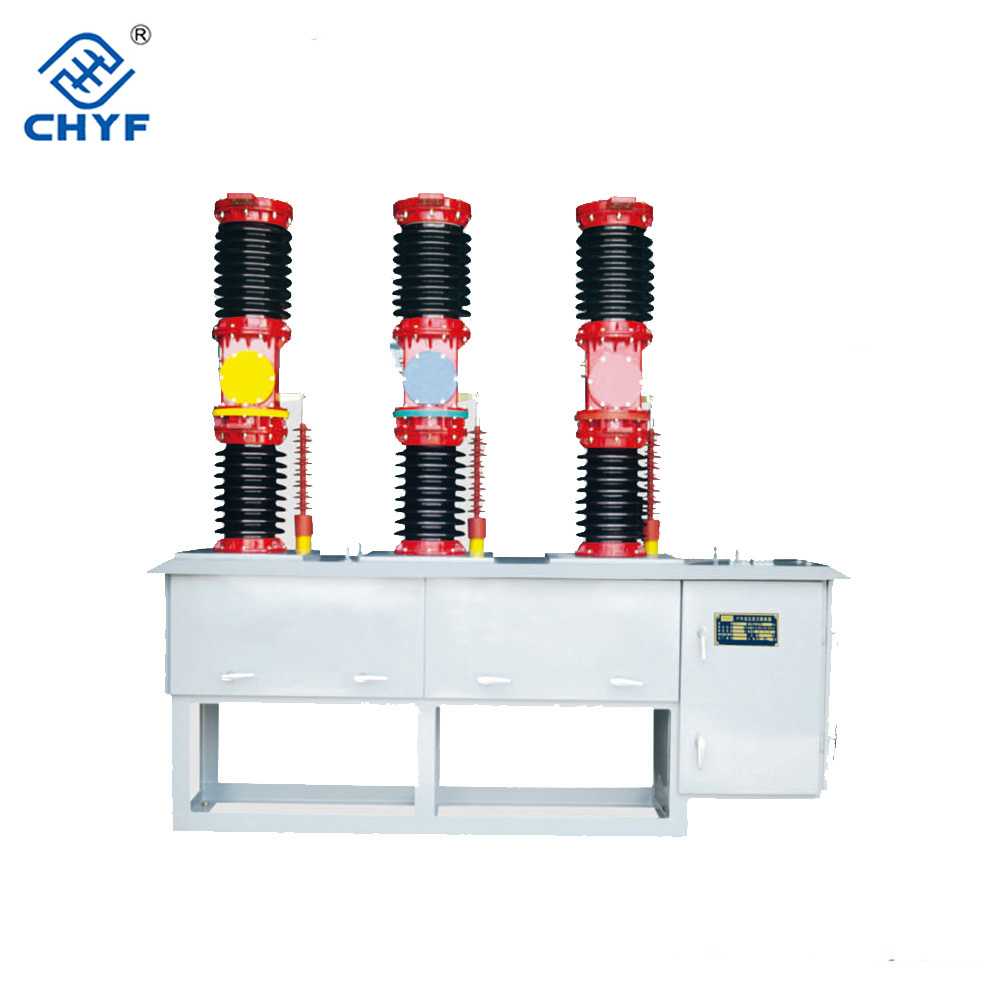

- Model Number:ZW7A-40.5

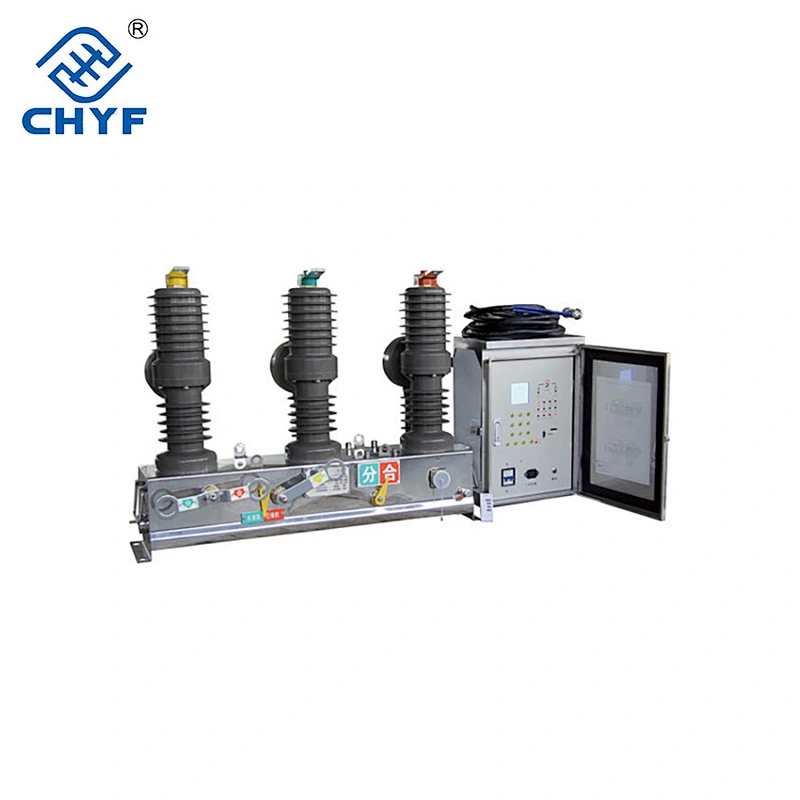

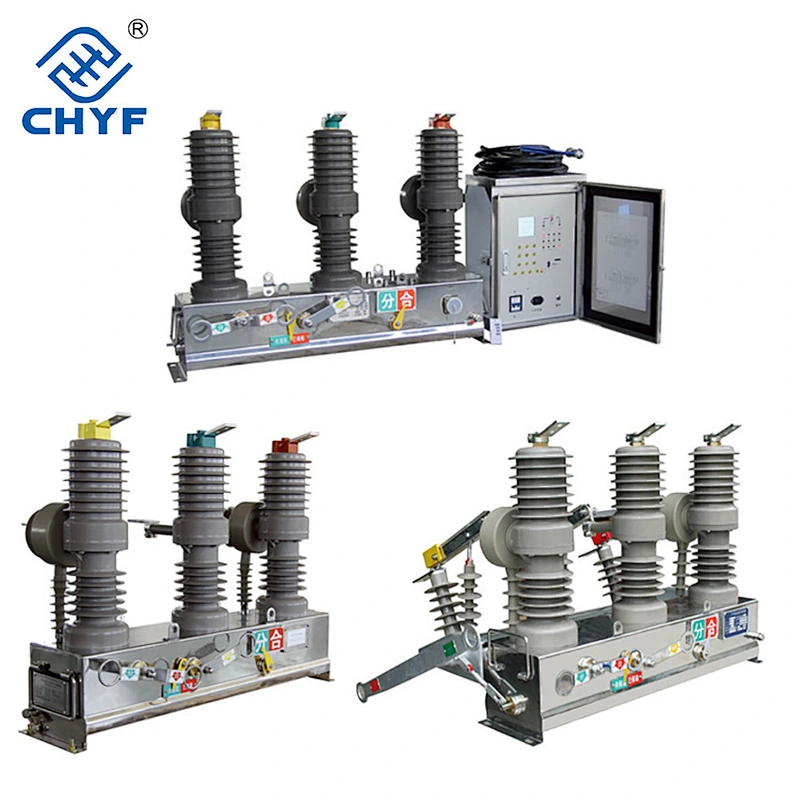

circuit breaker, high voltage vacuum circuit breaker details listed as belows:
1.Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.

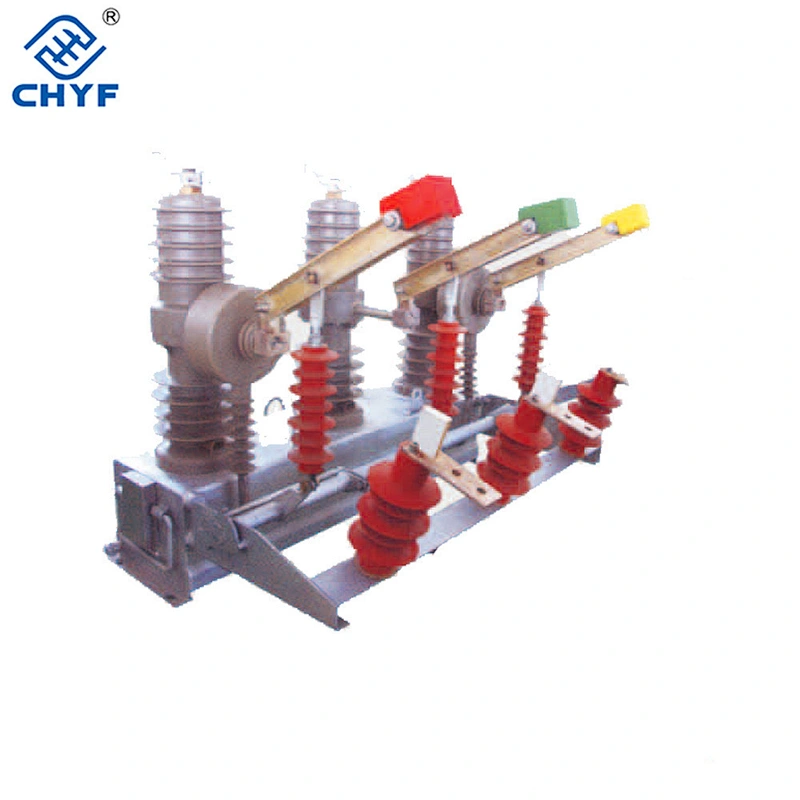

Adopt solid insulation structure, use of advanced solid epoxy sealing technology, the first time, the vacuum interrupter. A leading electrical circuit. insulation and other support to become an integrated combination of solid seal pole. Successfully from a fundamental solution of the vacuum breaker gas environment, tolerance issues, make it more broad. Integrated solid-pole closure of the fluent use of a self-ventilation technology, cleverly solved the structure of solid insulation caused by heat dissipation.
| NO. | Items | Unit | Value | ||||
| 1 | Rated voltage | KV | 40.5 | ||||
| 2 | Rated Current | A | 1600 | 2000 | |||
| 3 | Rated short circuit breaking current | KA | 20 | 25 | 31.5 | ||
| 4 | Rated short-circuit current (peak) | 50 | 63 | 80 | |||
| 5 | Rated short (heat stable) current | 20 | 25 | 31.5 | |||
| 6 | Rated peak withstand (dynamic stability) current | 50 | 63 | 80 | |||
| 7 | Rated short circuit duration | S | 4 | ||||
| 8 | Rated insulation level | 1 min power frequency withstand voltage | Dry | KV | 95 | ||
| Wet | 80 | ||||||
| Lightning impulse withstand voltage (peak) | 185 | ||||||
| 9 | Rated operating sequence | Times | 20 | ||||
| 10 | Rated short-circuit current breaking times | ms | ≤80 | ||||
| 11 | Full-time off (with spring operating mechanism) | o-0.3s-co-180s-co | |||||
| 12 | Mechanical life | 10000 | |||||
| 13 | Ratod operating voltago | AC110,220;DC110,220 | |||||
| 14 | Contact opening distance | 20 | |||||
| 15 | Contact overtravel | 5±1 | |||||
| 16 | Bounce time | ≤5 | |||||
| 17 | DC resistance per phase circuit | ≤120 | |||||
| 18 | Circuit Breaker Dimensions (L x W x H) | 2460x2400x500 | |||||
| 19 | Circuit breaker with a total mass of body | 1100 | |||||

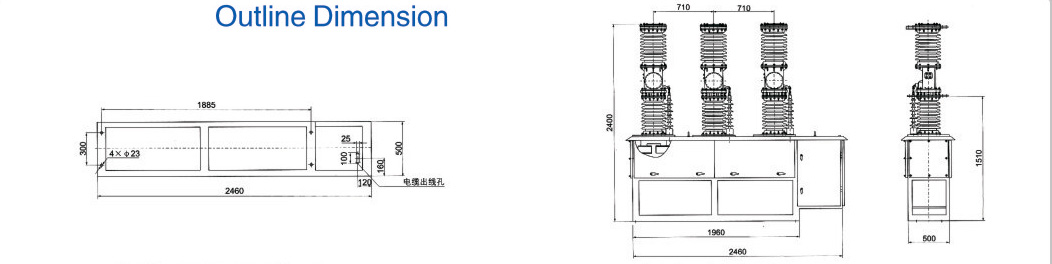

(Technical Drawings)
