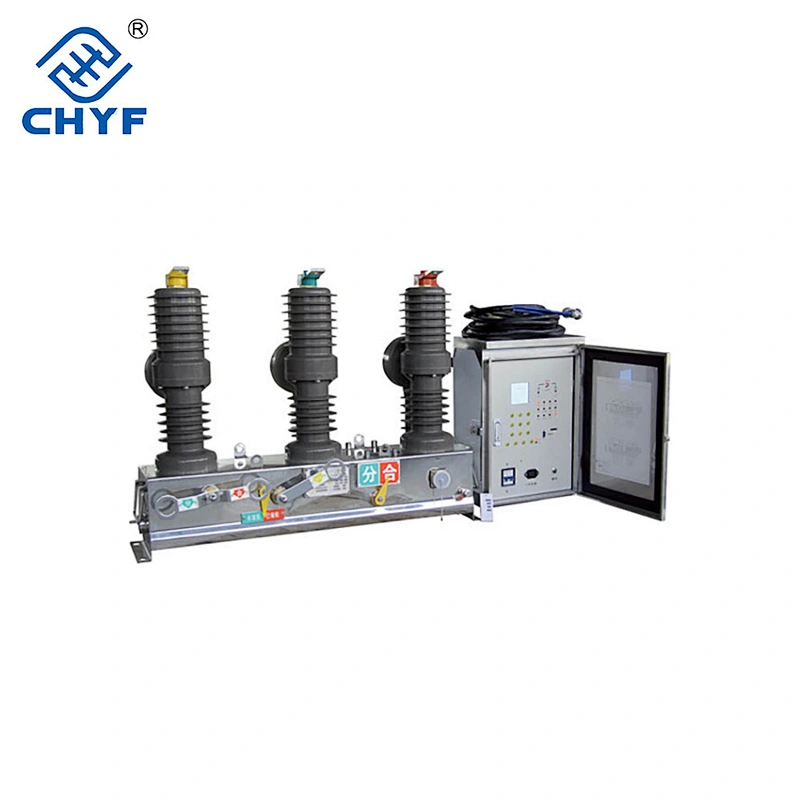

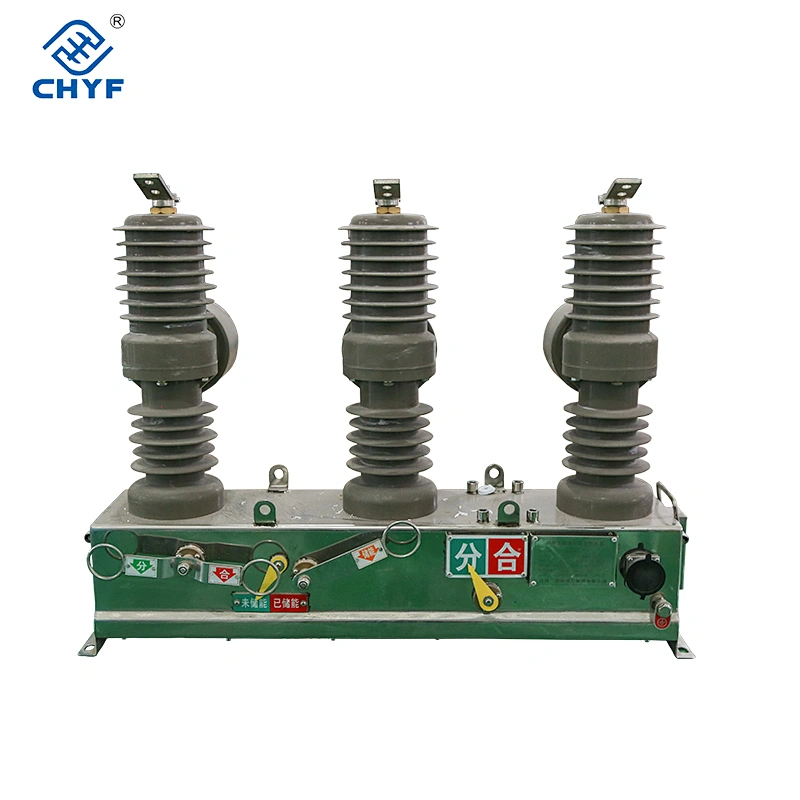

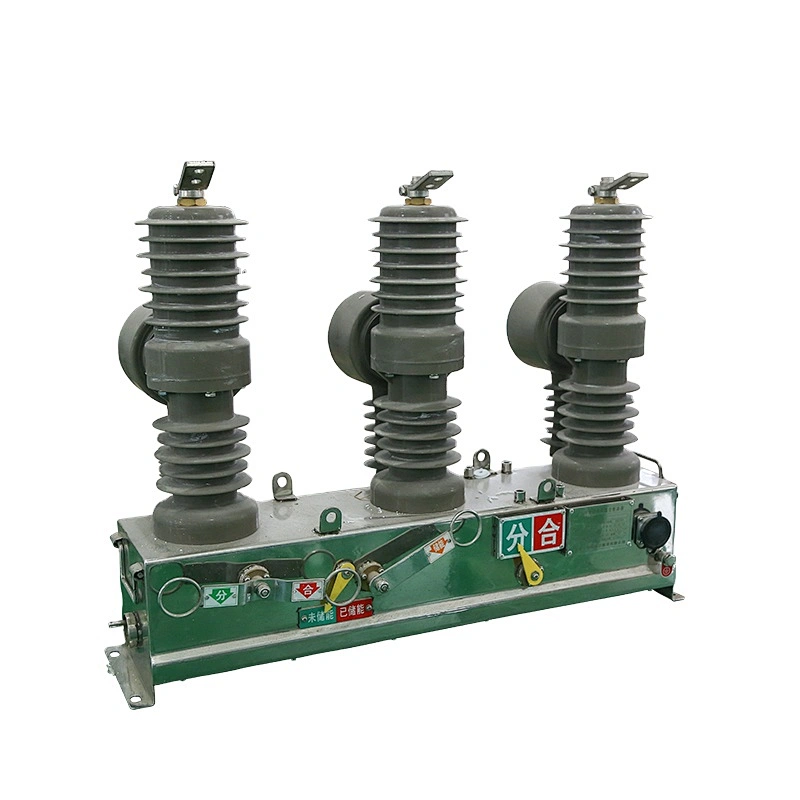

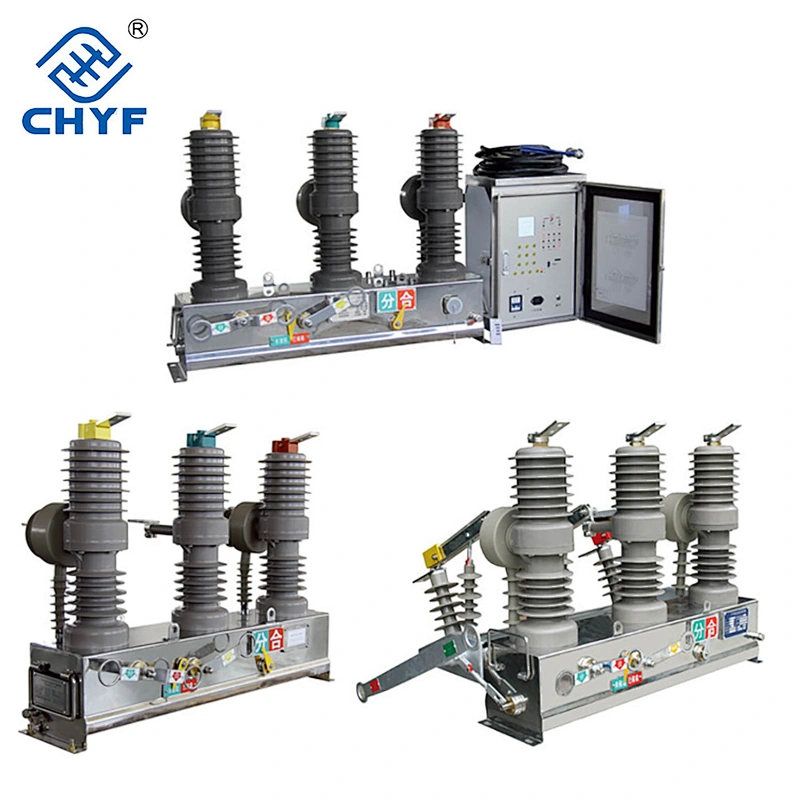

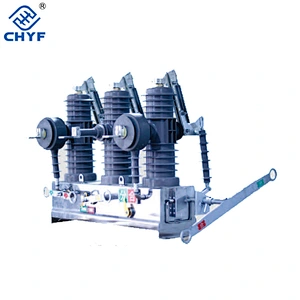

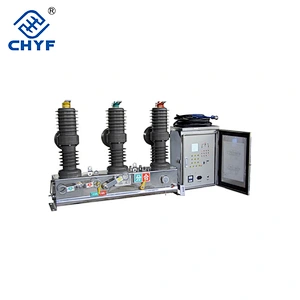

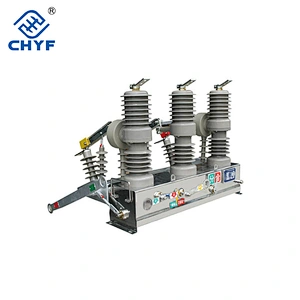

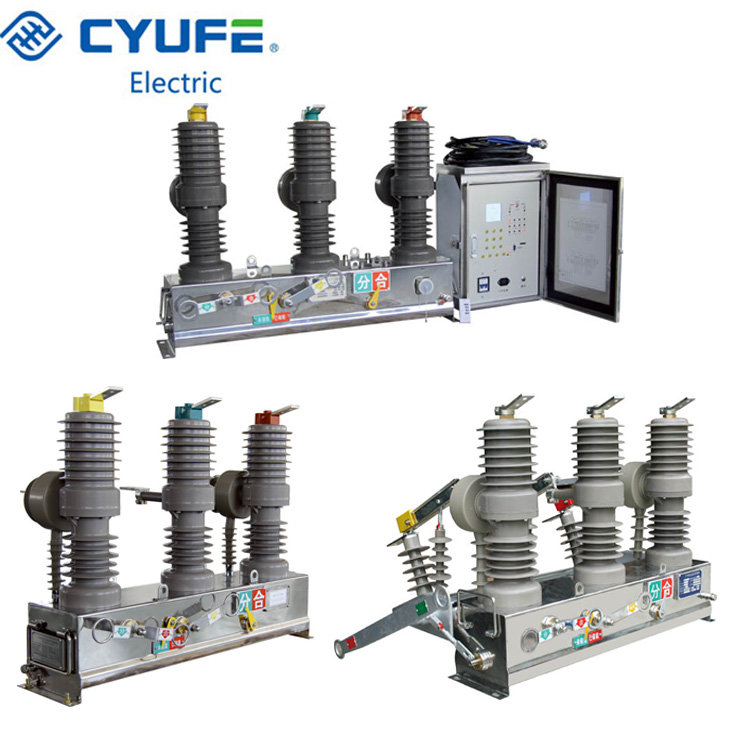

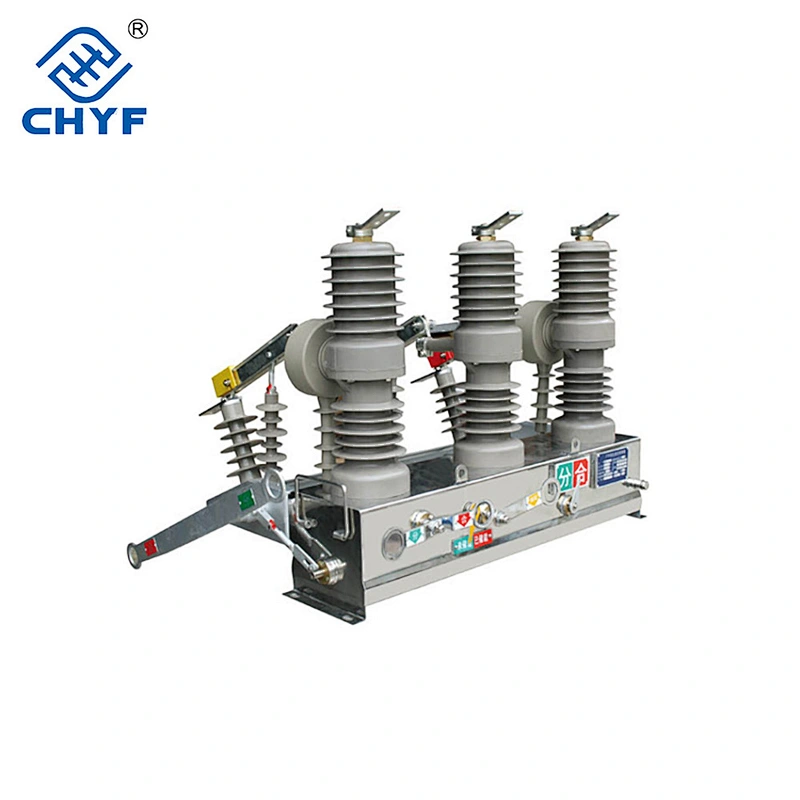

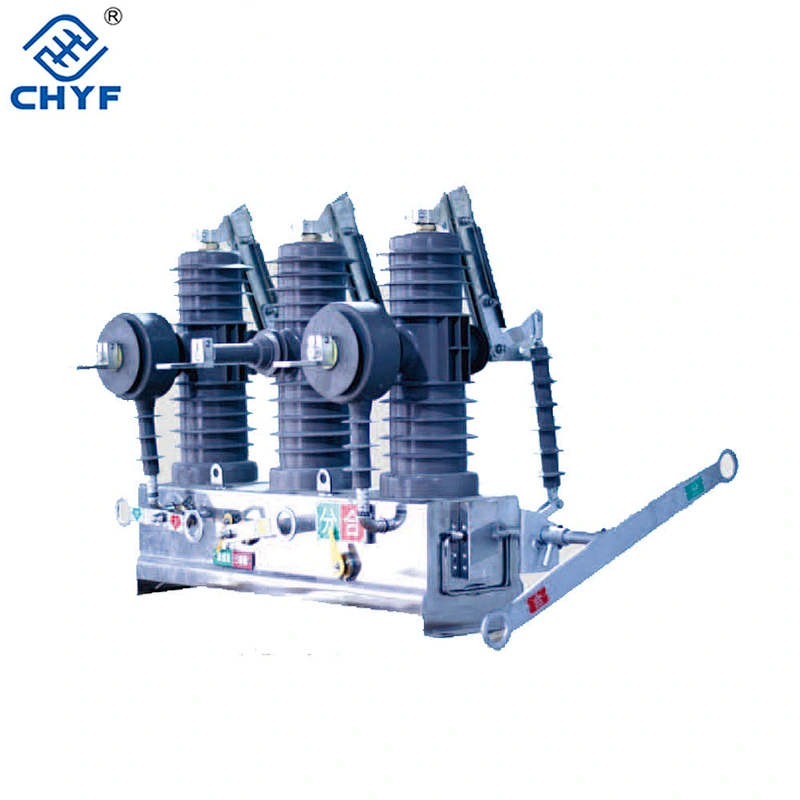

- Rated voltage:12kv/24kv
- rated current:630A;400A;200A
- Rated short circuit breaking current:20KA
- Rated short circuit current:50KA
- 4S rated short-circuit withstand current:25KA
- mechanical life:10000
- current breaking times:30
- contact opening distance:11+1
- rated peak withstand current:50KA
- closing time:25-50ms
- Type:Vacuum
- Poles Number:3
- Rated Frequency:Other
- Place of Origin:CN;ZHE
- Brand Name:CNYUFENG
- Model Number:ZW32-12F
- Rated Voltage:12kv/24kv
circuit breaker, high voltage vacuum circuit breaker details listed as belows:
1.Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
Adopt solid insulation structure, use of advanced solid epoxy sealing technology, the first time, the vacuum interrupter. A leading electrical circuit. insulation and other support to become an integrated combination of solid seal pole. Successfully from a fundamental solution of the vacuum breaker gas environment, tolerance issues, make it more broad. Integrated solid-pole closure of the fluent use of a self-ventilation technology, cleverly solved the structure of solid insulation caused by heat dissipation.
| NO. | Items | Unit | Data | ||
| 1 | Rated voltage | KV | 12 | 24 | |
| 2 | Rated insulation level | 1min power frequency withstand voltage | 42 | 65 | |
| 34 | 50 | ||||
| Lightning impulse withstand voltage (peak) | 75 | 1250 | |||
| 3 | Rated Current | A | 630;400;200 | 630;400;200 | |
| 4 | Rated short circuit breaking current | KA | 20;16;12.5 | 20;16;12.5 | |
| 5 | Rated operating sequence | o-0.3s-co-180s-co | o-0.3s-co-180s-co | ||
| 6 | Rated short-circuit the number of | Times | 30 | 30 | |
| 7 | Rated short-circuit current (peak) | KA | 50 | 50 | |
| 8 | Rated peak withstand current | ||||
| 9 | Rated short-circuit withstand current | 20 | 20 | ||
| 10 | Rated short circuit duration | S | 4 | 4 | |
| 11 | Opening time (SHT) | Maximum operating voltage | ms | 15-50 | 15-50 |
| Rated operating voltage | |||||
| Minimum operating voltage | 30-60 | 30-60 | |||
| 12 | Closing time | ms | 25-50 | 25-50 | |
| 13 | Full-off time | ≤100 | ≤100 | ||
| 14 | Arcing time | 20 | 20 | ||
| 15 | Mechanical life | Times | 10000 | 10000 | |
| 16 | Charging motor rated input power | W | 40 | 40 | |
| 17 | Rated operating voltage and auxiliary voltage | V | DC220,110,24 | DC220,110,24 | |
| AC220,110,24 | AC220,110,24 | ||||
| 18 |
Rated voltage of the storage time | S | ≤10 | ≤10 | |
| 19 | Overcurrent release | Rated Current | A | 5 | 5 |
| Trip current Accuracy | % | ±10 | ±10 | ||

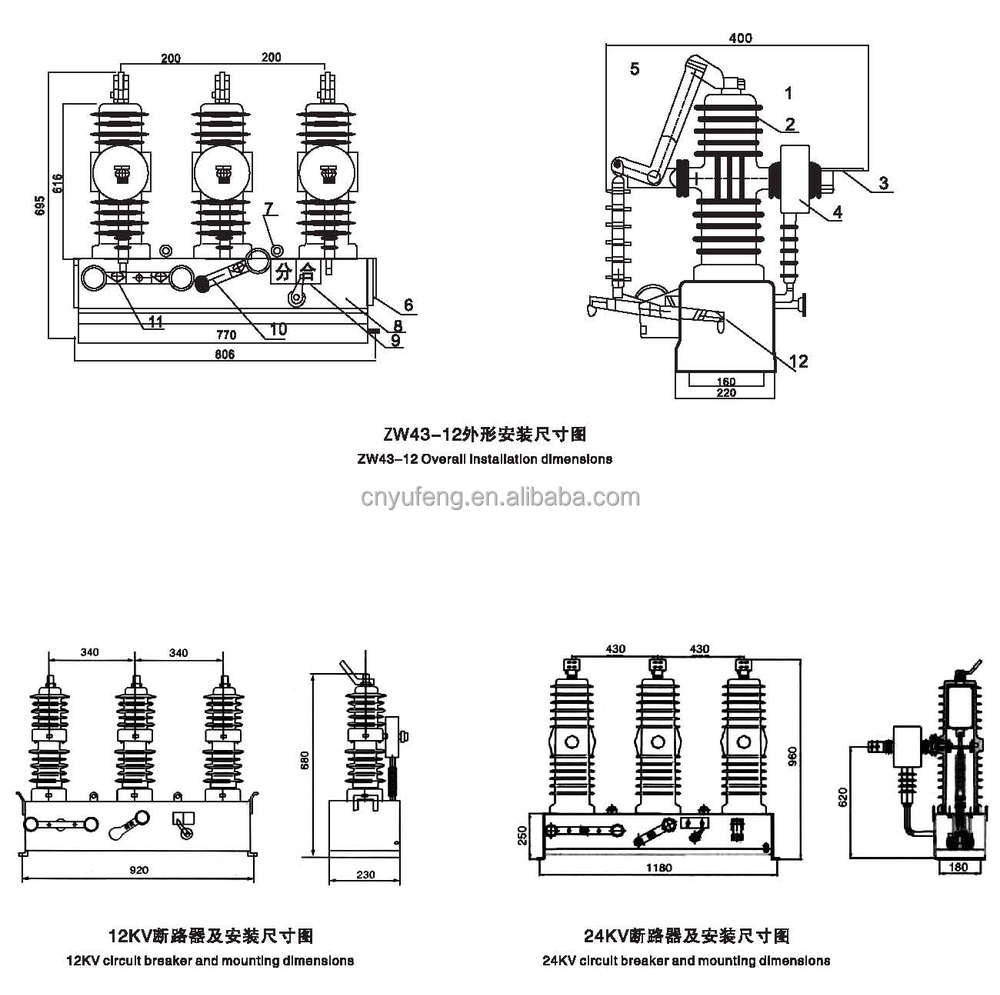

(Technical Drawings)

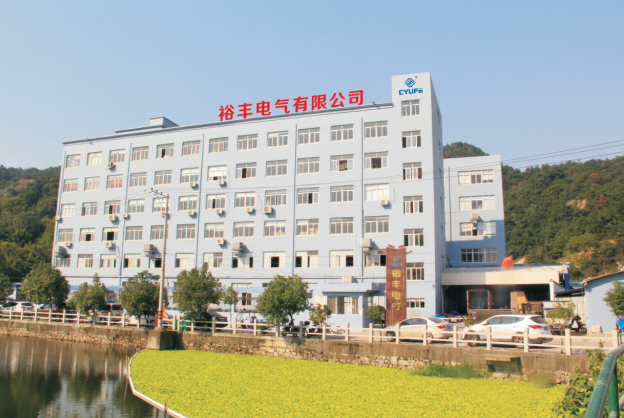

Passed ISO9001: 2000 and some authoritative test, with good quality, best price and on-time delivery, Yufeng gained praise in both domestic and international market. We also gained the super star company by our government and clients.
With the spirit of honesty, innovation and peruse perfect', we believe our future will be more and better. Sincerely hope we will have a long-term with Old and new customers on the basis of mutual trust and benefit. Any inquiry please feel free to contact.
