- Rated voltage:12kv
- rated current:630A 100A
- Rated short circuit breaking current:12.5KA
- Rated short circuit current:31.5KA
- 4S rated short-circuit withstand current:12.5KA
- mechanical life:10000
- current breaking times:30
- withstand voltage:75
- Secondary circuit frequency withstand:2
- Net weight:140KG
- Type:Vacuum
- Poles Number:3
- Place of Origin:CN;ZHE
- Brand Name:CNYUFENG
- Model Number:ZW20X-12KV VCB

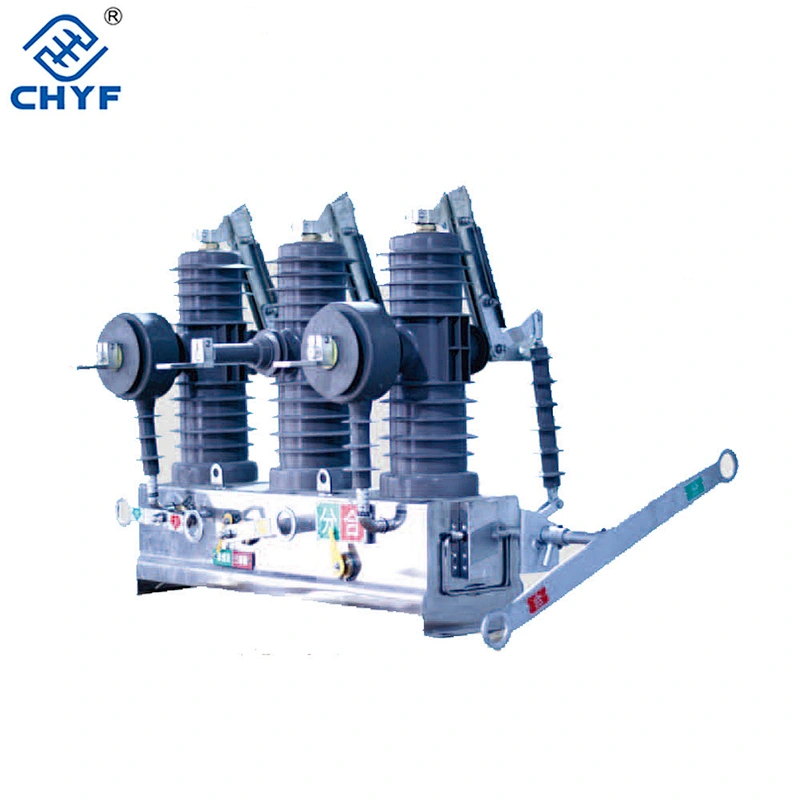

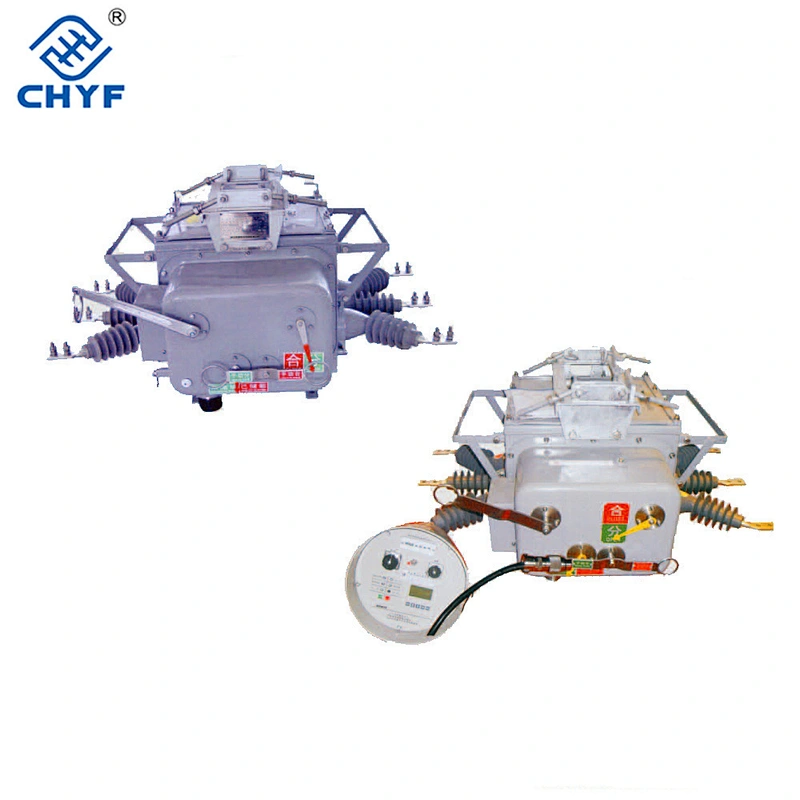

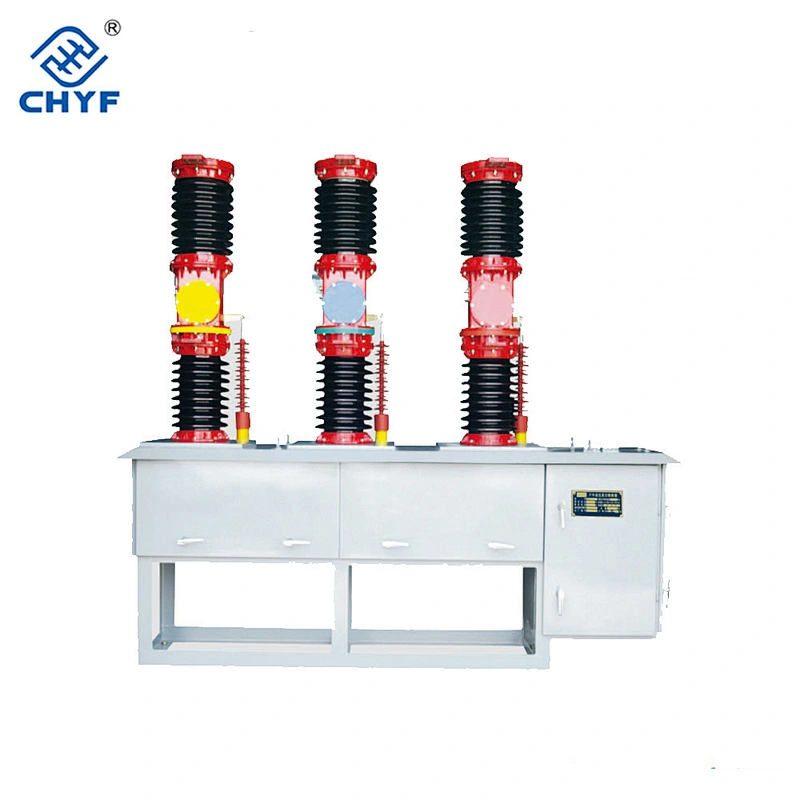

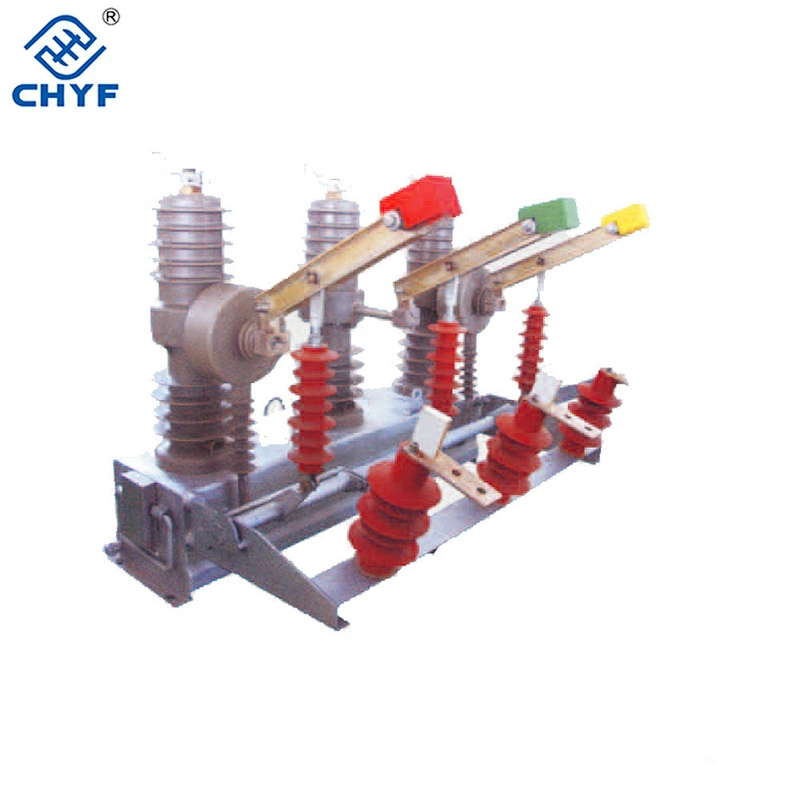

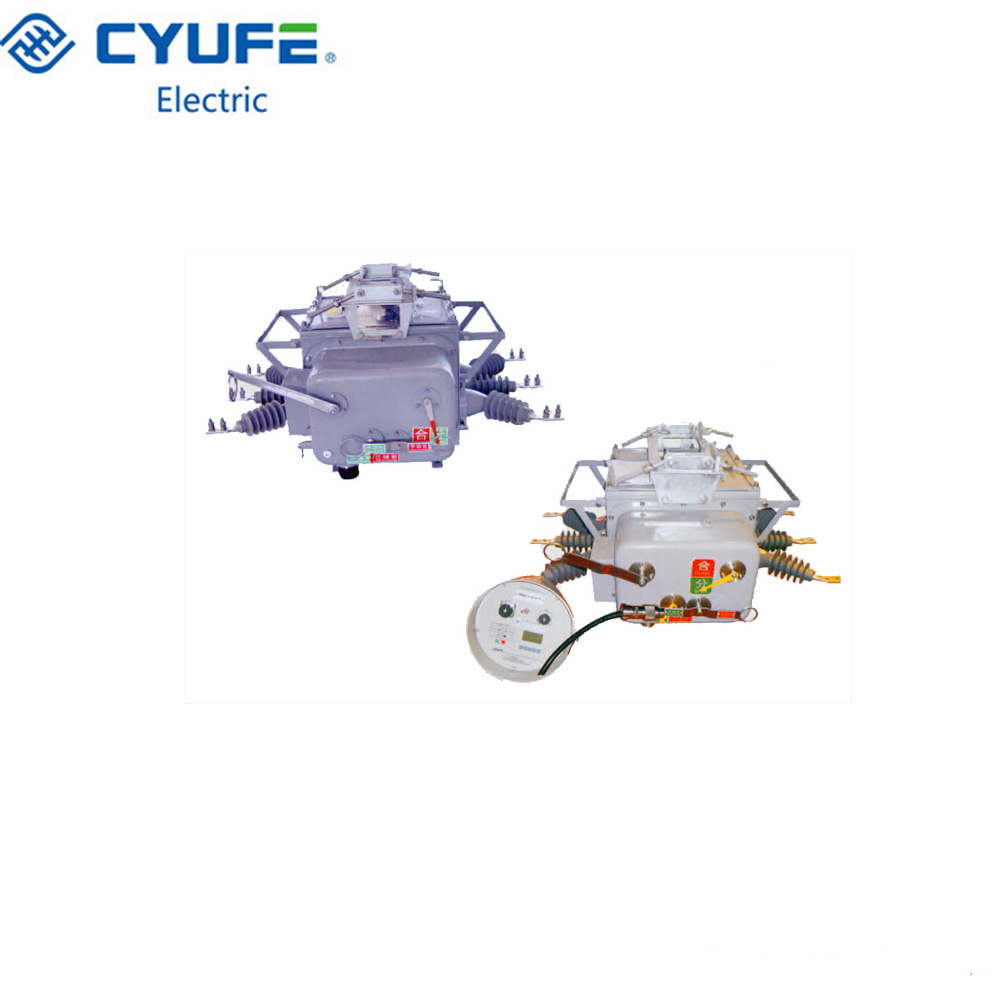

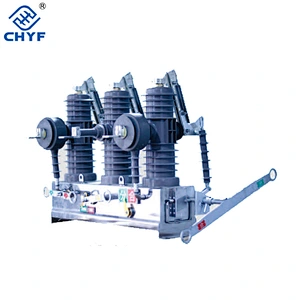

circuit breaker, high voltage vacuum circuit breaker details listed as belows:
1.Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%.
saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
Adopt solid insulation structure, use of advanced solid epoxy sealing technology, the first time, the vacuum interrupter. A leading electrical circuit. insulation and other support to become an integrated combination of solid seal pole. Successfully from a fundamental solution of the vacuum breaker gas environment, tolerance issues, make it more broad. Integrated solid-pole closure of the fluent use of a self-ventilation technology, cleverly solved the structure of solid insulation caused by heat dissipation.
| Items | Unit | Data |
| Rated voltage | KV | 12 |
| Rated frequency | Hz | 50 |
| Rated current | A | 630, 100 |
| Rated short circuit breaking current | KA | 12.5. 16, 20, 25 |
| Rated peak withstand current (peak) | KA | 31.5,40,50,63 |
| Rated short time withstand current (4s) | KA | 12.5,16, 20, 25 |
| Rated short-circuit current (peak) | KA | 31.5,40, 50. 63 |
| Mechanical life | Times | 10000 |
| Rated breaking current number of Y | Times | 10000 |
| Rated short-circuit current breaking times | Times | 30 |
| Frequency voltage (1 min): white, on the ground / fracture | KV | 42 |
| Lightning impulse withstand voltage (peak) and white, contrast, circuit | KV | 75 |
| Secondary circuit 1 min power frequency withstand | KV | 2 |
| Net weight | Kg | 140 |

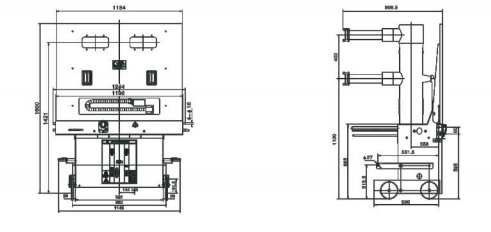

(Technical Drawings)
