- RATED VOLTAGE:12KV
- RATED FREQUENCY:50HZ
- rated current:630A
- 4S thermal current:20KA
- Mechanical life:10000 times
- auxiliary circuit rated voltage:220V
- opening time of fuse trigger:30-40ms
- opening time of tripper trigger:40-50ms
- Rated active load breaking current:630A
- Auxiliary circuit voltage:AC110, 220; DC110, 220
- Whether the smart:No
- Place of Origin:CN;ZHE
- Certification:CE
- Brand Name:YUFENG
- Model Number:FZN25
- Max. Voltage:12KV

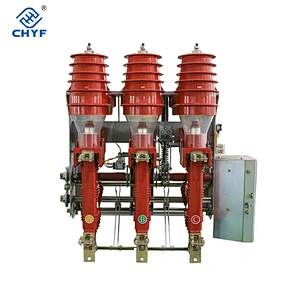

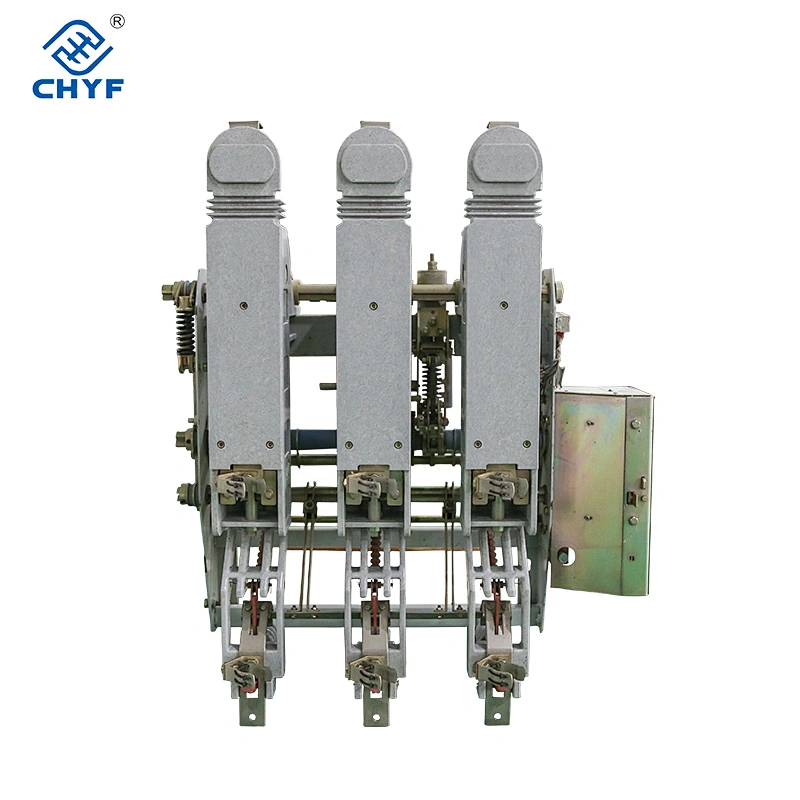

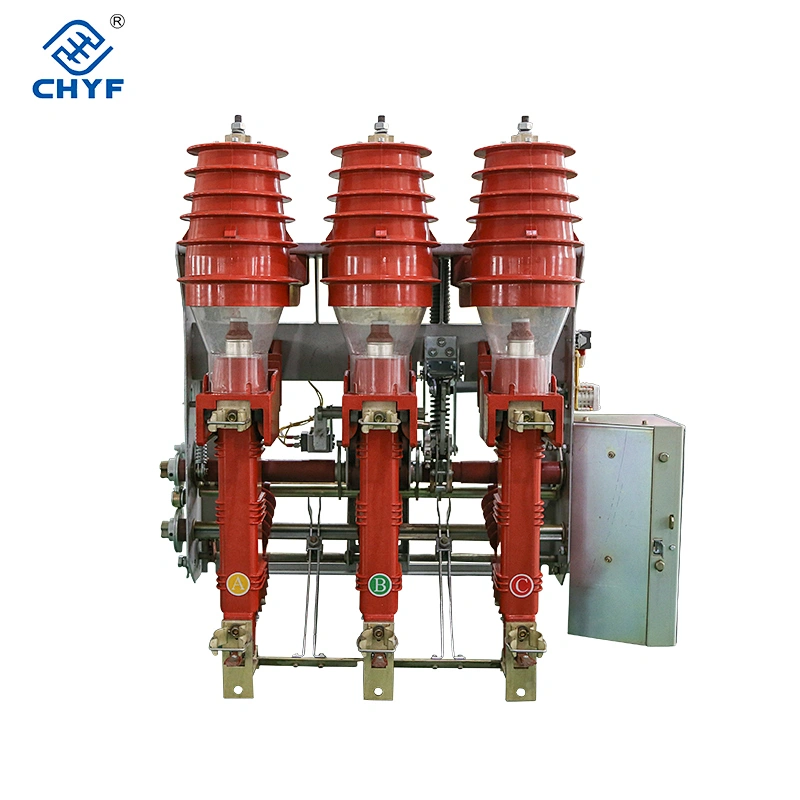

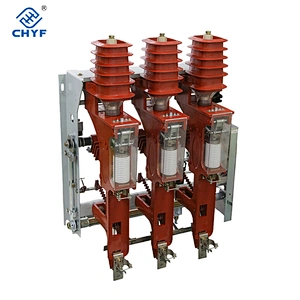

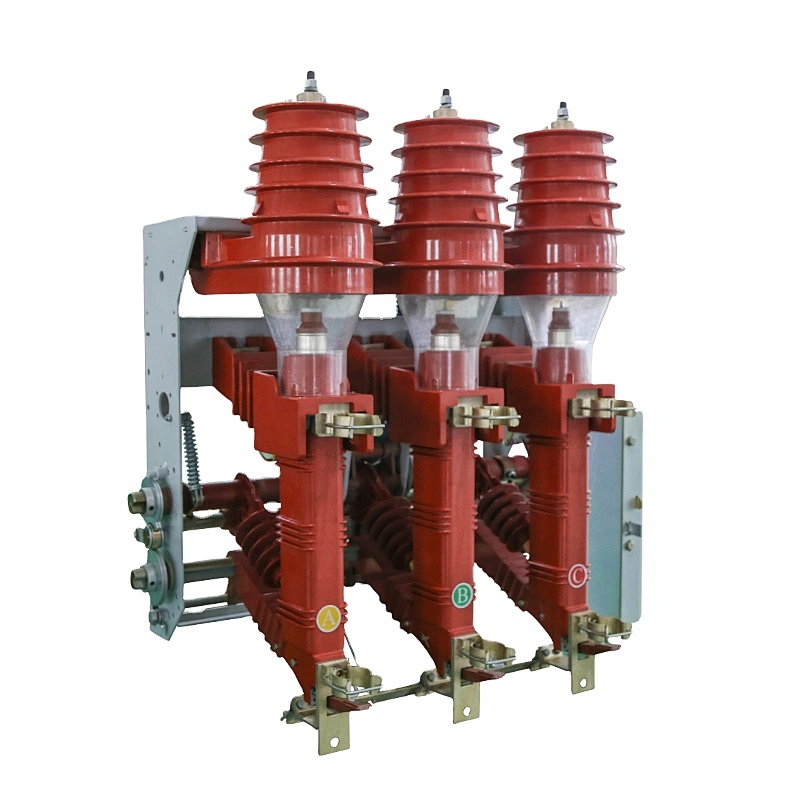

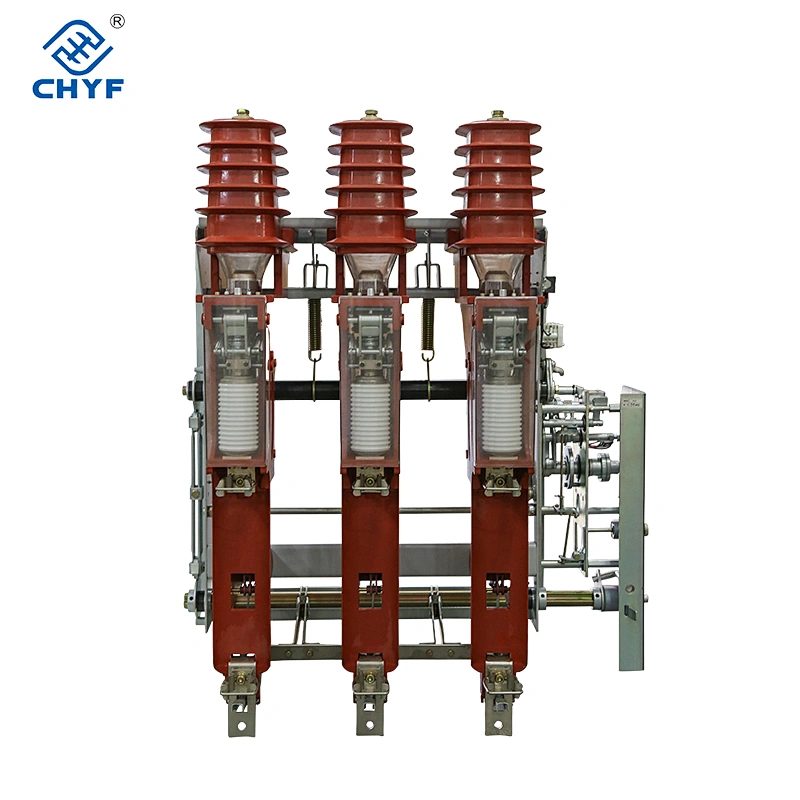

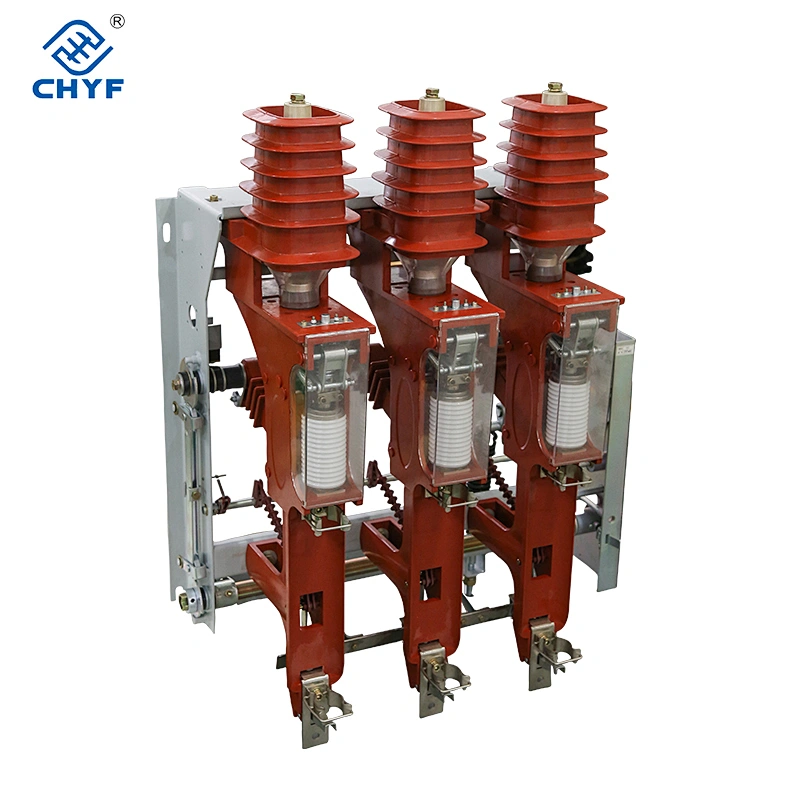

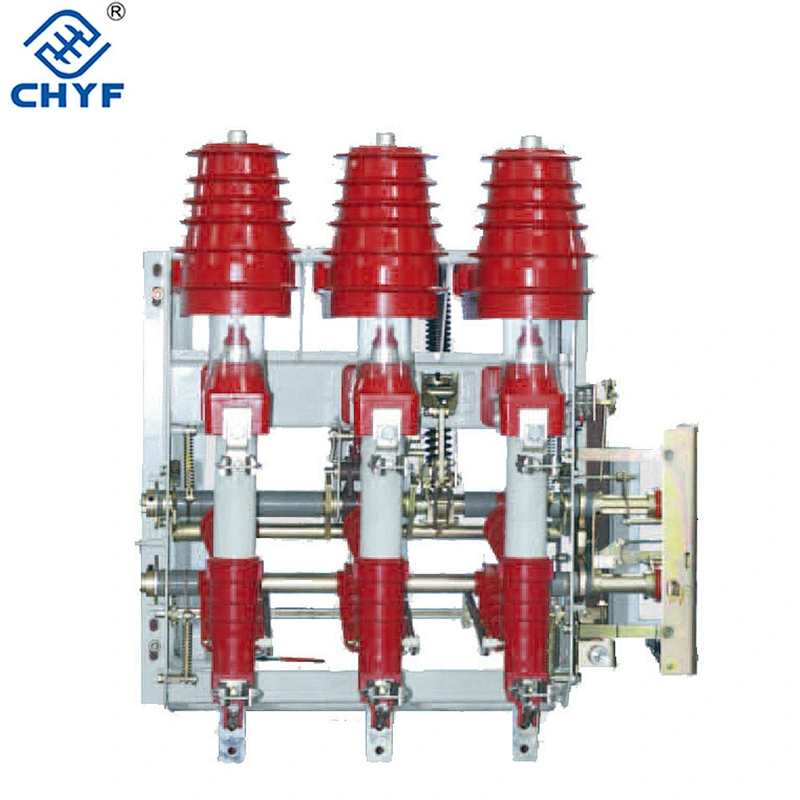

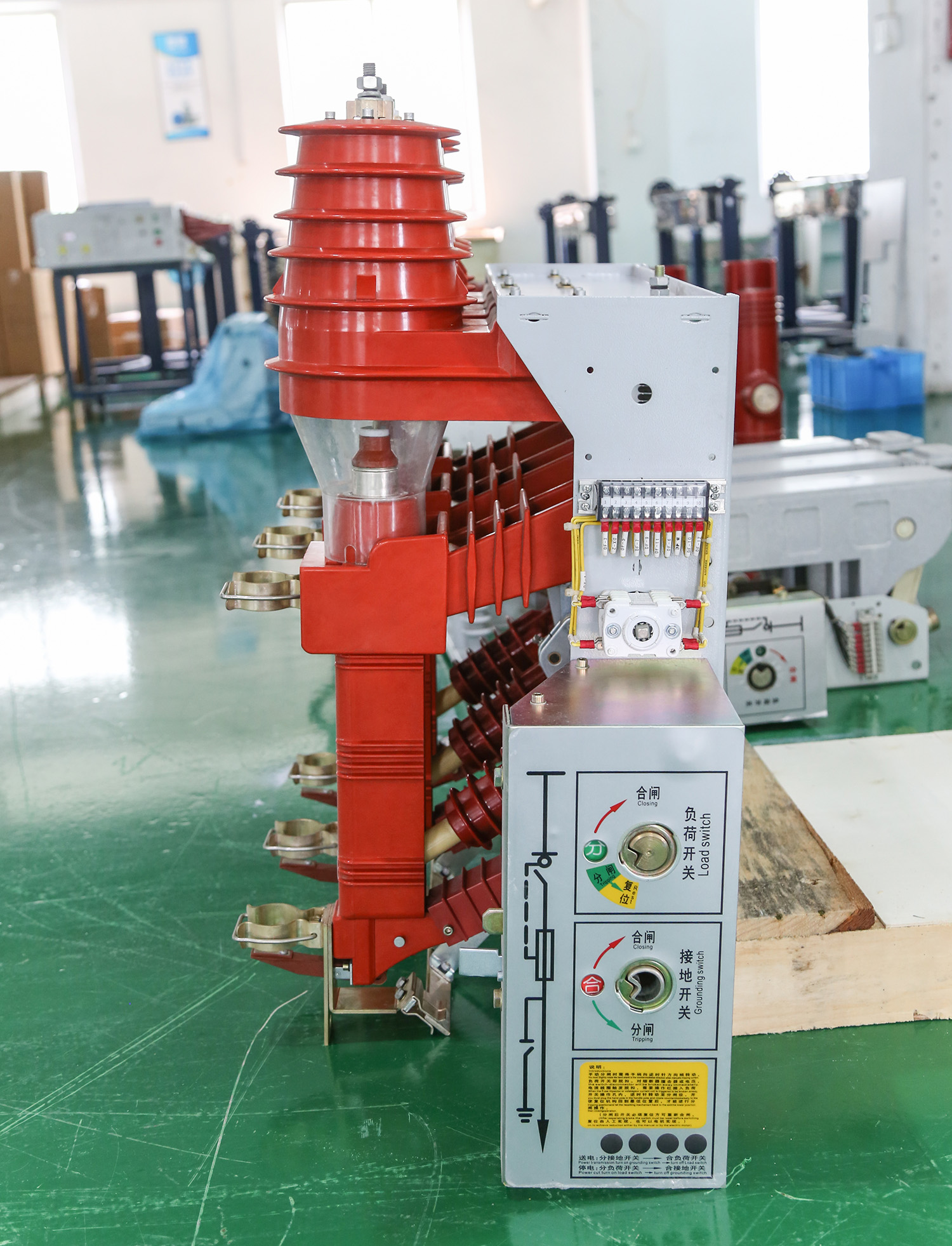

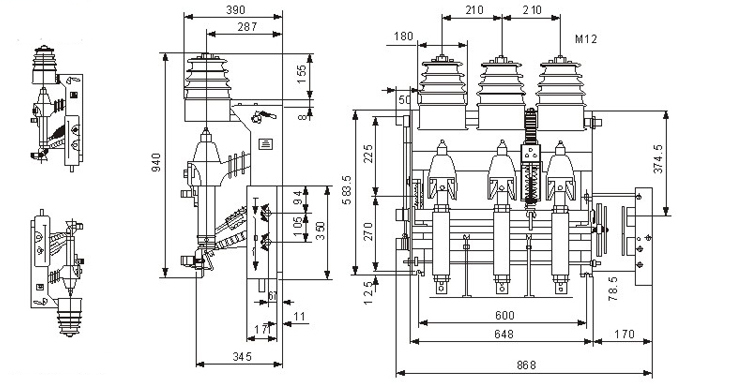

Indoor high voltage load break switch FZN25 details listed as belows:
Application
It is used in the ring network city distribution and industrial equipment of 12KV and three-phase AC 50Hz to cortrol load and short-circuit. Because the switch with fuse protecting transformer etc more reliably than circuit breaker. It is especialy suitable for ring network clouble radial distribution and package substation.
Standard
a. GB3804-90 <<3-63KV AC H.V load switch>>.
b. GB16926-1997 <
c. GB1995-89 <
Operating environmental conditions:
1.Altitude: ≤1000m
2.ambient air temperature: not higher than +40°C,not lower than-25°C
3.Relative humidity: daily mean is not more than 95%, monthly mean is not more than 90%
4.Earthquake intensity: not more than 8°
5.no fire, explosion hazard, chemical etching and intense vibration
6.Pollution grade: II
7. Ambient air shouldn't be polluted by corrosive or flammable gas and vapor.
| NO. | Items | Unit | Data | ||
| FZN25-12D/T630-20 | FZRN25-12D/T125-31.5 | ||||
| 1 | Rated voltage | KV | 12 | ||
| 2 | Rated frequency | Hz | 50 | ||
| 3 | Rated Current | A | 630 | 1250 | |
| 4 | Rated insulation level | 1 min power frequency withstand voltage (RMS) | KV | Interrupter fracture 30; | |
| Ground and white 42. 48 off isolation | |||||
| Lightning impulse withstand voltage (peak) | Ground and white 75, 85 off isolation | ||||
| 5 | Rated dynamic current (peak) | KV | 50 | ||
| 6 | 4S thermal current (A) | KA | 20 | ||
| 7 | Rated active load breaking current | KA | 630 | ||
| 8 | Rated breaking current loop | A | 630 | ||
| 9 | Rated cable charging breaking current | A | 10 | ||
| 10 | Rated no-load transformer breaking capacity | A | 1600 | ||
| 11 | Rated transfer current | KVA | 2000 | ||
| 12 | Fuse Type | A | SDLAJ-12 SFLAJ-12 | ||
| 13 | Impact energy output | J | 2-5 (medium) | ||
| 14 | Rated short-circuit current | KA | 50 | ||
| 15 | Rated dynamic current earthing switches | KA | 50 | ||
| 16 | Ground thermal current switch 2s | KA | 20 | ||
| 17 | Auxiliary circuit voltage | V | AC110, 220; DC110, 220 | ||
| 18 | Mechanical life | Times | 1000 | ||
| NO. | Items | Unit | Data | |
| FZN25-12D/T630-20 | FZRN25-12D/T125-31.5 | |||
| 7 | Closing bounce time | ms | ≤2 | |
| 8 | Closing year of the three-phase sub- | ≤3 | ||
| 9 | Main circuit resistance | μ Ω | ≤150 | ≤300 |
| 10 | Manual maximum torque | Nm | ≤160 | |
| 11 | Fuse opening time triggered | ms | 30-40 | |
| 12 | Release triggered by opening time | 40-50 | ||
| 3, charging motor parameters | ||||
| Number | Rated voltage (V) | Rated Current | Rated Power | Normal operating voltage range |
| 66ZY-CJ01B | DC220 | 0.7 | 70 | 85%-110% |
| 66ZY-CJ02B | DC110 | 1.5 | Rated voltage | |
