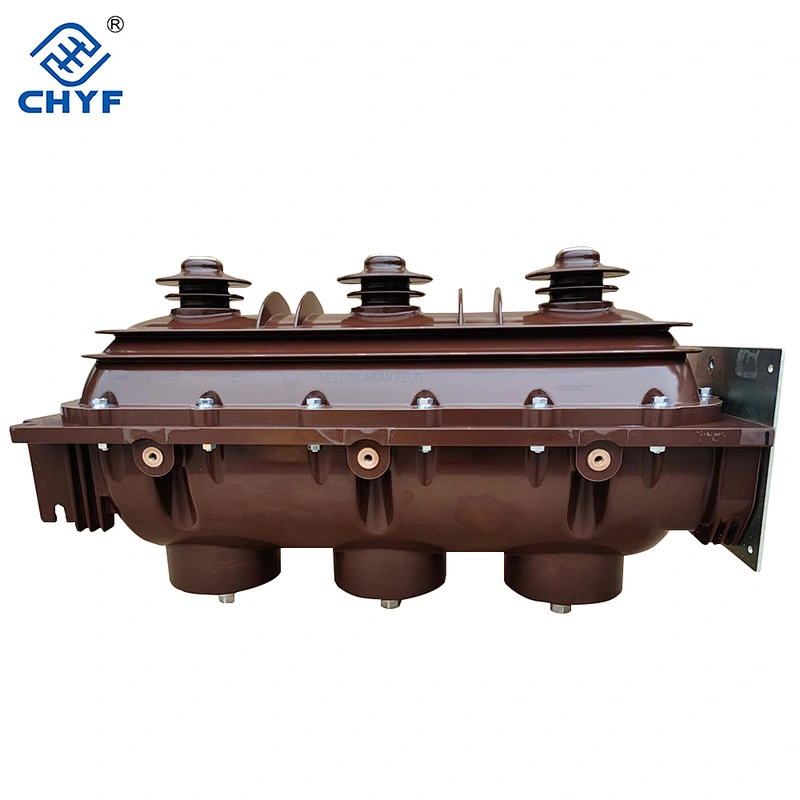

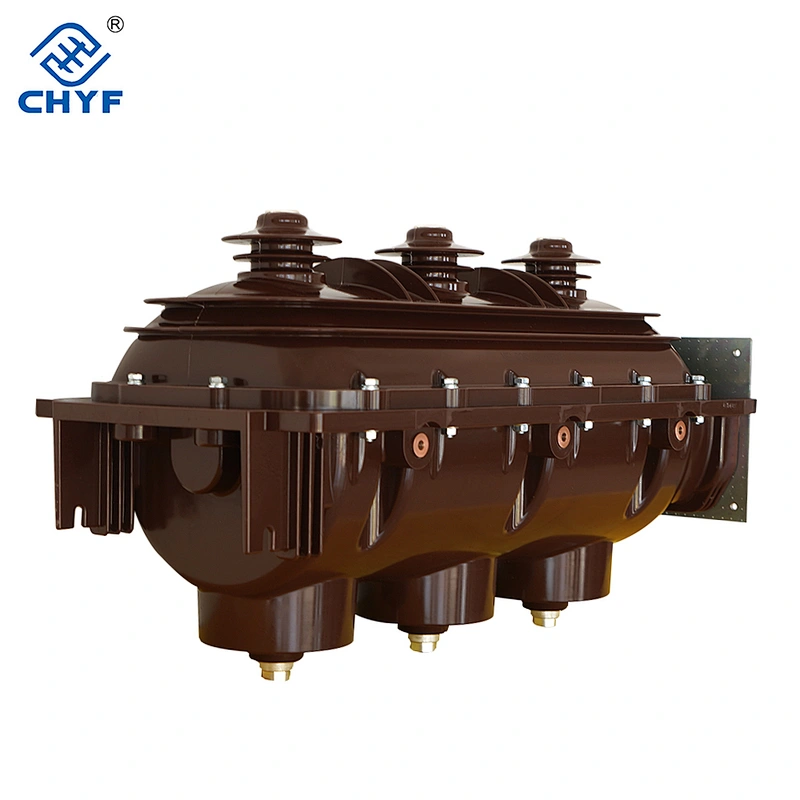

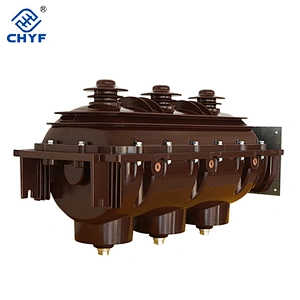

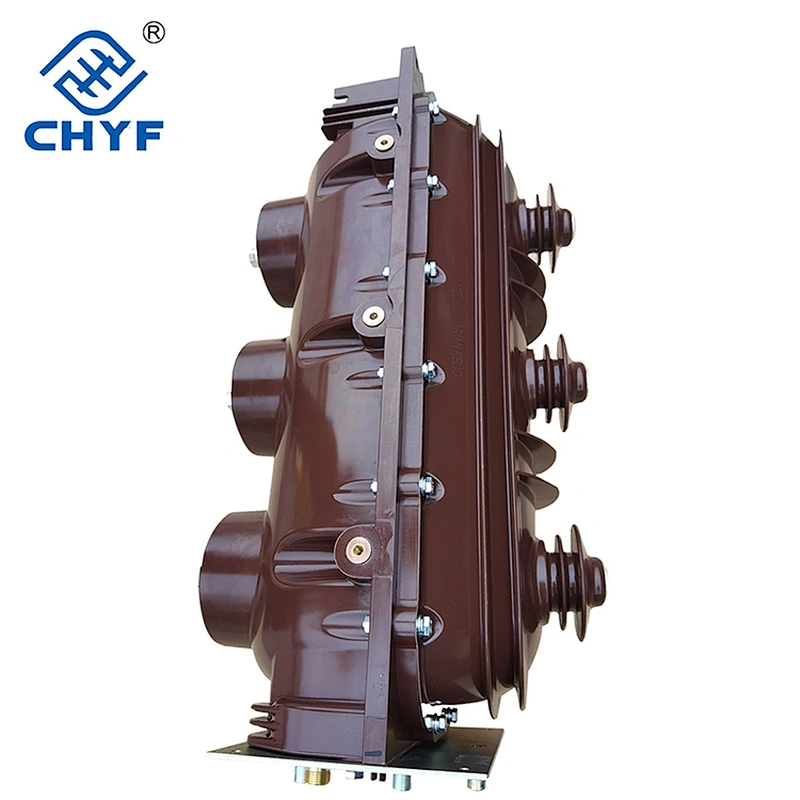

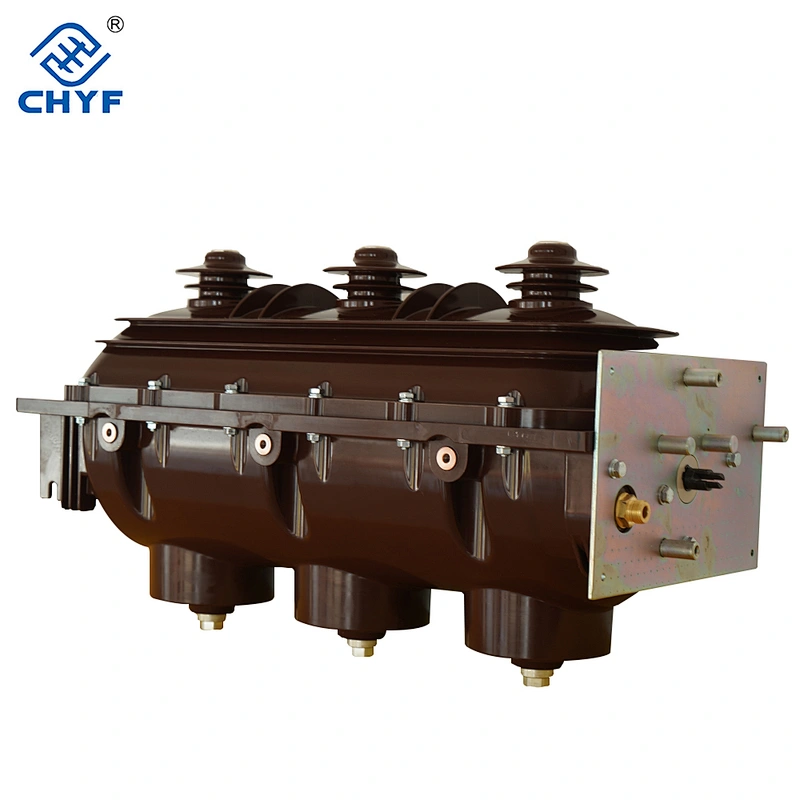

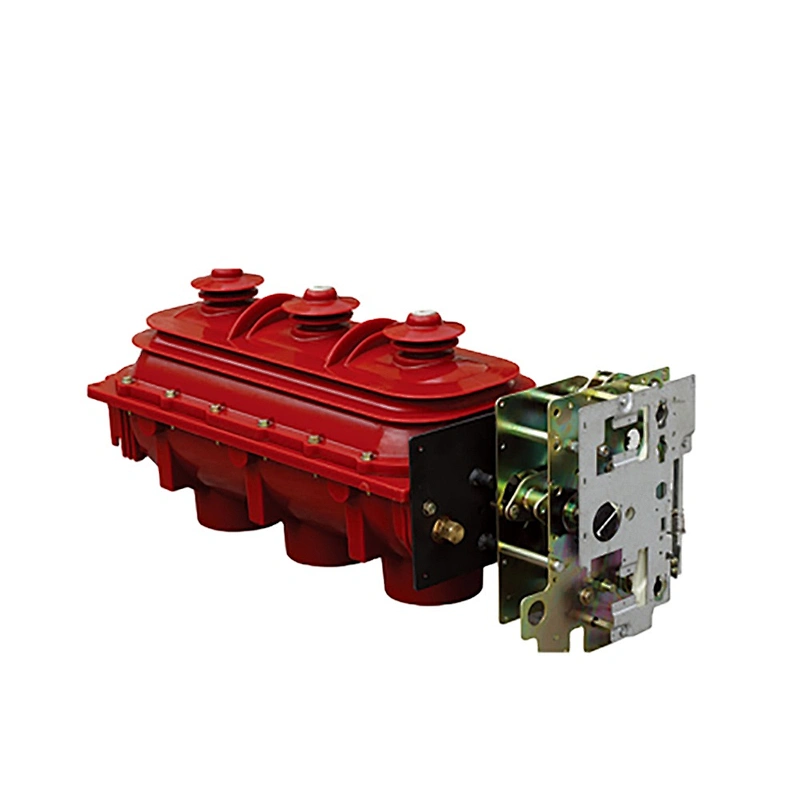

- Product name:load break switch
- Rated voltage:12kv
- Rated current:630A
- Rated frequency:50 Hz
- Mechanical Life:1000 Times
- Material:Copper
- Certificate:ISO9001
- Customized:Accept special order
- Place of Origin:CN
- Certification:ce
- Brand Name:YuFeng
- Model Number:SF6
GB3804-2004"High-vollage Alternating-current Switches for Rated Voltage above 3.6 KV and less than 40.5KV".
GB1985-2004"High-voltage Altenating-current Disconnectors and Earthing Switches", GB/T11022-1999"Common Specifications for High-volloge Switchgear and Controlgear Standords".

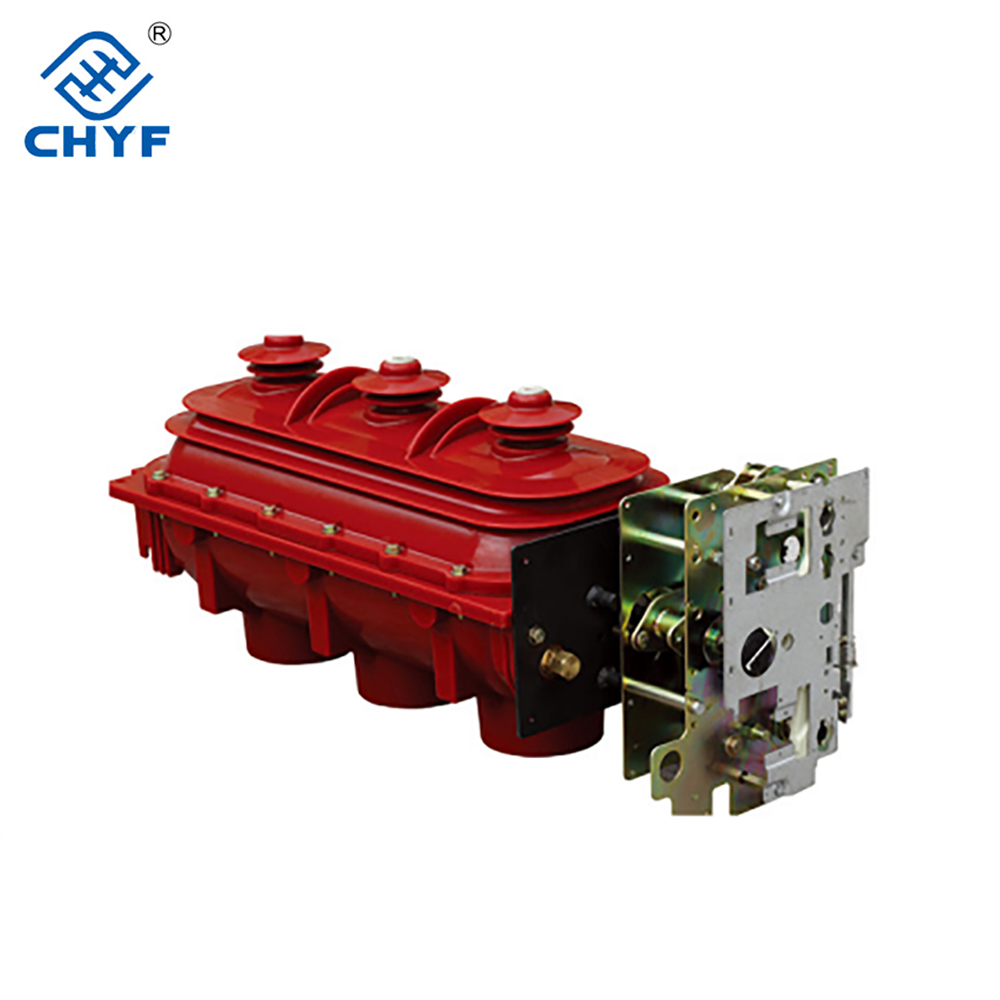

FLN36-120 is a switch with closing, opening and grounding function.0.05 MPa SF6 gas is filled into the epoxy shell with strengthening structure to realize these three functions with the least parts, which guarantees the quality and improve the reliability. It is maintenance-free and could run for 20 years safely in the normal condition.
Functions and features
1.The load switch odopts the structure with double fracture and rotary dynamic contact. There are three states: closing. opening and grounding.
2. SF6 gas is adopted as the arc extinguishing and insulating medium. The maior loop is sealed in the epoxy shell and the conductivity would not be influenced by the surroundings.
3. It is a switch with good safety performance. If there is orcing inside the switchgear, the weak spot of the shell would be broken and the arc discharge shutter would be broken and the over pressure airflow would be released to the outside to ensure the safety inspection.
4. Load switch is installed in the epoxy shell ful with SF6 gas with closing. opening and grounding function. It is in a state of interlocking broke with compact structure and high security.
5. I is small light, mainienance-free and easy to operate.
| Item | Unit | Data | |
| Rated volloge | KV | 12 | |
| Rated frequency | Hz | 50 | |
| Rated current | A | 630 | |
| Rated peak withstand current | KA | 50 | |
| 4s rated short time withstand current | KA | 20 | |
| Rated making current | KA | 50 | |
| Rated breaking current | Active load breaking current | 630 | |
| Breaking current loop | A | 630 | |
| Cable charging breaking current | A | 10 | |
| 1min power frequency withstond voltoge (phase to phase,to eorth,frocture) | KV | 42/48 | |
| Lighiming impulse wlthstond vollage (phase to phase,to earth,fracture) | KV | 75/85 | |
| Relative pressure of SF6 gas (20℃ GP) | MPa | ≤0.04 | |
| Raled operating voltage (electric) | V | AC220,DC220 | |
| Raled voltoge of shunt release | V | AC220,DC221 | |
| Average opening speed | M/S | 3.5±1.5 | |
| Average closing speed | M/S | 3.5±1.6 | |
| Three-phase points,dosing phase of the same | ms | ≤3 | |
| The main circuit resistance | μΩ | ≤120 | |
| Manual maximum torque | N.m | ≤160 | |

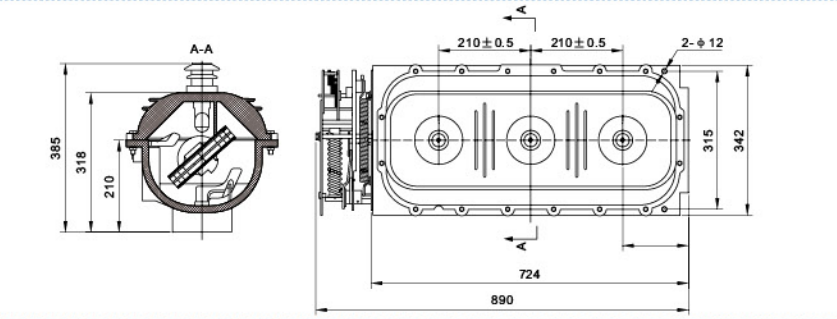

| Phase to phase center distonce | mm | 210±0.5 | |
