- Rated voltage:12KV
- Rated current:630A
- Rated frequency:50Hz
- Place of Origin:CN;YUN
- Certification:CE
- Brand Name:YUFENG
- Model Number:YFLS12
- Max. Current:630A
- Max. Voltage:12KV

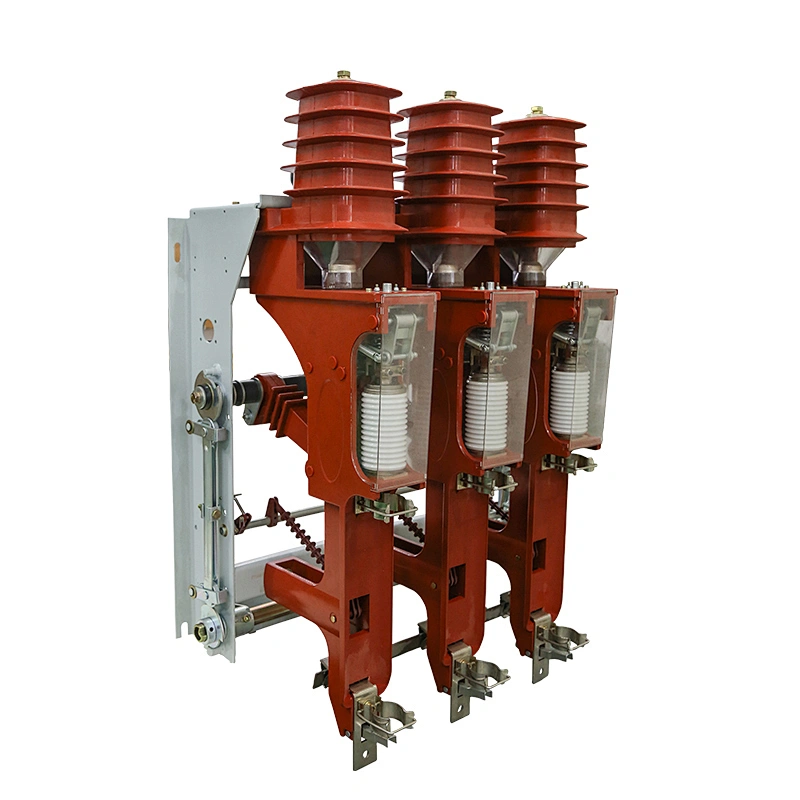

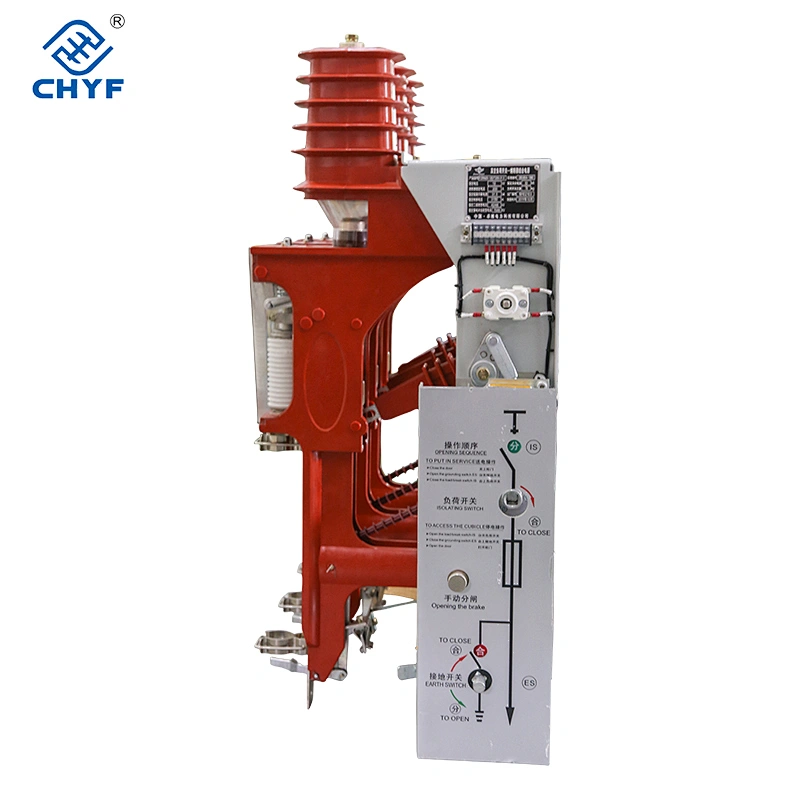

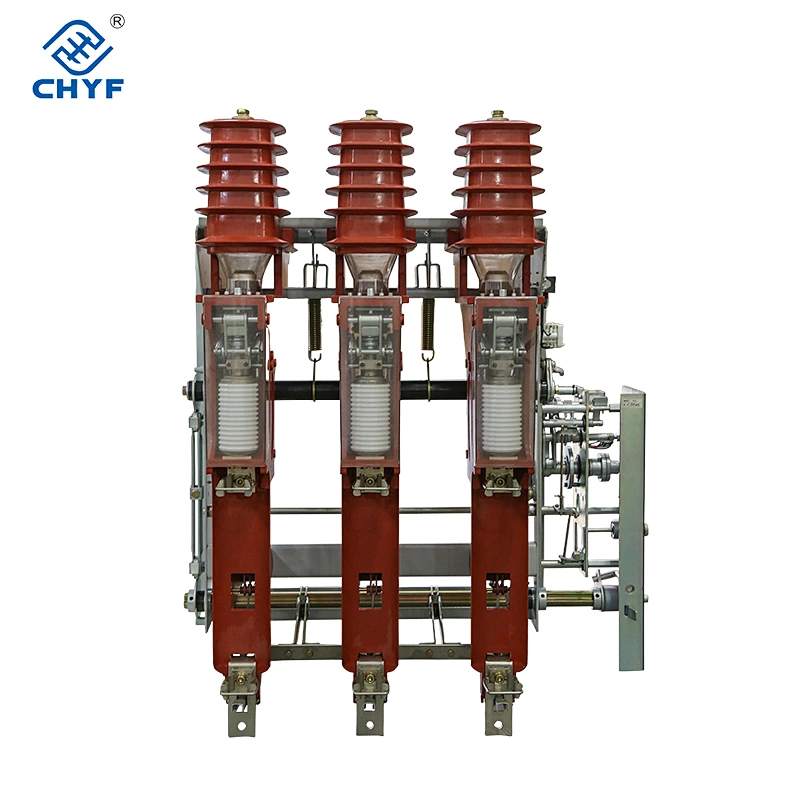

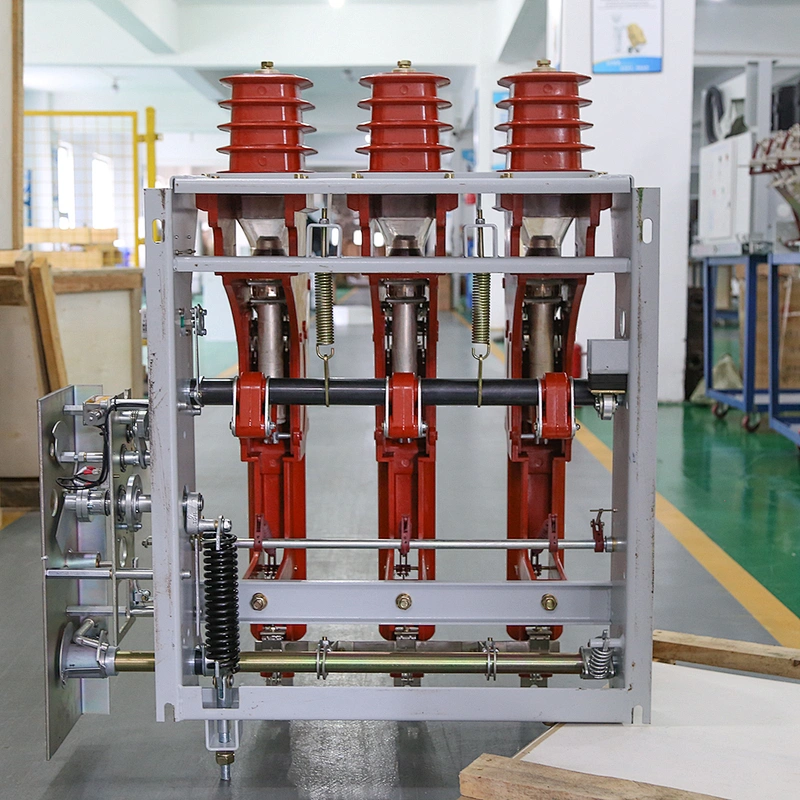

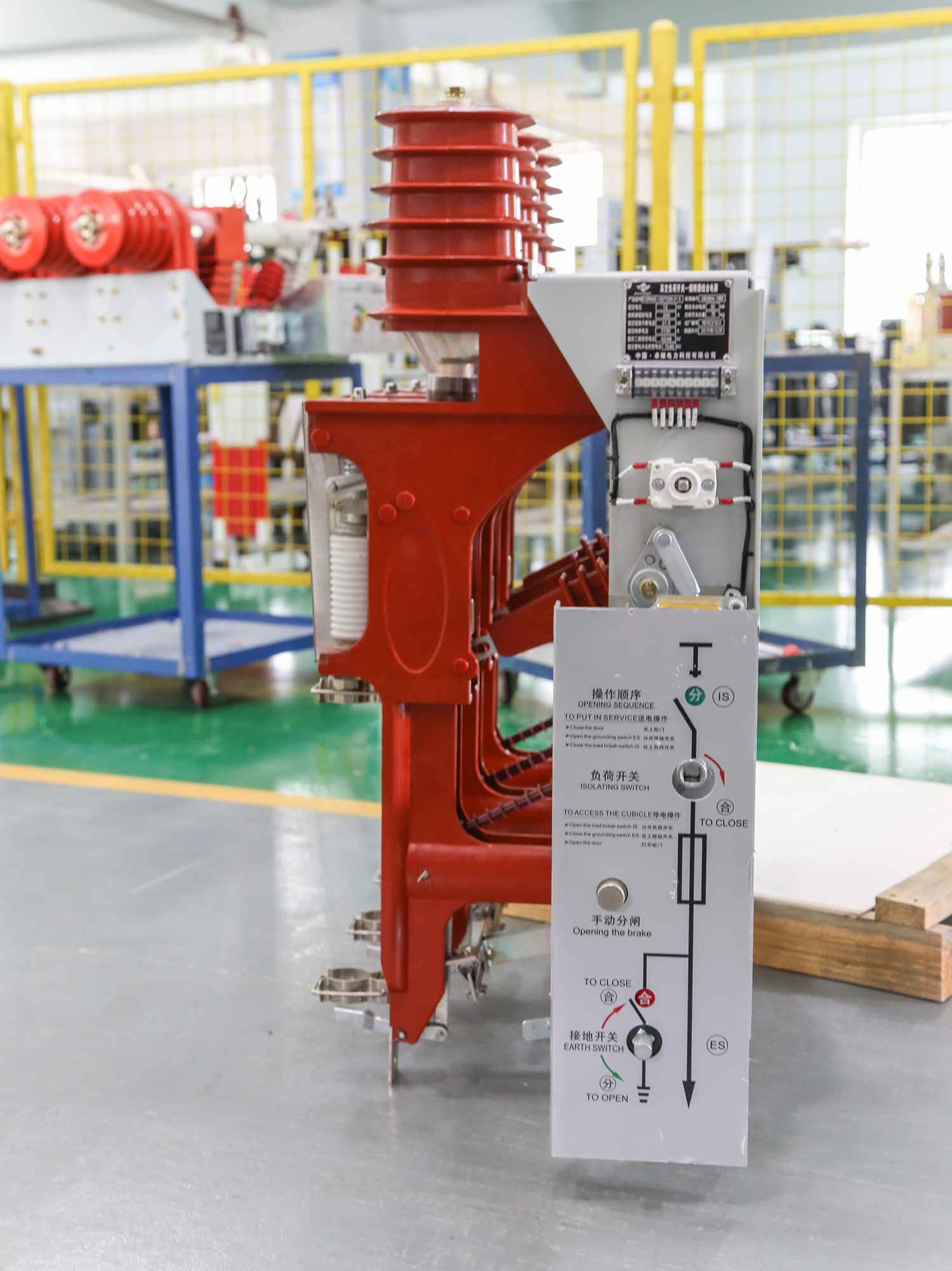

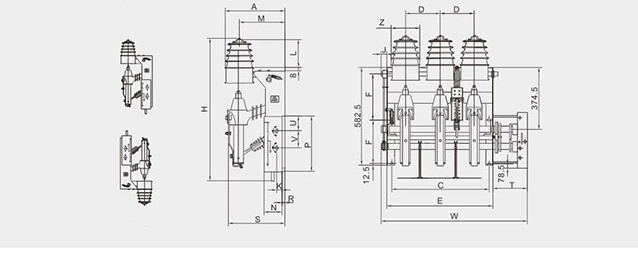

Indoor high voltage load break switch
Application
It is used in the ring network city distribution and industrial equipment of 12KV and three-phase AC 50Hz to cortrol load and short-circuit. Because the switch with fuse protecting transformer etc more reliably than circuit breaker. It is especialy suitable for ring network clouble radial distribution and package substation.
Standard
a. GB3804-90 <<3-63KV AC H.V load switch>>.
b. GB16926-1997 <
c. GB1995-89 <
Operating environmental conditions:
1.Altitude: ≤1000m
2.ambient air temperature: not higher than +40°C,not lower than-25°C
3.Relative humidity: daily mean is not more than 95%, monthly mean is not more than 90%
4.Earthquake intensity: not more than 8°
5.no fire, explosion hazard, chemical etching and intense vibration
6.Pollution grade: II
7. Ambient air shouldn't be polluted by corrosive or flammable gas and vapor.
| No. | Item | Unit | Data | ||
| FN25-12DL/T630-20 | FZRN25-12DL/T200-31.5 | ||||
| 1 | Rated voltage | KV | 12 | ||
| 2 | Rated current | A | 630 | 200 | |
| 3 | Rated frequency | HZ | 50 | ||
| 4 | Ratedinsuloion level | 1min power frequency withstand voltage | KV | Arc chamber between open contacts 30;To earth,phase to phase 42; Isolation between open contacts 48 | |
| Lightning impulse withstand voltage | KV | To earth,phase to phase 75;Isolation between open contact 85 | |||
| 5 | Rated short-time withstand current | KA | 20 | ||
| 6 | Rated short circuit duration | S | 4 | ||
| 7 | Rated peak withstand current | KA | 50 | ||
| 8 | Rated active load breaking current | A | 630 | ||
| 9 | Rated closed-loop breaking current | A | 630 | ||
| 10 | Rated cable charging breaking current | A | 10 | ||
| 11 | Rated breaking no-load transformer capacity | KVA | 1600 | ||
| 12 | Rated short-circuit breaking current | KA | - | 31.5 | |
| 13 | Rated transfer current | A | 2000 | ||
| 14 | Fuse type | SDLAJ-12,XPNTI-12 | |||
| 15 | Impactor output energy | J | 1+0.5 | ||
| 16 | Rated short circuit closing current | KA | 80(Expected peak) | ||
| 17 | Earthing switch rated short-fime withstand current | KA | 20 | ||
| 18 | Earthing switch rated short circuit duration | S | 2 | ||
| 19 | Earthing switch rated peak withstand current | KA | 50 | ||
| 20 | Auxiliary circuit rated voltage | V | =220V,=110V | ||
| 21 | Mechanical life | Times | 10000 | ||
