- Product name:vacuum circuit breaker
- Model:ZW32-12~24kv ZW43-12~24kv
- Rated voltage:12KV/24KV
- Rated current:630A/400A/200A
- Rated frequency:50/60 Hz
- Rated short circuit breaking current:20/16/12.5
- Mechanical Life:10000 Times
- Material:Copper
- Certificate:ISO9001
- Customized:Accept special order
- Type:High Voltage
- Poles Number:3
- Place of Origin:CN;ZHE
- Brand Name:YUFENG/OEM
- Model Number:ZW32-12~24kv ZW43-12~24kv
Application

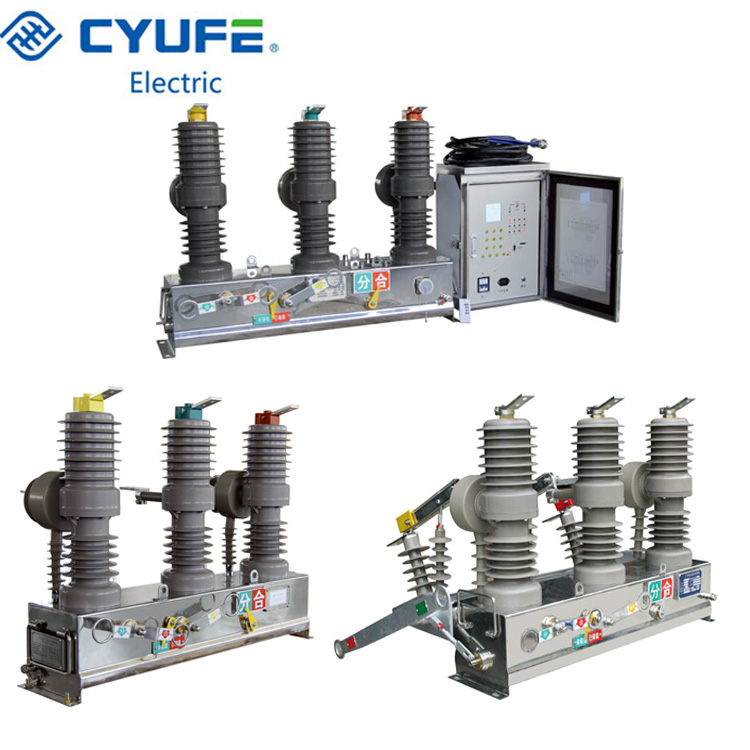

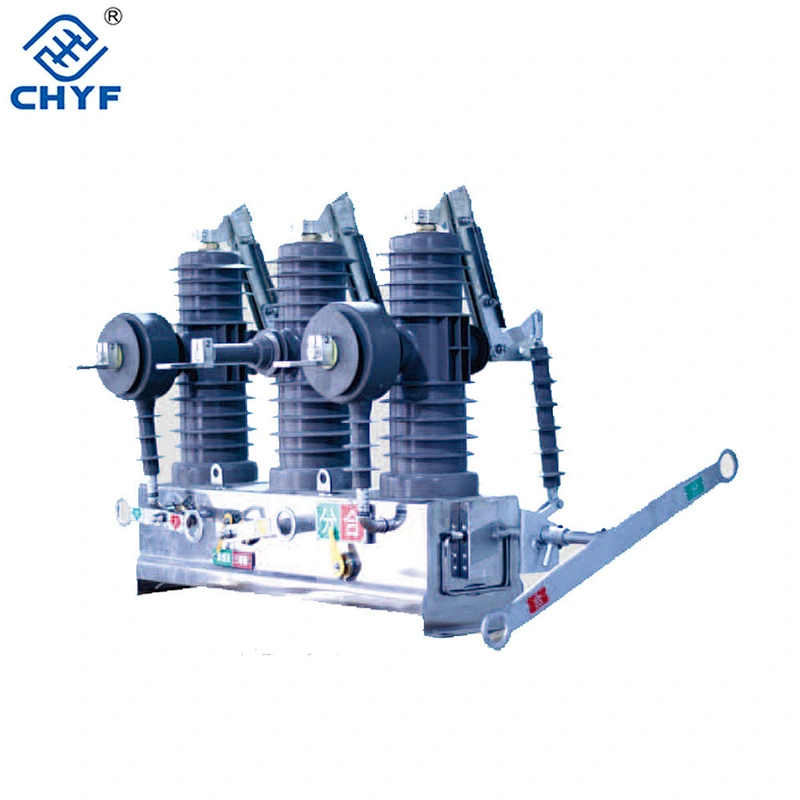

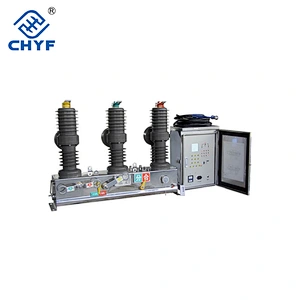

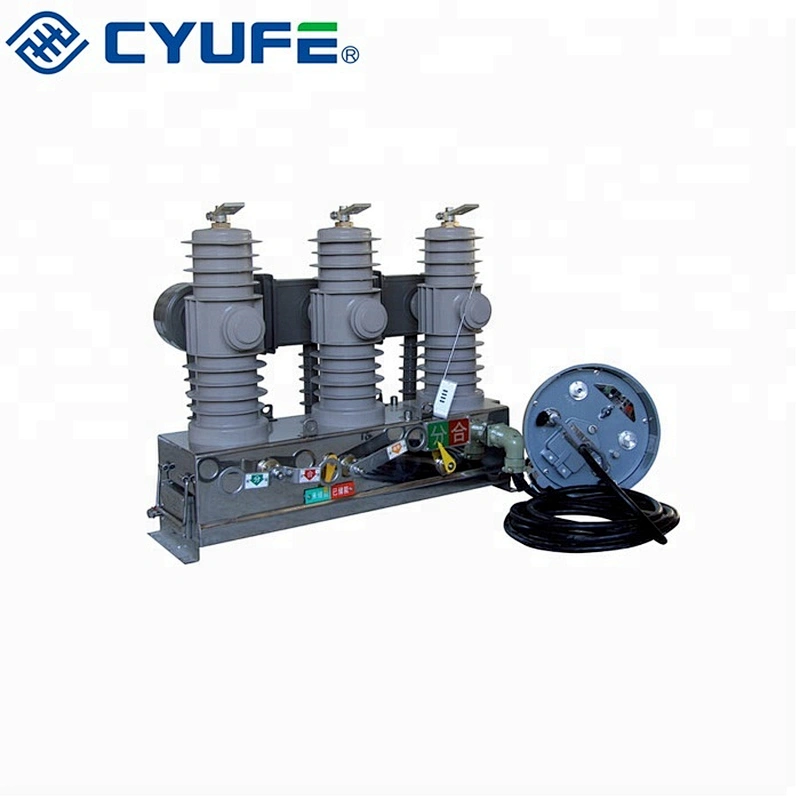

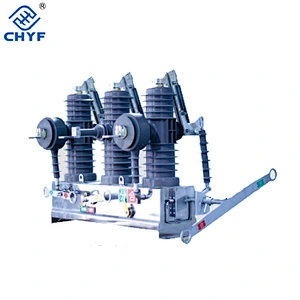

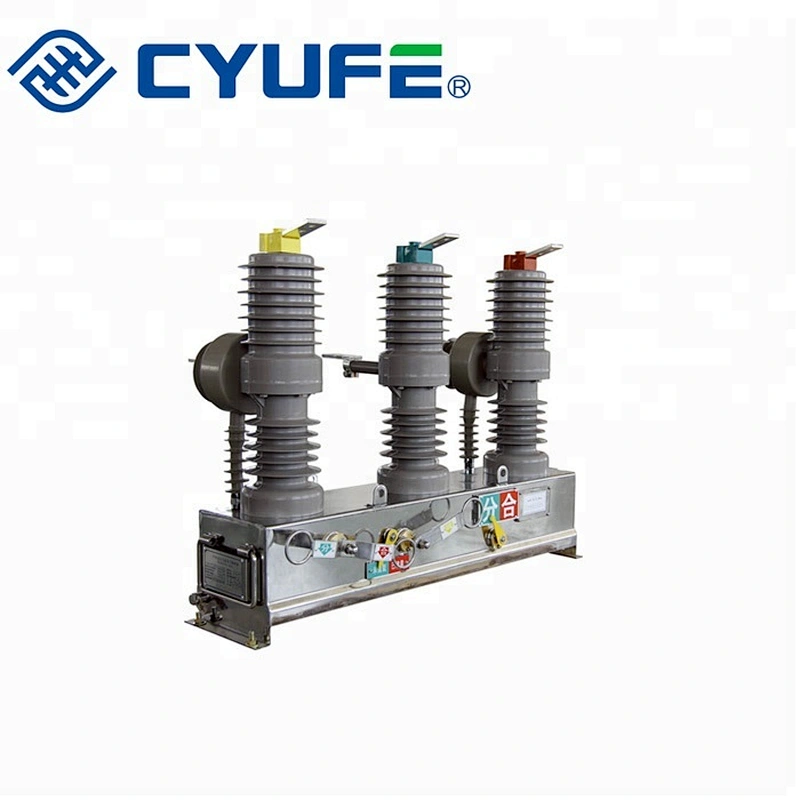

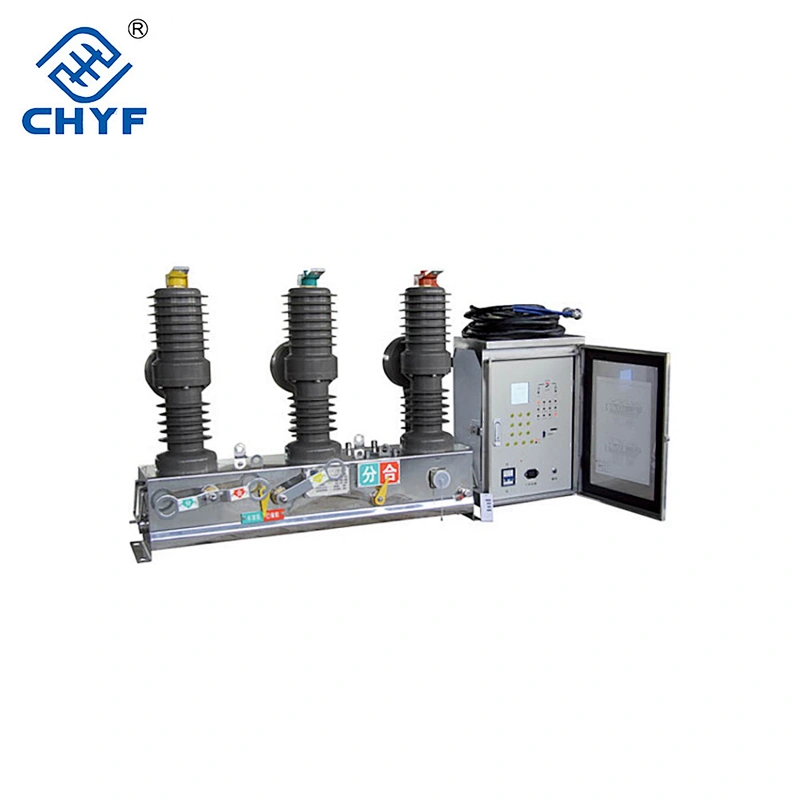

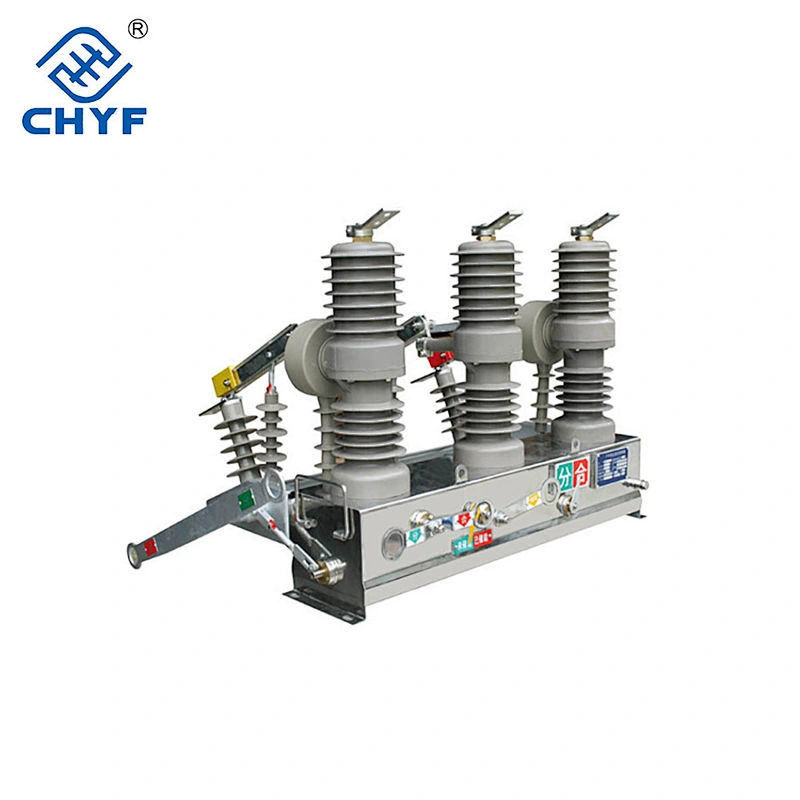

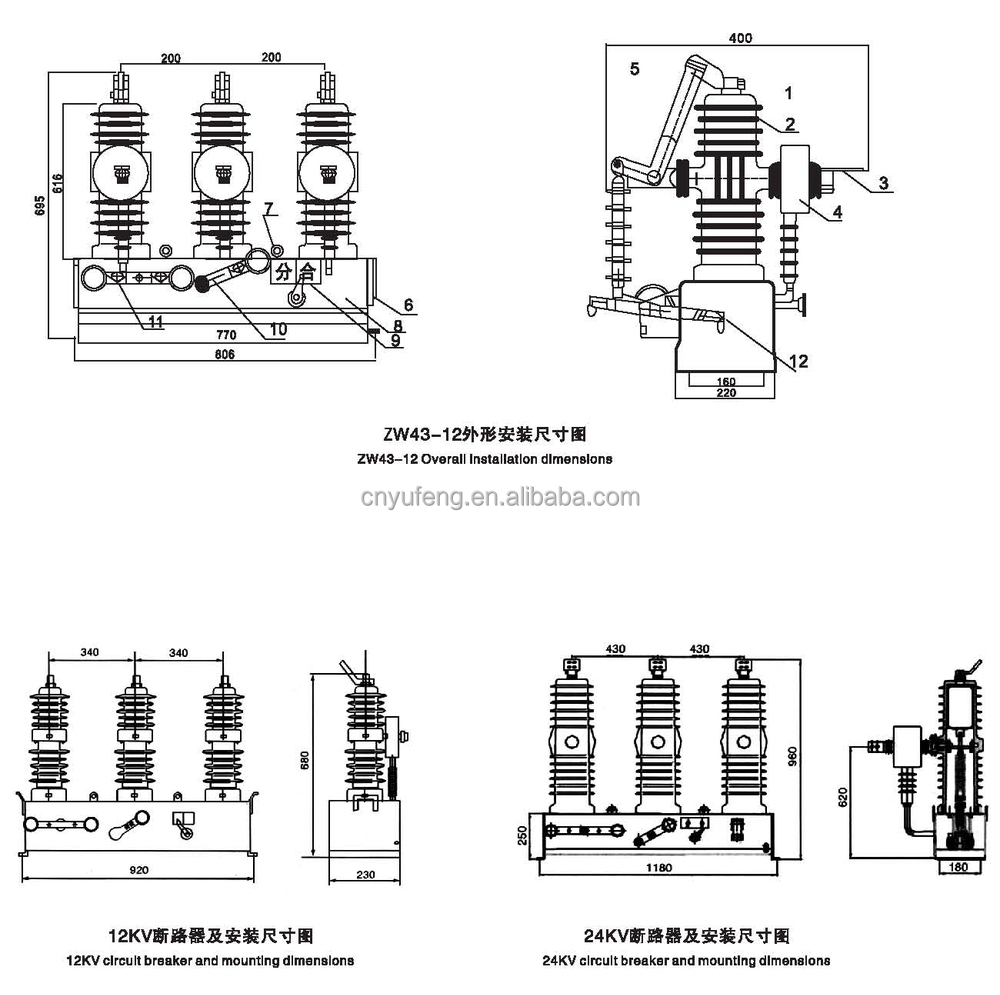

ZW32-24high voltage vacuum circuitis a outdoor switch equipment of power system which ratingtri-phase AC 50Hz, 24kV.
It is used to make and break load current, overload current and short-circuit current. Act as the protecting and controlling unit for substation and industrial mining enterprises’ equipments. Applicable to locations that need frequent operating in rated current or under repeatedly on/off shortcircuit current.
As the power grid's breaking switch, it can realize the distribution network automation after installation of the controller.
| NO. | Items | Unit | Data | ||
| 1 | Rated voltage | KV | 12 | 24 | |
| 2 | Rated insulation level | 1min power frequency withstand voltage | 42 | 65 | |
| 34 | 50 | ||||
| Lightning impulse withstand voltage (peak) | 75 | 1250 | |||
| 3 | Rated Current | A | 630;400;200 | 630;400;200 | |
| 4 | Rated short circuit breaking current | KA | 20;16;12.5 | 20;16;12.5 | |
| 5 | Rated operating sequence | o-0.3s-co-180s-co | o-0.3s-co-180s-co | ||
| 6 | Rated short-circuit the number of | Times | 30 | 30 | |
| 7 | Rated short-circuit current (peak) | KA | 50 | 50 | |
| 8 | Rated peak withstand current | ||||
| 9 | Rated short-circuit withstand current | 20 | 20 | ||
| 10 | Rated short circuit duration | S | 4 | 4 | |
| 11 | Opening time (SHT) | Maximum operating voltage | ms | 15-50 | 15-50 |
| Rated operating voltage | |||||
| Minimum operating voltage | 30-60 | 30-60 | |||
| 12 | Closing time | ms | 25-50 | 25-50 | |
| 13 | Full-off time | ≤100 | ≤100 | ||
| 14 | Arcing time | 20 | 20 | ||
| 15 | Mechanical life | Times | 10000 | 10000 | |
| 16 | Charging motor rated input power | W | 40 | 40 | |
| 17 | Rated operating voltage and auxiliary voltage | V | DC220,110,24 | DC220,110,24 | |
| AC220,110,24 | AC220,110,24 | ||||
| 18 | Rated voltage of the storage time | S | ≤10 | ≤10 | |
| 19 | Overcurrent release | Rated Current | A | 5 | 5 |
| Trip current Accuracy | % | ±10 | ±10 | ||
