- Motor ratation speed:5R/Min
- power voltage:AC/DC220V, AC/DC110V
- Rated motor voltage:DC220V, DC110V
- Place of Origin:CN;ZHE
- Certification:ce
- Brand Name:YUFENG
- Model Number:DDJN15-24
- Max. Voltage:12kv,24kv

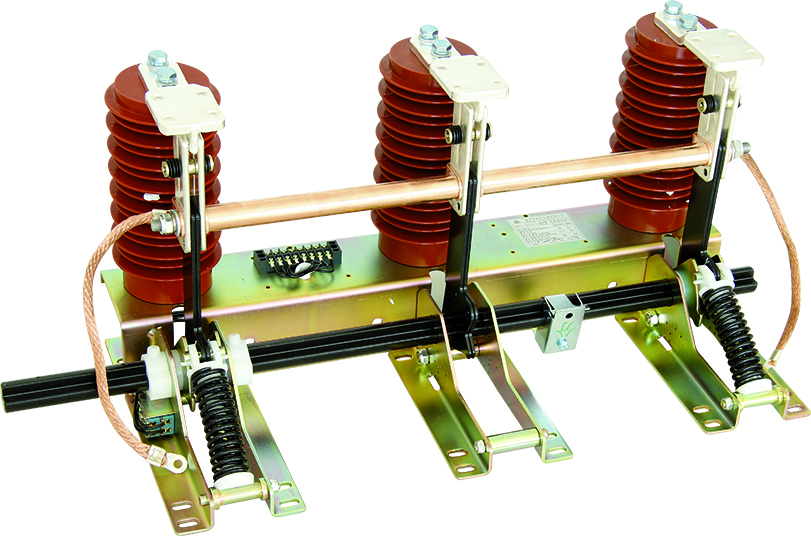

high voltage earthing switch for switchgear details listed as belows:
1. Model No.: JN 15-24/31.5 HV earthing switch
2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3. Application: KYN61-40.5 HV switchgear and various types HV switchgear
4. Main function: Used for earthing protection
5. Central distance between poles: 210mm

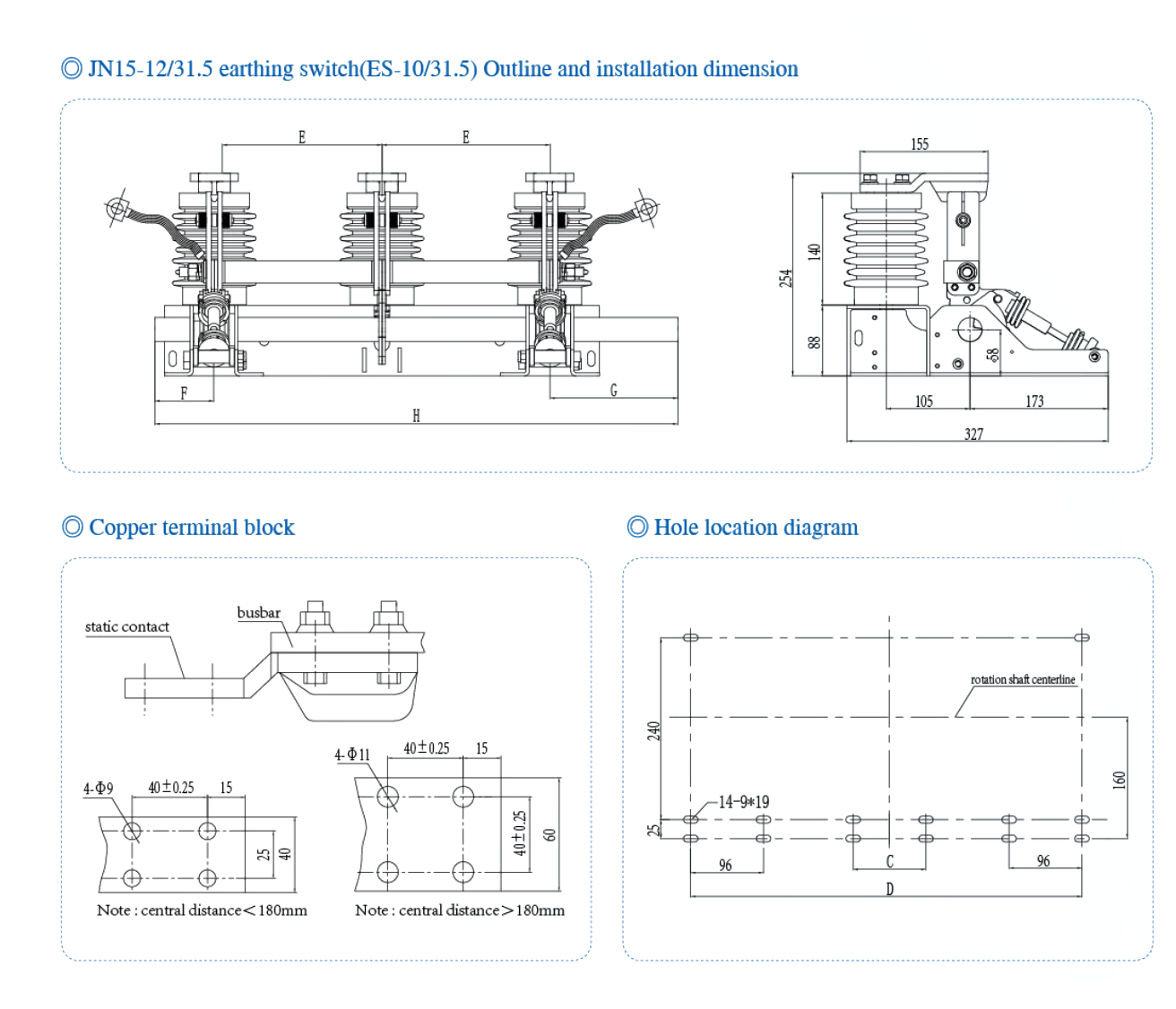

![HG[RO1Q71LRO4B}0$])W[W5.png](https://icbu-1306369054.cos.ap-shanghai.myqcloud.com/describe/img/17380246016/1622016310196H9f95b73162a24c57a9deed48545491feL.png?imageMogr2/format/webp/auto-orient)
Unit: (mm)
| Specification | E | F | G | H | D | C |
| JN15-24/31.5-210 | 210 | 75 | 160 | 655 | 516 | |
| JN15-24/31.5-220 | 220 | 75 | 160 | 675 | 536 | |
| JN15-24/31.5 230 | 230 | 75 | 160 | 695 | 556 | 96 |
| JN15-24/31.5-250 | 250 | 75 | 160 | 735 | 596 | 96 |
| JN15-24/31.5-275 | 275 | 75 | 185 | 810 | 646 | 96 |
| Item | Item | data | |
| Rated voltoge | KV | 24 | |
| Rated short time withstand current | KA | 31.5 | |
| Rated short circuit withstand fime | S | 4 | |
| Rated short circuit making current | KA | 80 | |
| Rated peak withstand current | KA | 80 | |
| Rated insulation leve | 1 min power frequency withstand voltoge | KV | 65 |
| Lightning impulse withstand voltage | 95 | ||
| Mechanism life | time | 2000 | |
