- Rated voltage:24KV
- Rated current:31.5KA
- Mechanical Life:2000 Times
- Rated short circuit withstand time:4S
- Rated peak withstand curent:80KA
- Place of Origin:CN;ZHE
- Certification:ce
- Brand Name:YUFENG
- Model Number:JN15-24/31.5-275
- Max. Current:31.5KA
- Max. Voltage:24KV

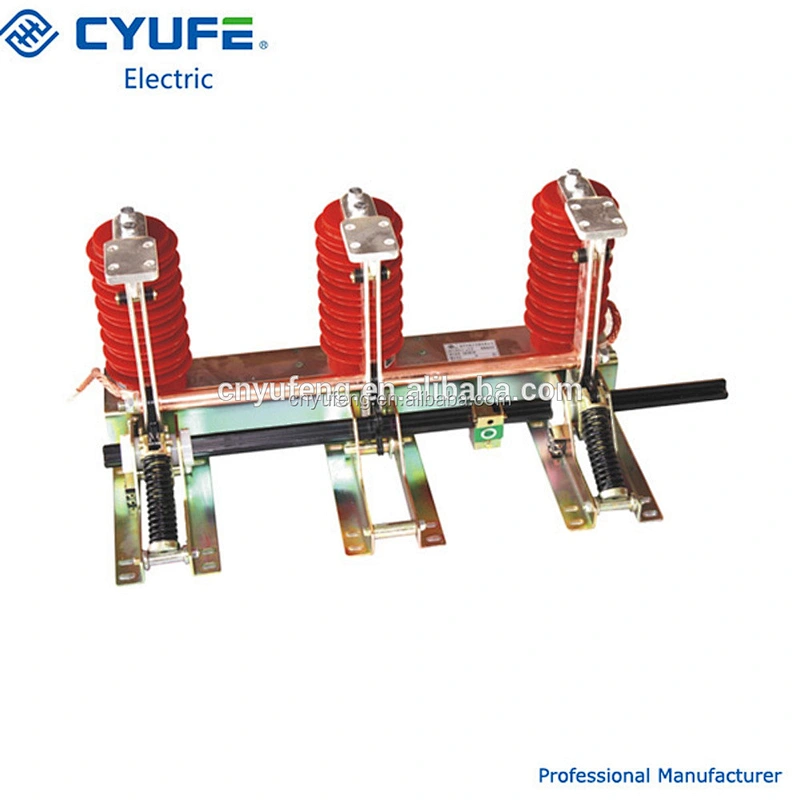

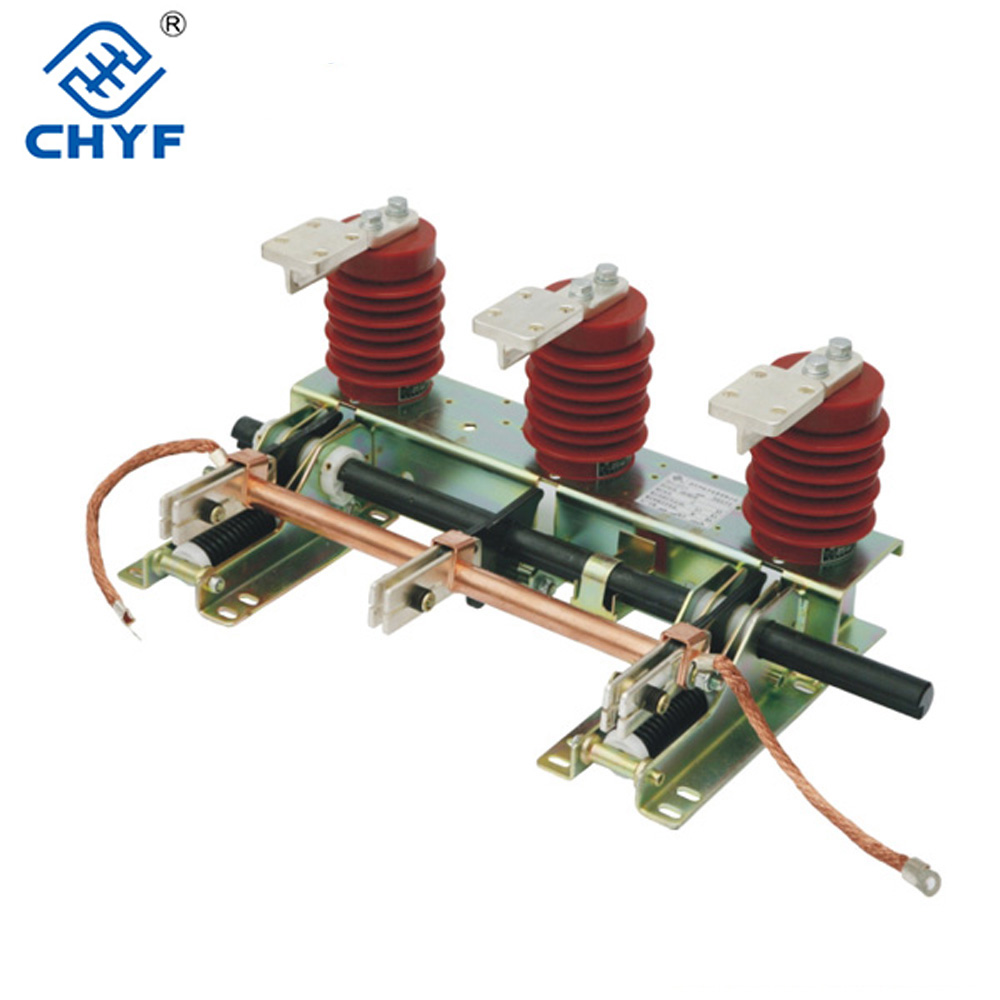

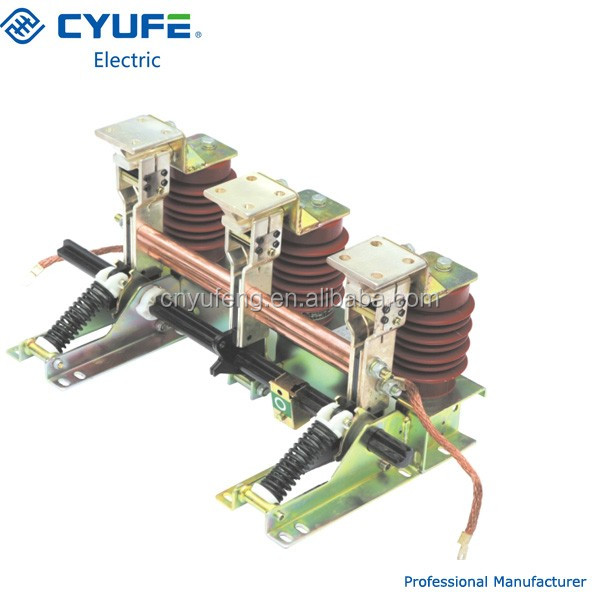

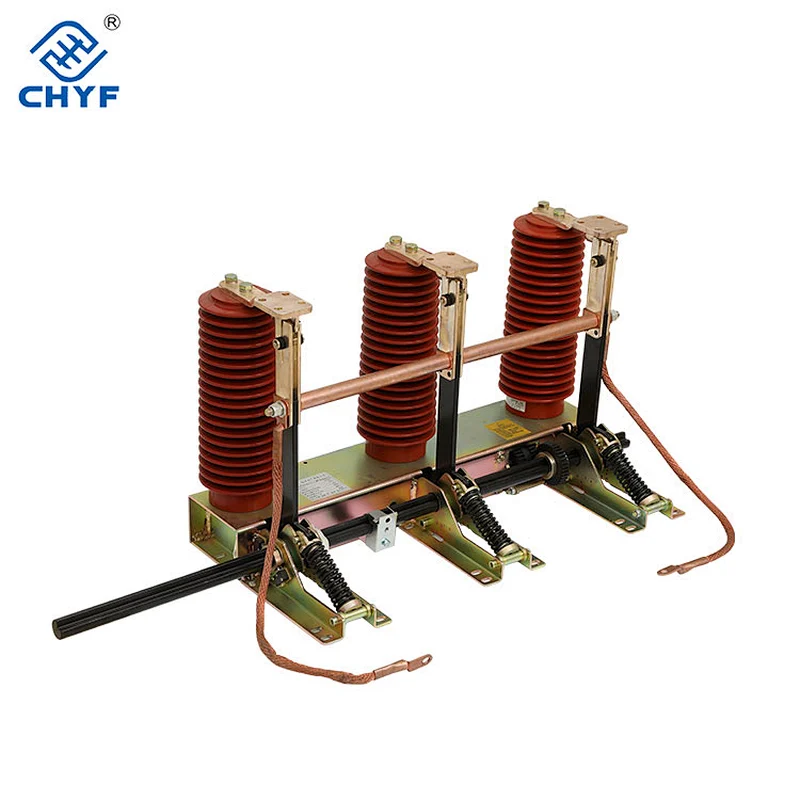

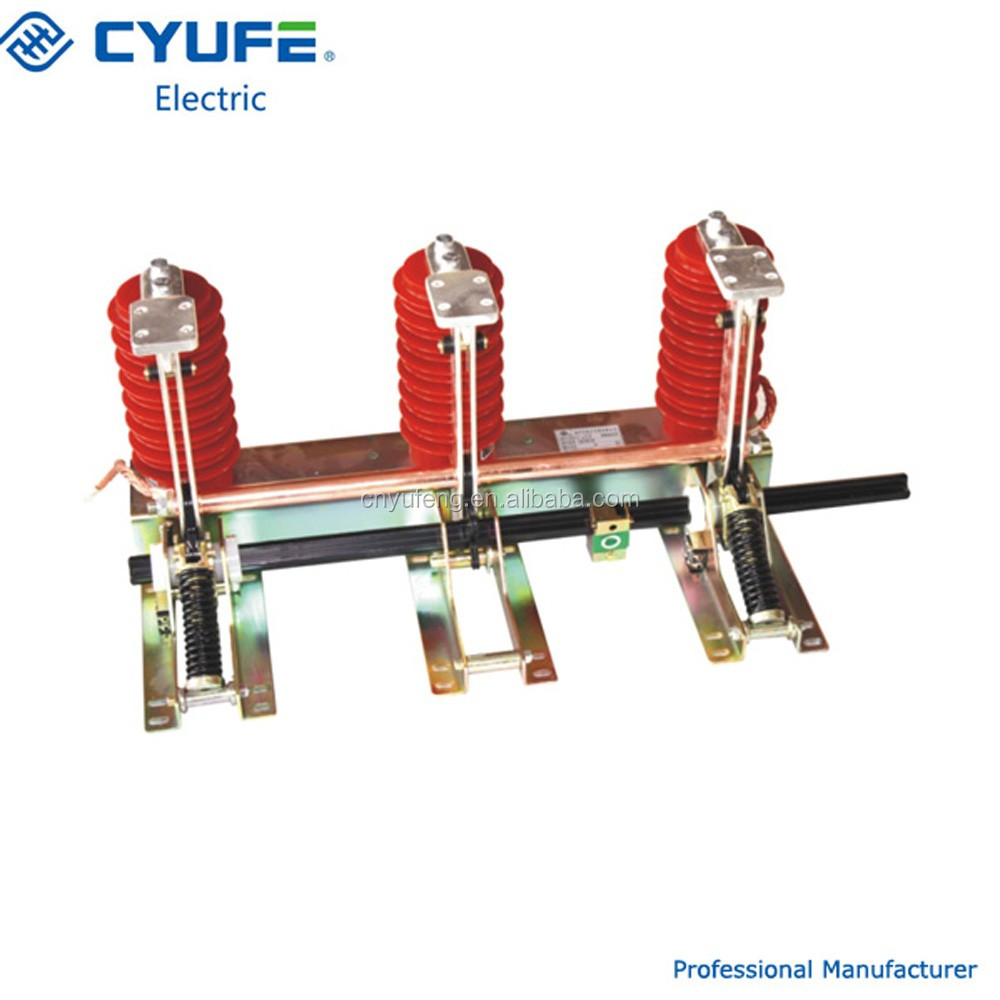

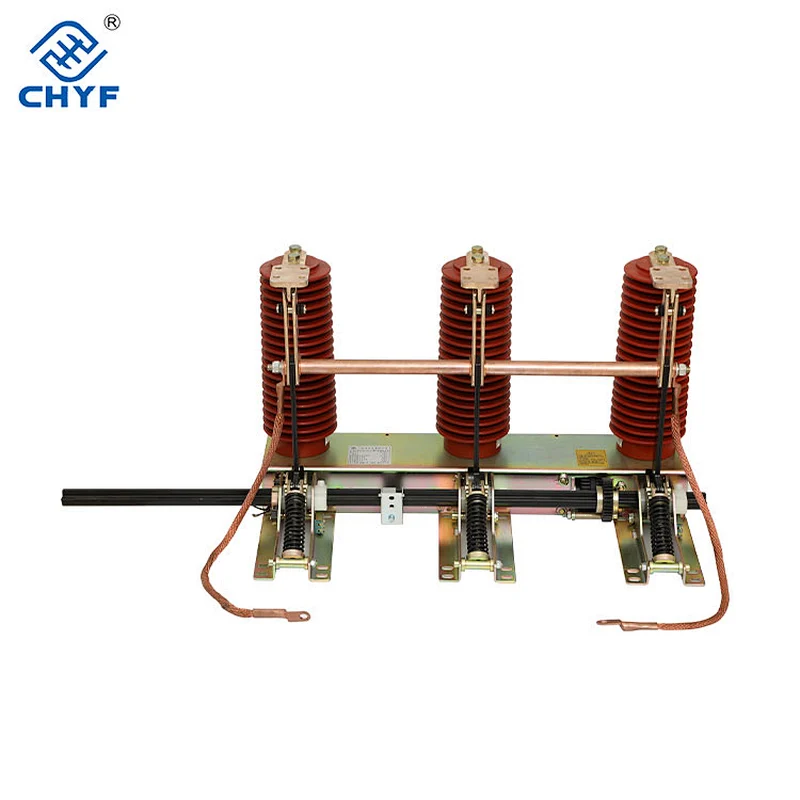

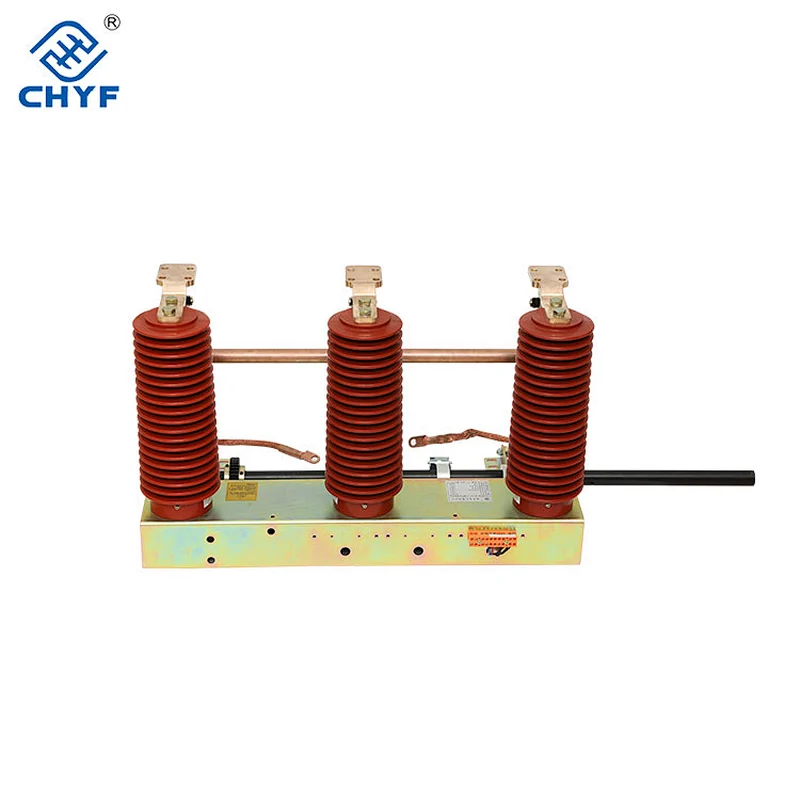

JN15-12/31.5 Indoor 50HZ HV Motor Drive 12KV Earthing Switch
1. Model No.: JN 15-24/31.5 HV earthing switch
2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3. Application: KYN61-40.5 HV switchgear and various types HV switchgear
4. Main function: Used for earthing protection

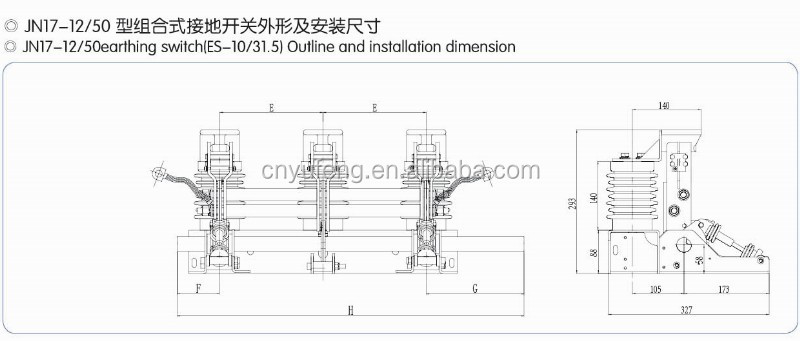

5. Central distance between poles: 275mm
| Item | Unit | Data | |
| Rated voltage | KV | 12 | |
| Rated short time withstand current | KA | 31.5 | |
| Rated short circuit withstand time | S | 4 | |
| Rated short circuit making current | KA | 80 | |
| Rated peak withstand current | KA | 80 | |
| 1 min power frequency withstand voltage | KV | 42 | |
| Rated insulation level | Lightning impulse withstand voltage | 75 | |
Mecanism life | Time | 2000 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.com
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
