- Product name:Earthing switch
- Rated current:40.5KA
- Rated voltage:12KV
- rated short time withstand current:31.5KA
- rated short circuit withstand time:4S
- Certificate:ISO9001: 2000
- rated short circuit making current:80
- Poles number:4
- 1 min power frequency withstand voltage:42KA
- Mechanical life:2000 Times
- Place of Origin:CN;ZHE
- Certification:ce
- Brand Name:YUFENG
- Model Number:EK6-12/31.5 12KV
- Max. Current:31.5KA
- Max. Voltage:12KV

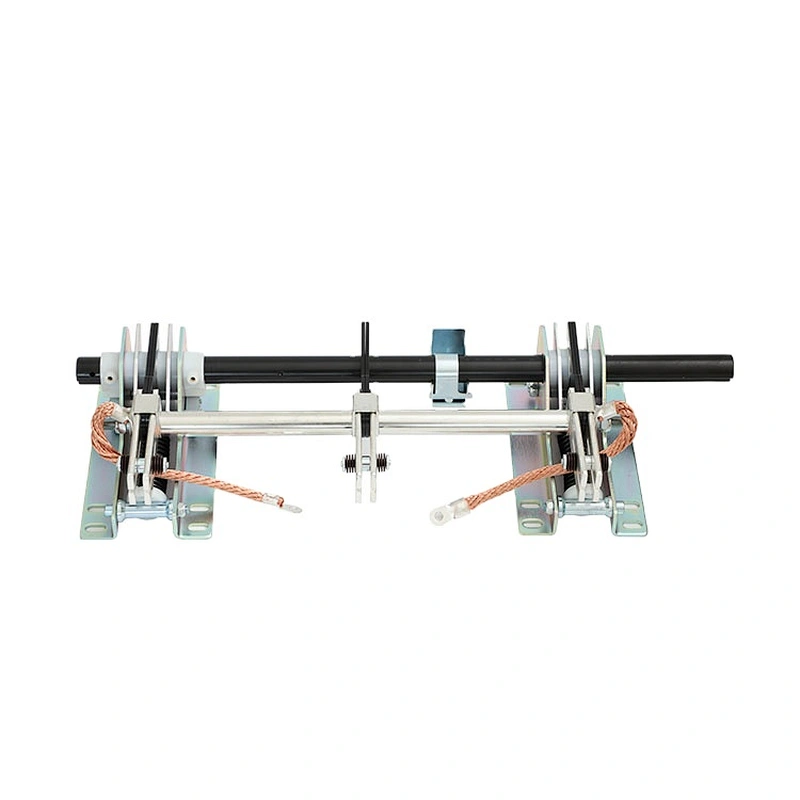

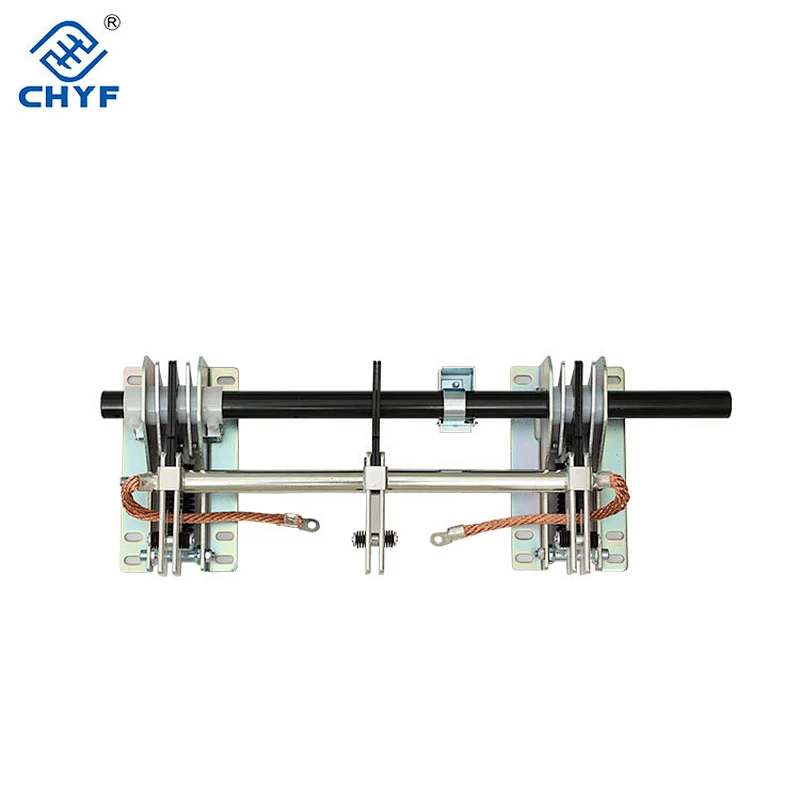

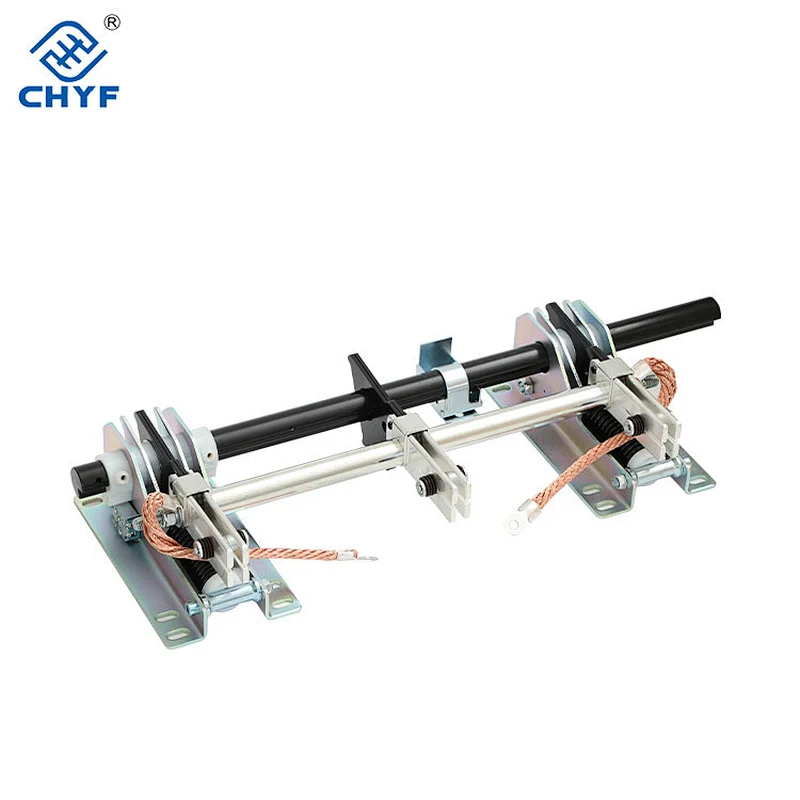

EK6-12/31.5 12KV earthing switch
1. Model No.: EK6-12/31.5 12KV HV earthing switch
2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3. Application:KYN-28, KYN61-40.5 HV switchgear and various types HV switchgear
4. Main function: Used for earthing protection

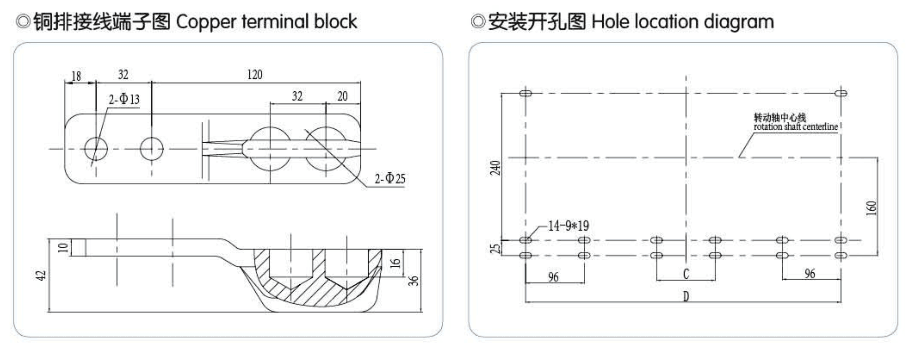

5. Central distance between poles: 280, 300, 350, 400

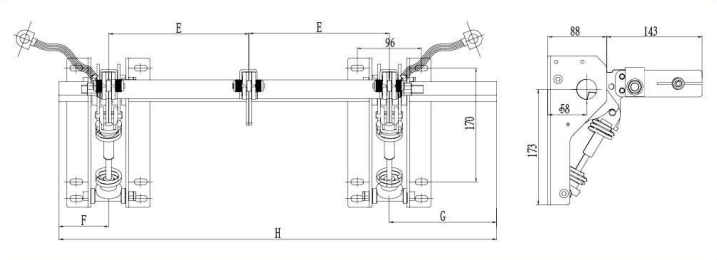

| Specification | E | F | G | H | D | C |
| EK6-12/31.5-165 | 165 | 75 | 160 | 565 | 426 | |
| EK6-12/31.5-180 | 180 | 75 | 160 | 595 | 456 | |
| EK6-12/31.5-200 | 200 | 75 | 160 | 635 | 496 | |
| EK6-12/31.5-210 | 210 | 75 | 160 | 655 | 516 | |
| EK6-12/31.5-220 | 220 | 75 | 160 | 675 | 536 | |
| EK6-12/31.5 230 | 230 | 75 | 160 | 695 | 556 | 96 |
| EK6-12/31.5 - 250 | 250 | 75 | 160 | 735 | 596 | 96 |
| EK6-12/31.5-275 | 275 | 75 | 185 | 810 | 646 | 96 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.com
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
