- Rated voltage:24KV
- Rated current:31.5KA
- Mechanical Life:2000 Times
- Rated short circuit withstand time:4S
- Rated peak withstand curent:80KA
- Place of Origin:CN;ZHE
- Certification:ce
- Brand Name:YUFENG
- Model Number:JN15-24/31.5-275
- Max. Current:31.5KA
- Max. Voltage:24KV
high voltage earthing switch for switchgear details listed as belows:
1. Model No.: JN 15-24/31.5 HV earthing switch
2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3. Application: KYN61-40.5 HV switchgear and various types HV switchgear
4. Main function: Used for earthing protection
5. Central distance between poles: 275mm

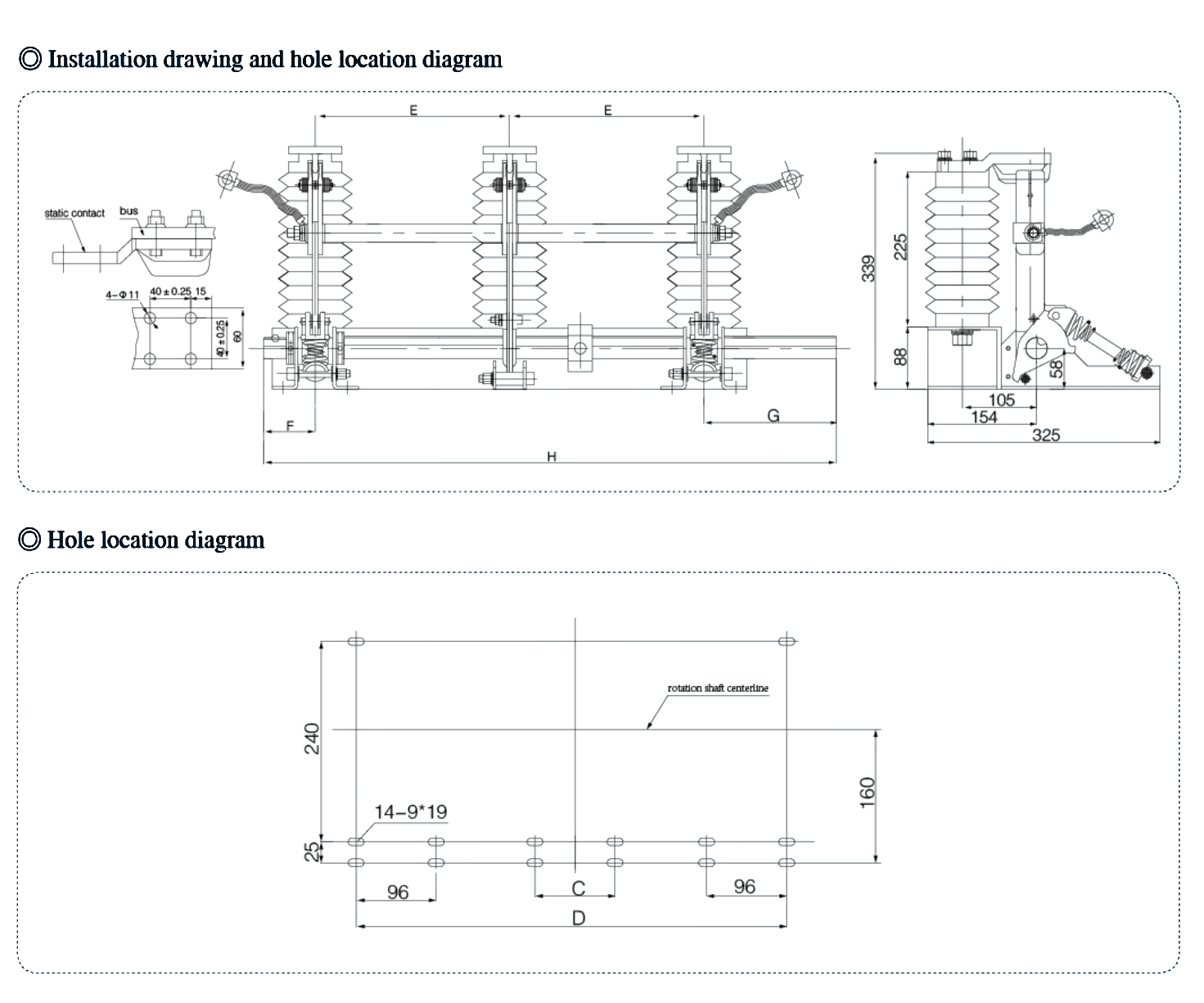

![04I`V%QV}T]7CA5P39AF1OC.png](https://icbu-1306369054.cos.ap-shanghai.myqcloud.com/describe/img/17380246016/1622016318987H44703fb7eaf3435a9e4e86f48ba067d7a.png?imageMogr2/format/webp/auto-orient)
| NO. | Item | Unit | Date | |
| 1 | Rated volage | kV | 24 | |
| 2 | Rated shart time withstand current | kA | 31.5 | |
| 3 | Rated shart circuit withstand time | S | 4 | |
| 4 | Rated short circuit making current | kA | 80 | |
| 5 | Rated peak withstand current | kA | 80 | |
| 6 | Rated insulation level | 1 min power frequency withstand voltage | kV | 65 |
| 7 | Lighting Impulse withdtand voltage | kV | 95 | |
| 8 | Mwchanism life | TIMES | 2000 | |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.com
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
