- Type:High voltage
- Poles number:4
- Rated voltage:24KV
- Rated short time withstand current:31.5KA
- rated short circuit withstand time:4S
- 1 min power frequency withstand voltage:42KA
- Mechanical life:2000 Times
- distance pole:165-180-200
- ambient temperature:-10℃~+40℃
- Certificate:ISO9001-2000
- Place of Origin:CN;ZHE
- Certification:ccc
- Brand Name:YUFENG
- Model Number:EK6-24/31.5
- Max. Current:31.5KA
- Max. Voltage:24KV

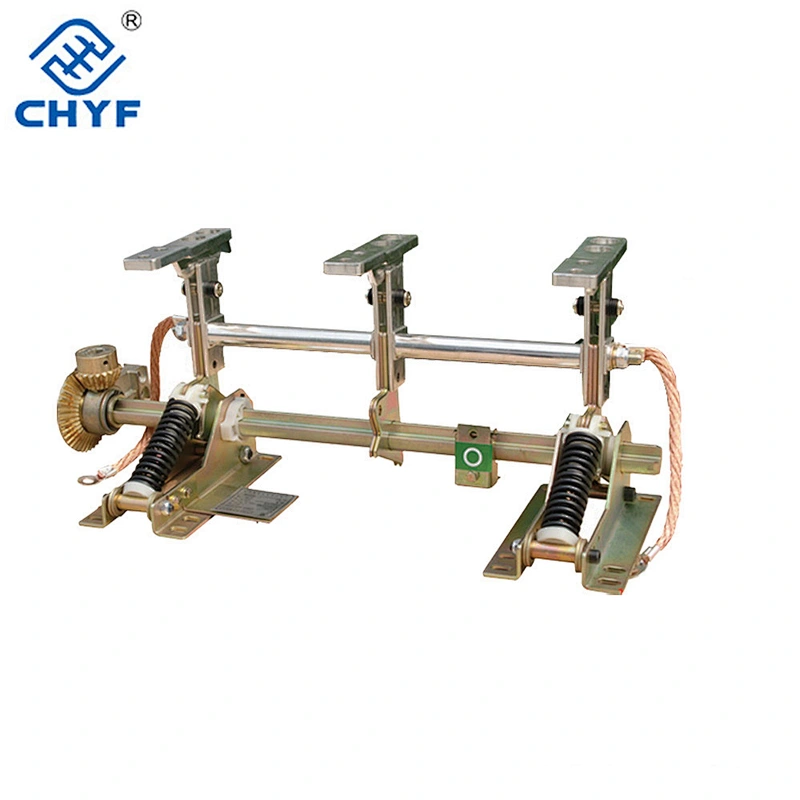

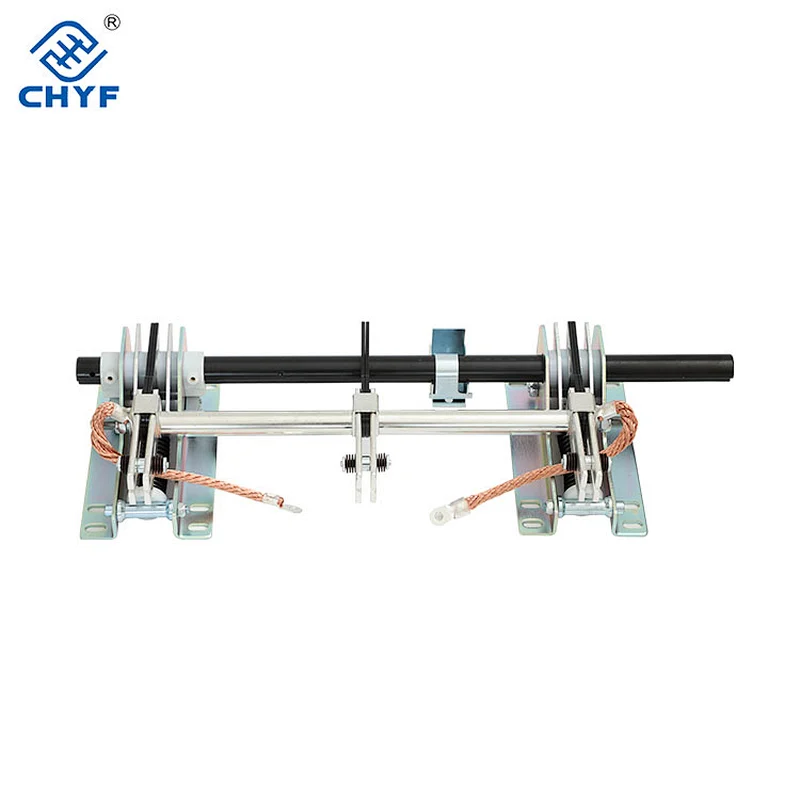

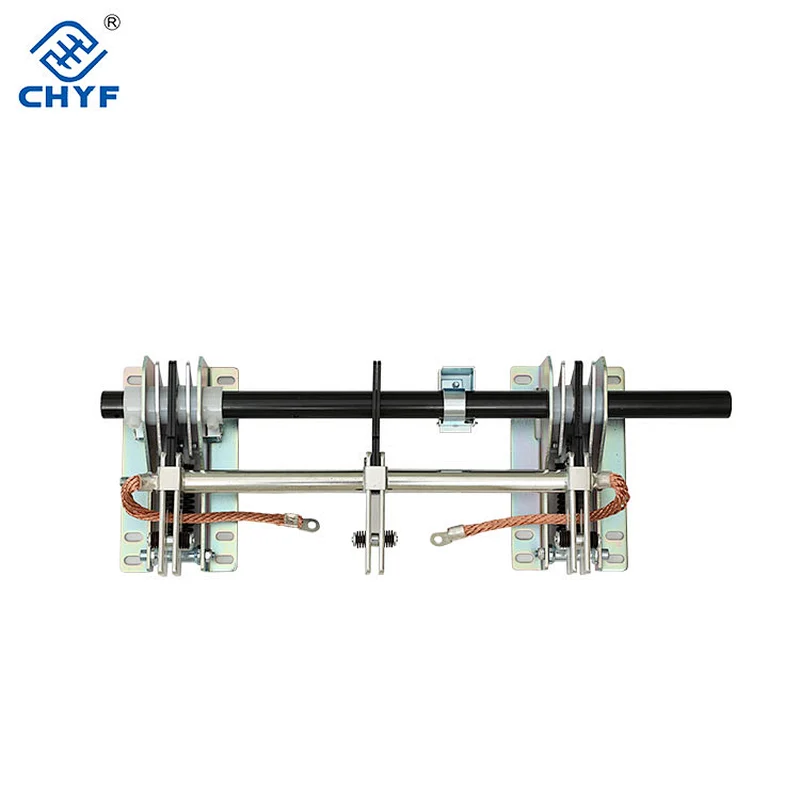

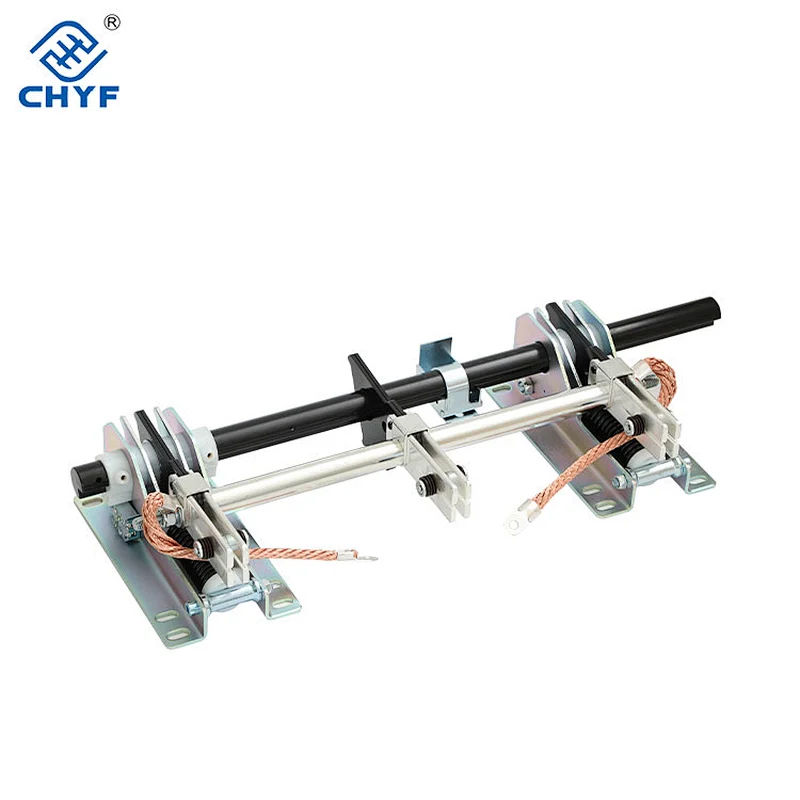

EK6-24/31.5 24KV earthing switch
1. Model No.: EK6-24/31.5 HV earthing switch
2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3. Application:KYN-28, KYN61-40.5 HV switchgear and various types HV switchgear
4. Main function: Used for earthing protection
5. Central distance between poles: 280, 300, 350, 400

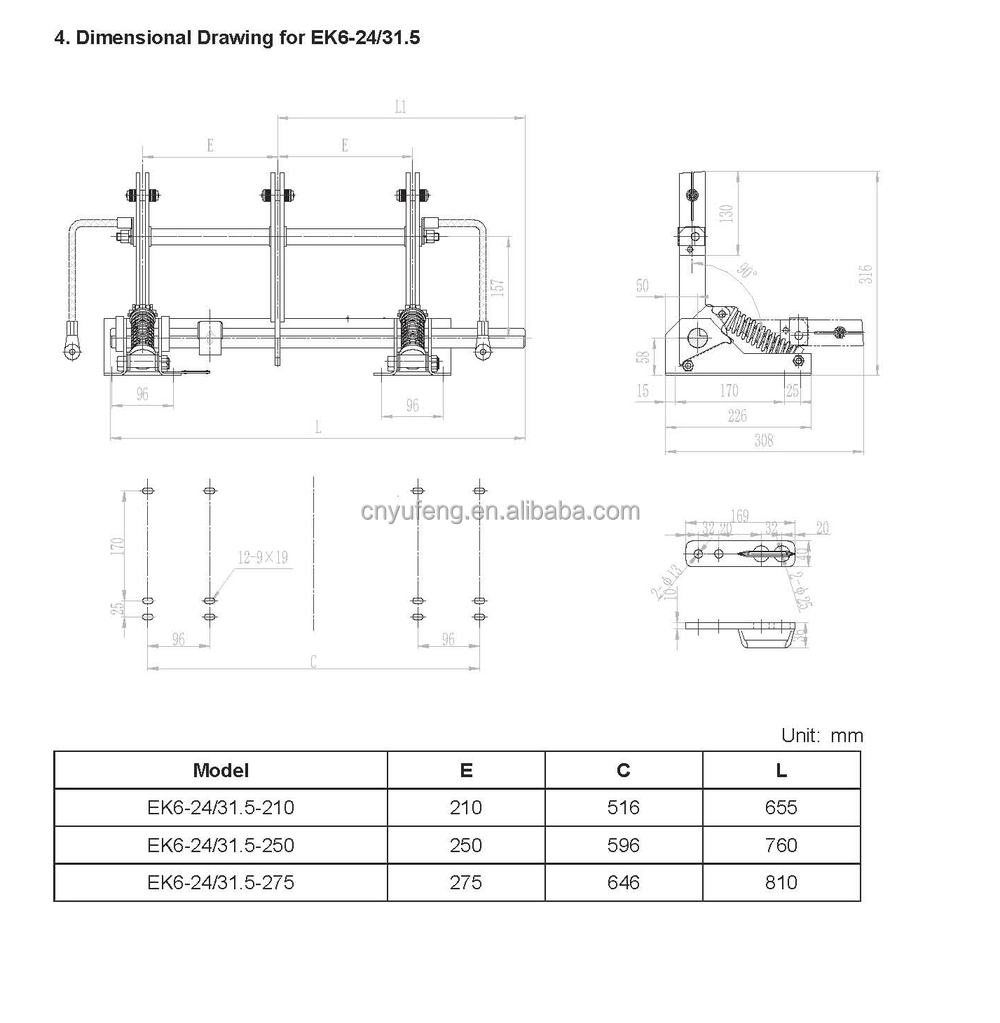

| Model | E | C | L |
| EK6-24/31.5-210 | 210 | 516 | 655 |
| EK6-24/31.5-250 | 250 | 596 | 760 |
| EK6-24/31.5-275 | 275 | 646 | 810 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
