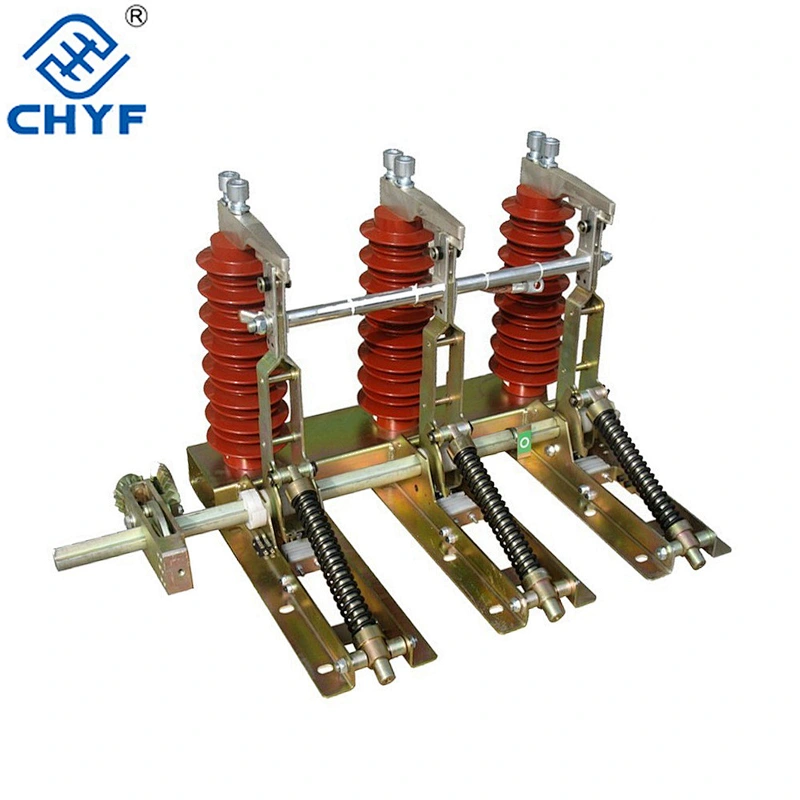

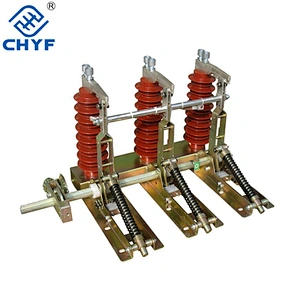

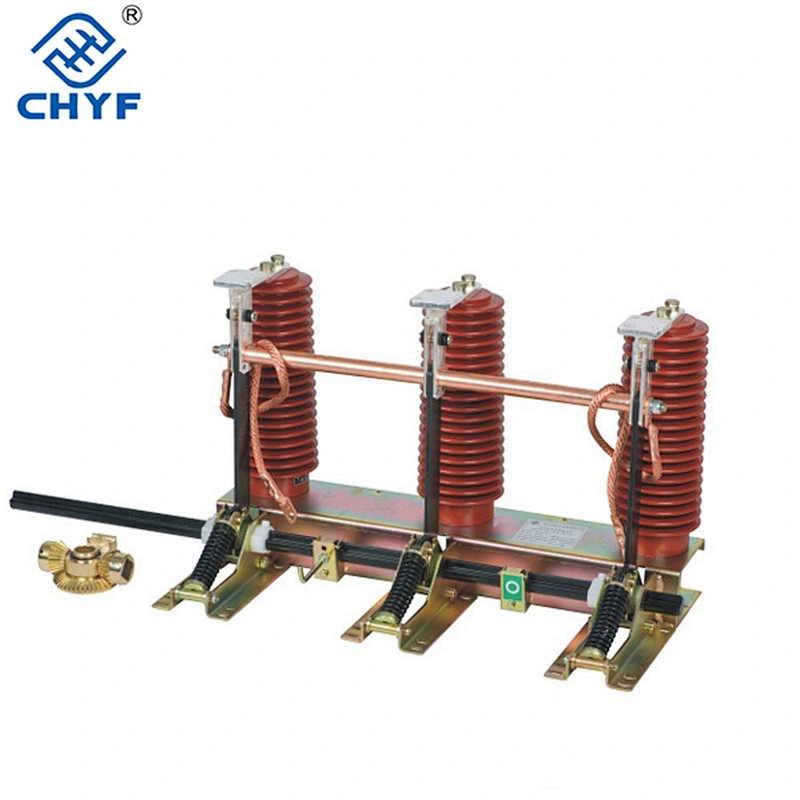

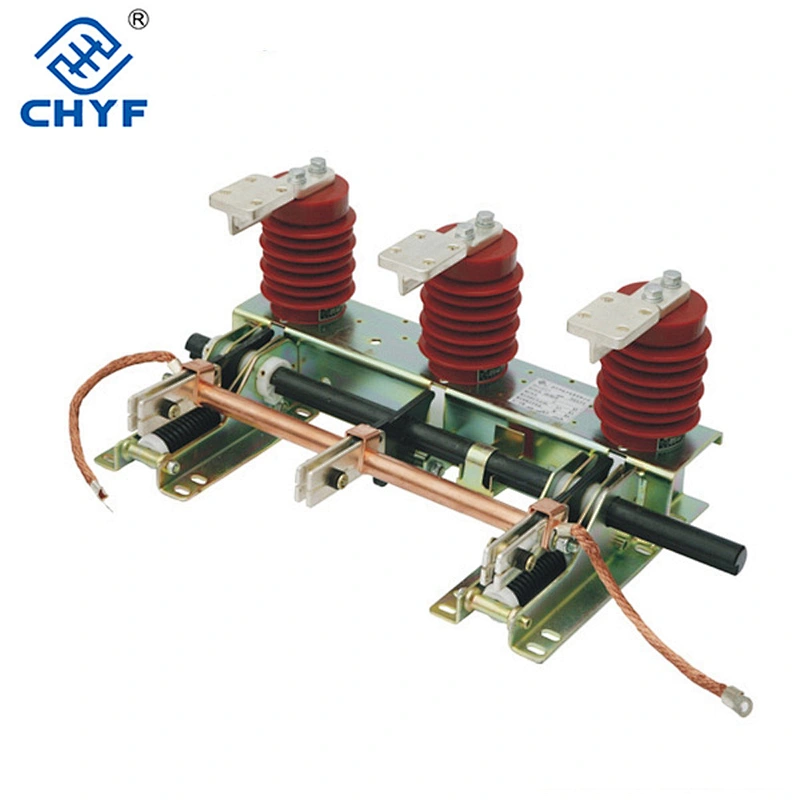

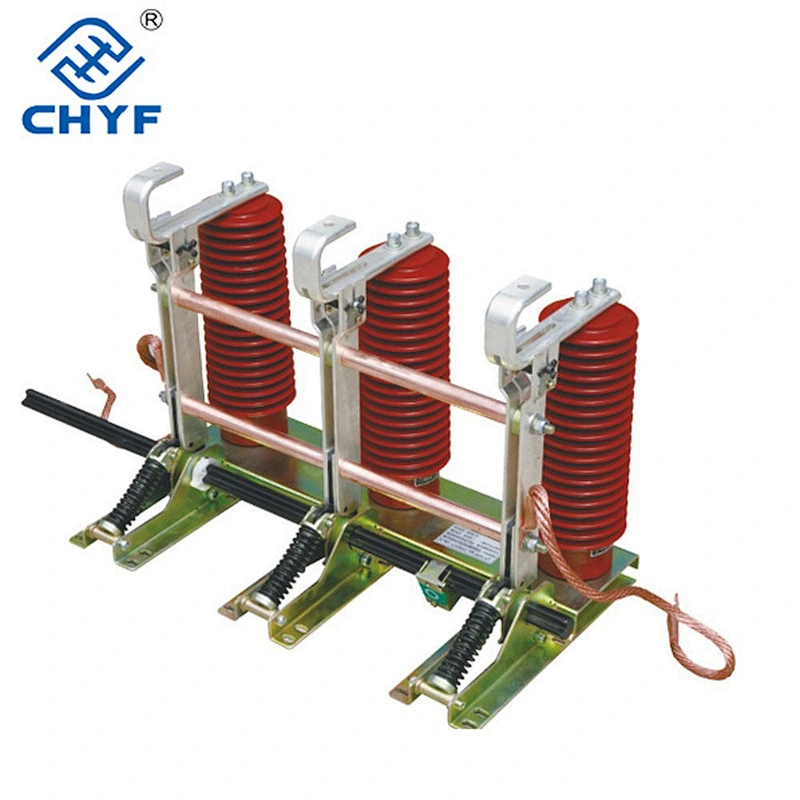

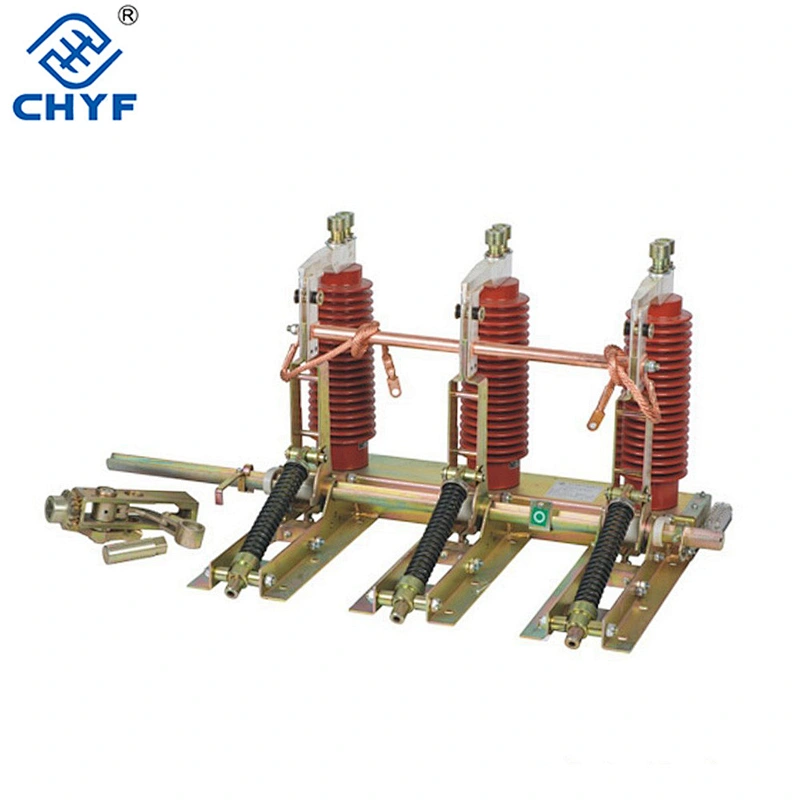

High Voltage Grounding Switch of switchgear from china supplier

• rated voltage:35.5
• maximum voltage:40.5
• rated short time withstand current:31.5
• rated short circuit withstand time:4
• rated short circuit making current:80
• central distance between poles:80
• Place of Origin:CN;ZHE
• Brand Name:YUFENG
• Model Number:JN96-40.5/40

High Voltage Grounding Switch of switchgear from china supplier details listed as belows:

1. Model No.: JN96-40.5 / 31.5 HV earthing switch

2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129

3. Application: KYN61-40.5 HV switchgear and various types HV switchgear

4. Main function: Used for earthing protection

5. Central distance between poles: 280, 300, 350, 400
