- Poles Number:4
- power voltage:220V
- rated motor voltage:220V
- rated motor power:150W
- rated motor torque:260N/M
- Motor ratation speed:5R/Min
- Place of Origin:CN;ZHE
- Certification:ccc
- Brand Name:YUFENG
- Model Number:JN22-40/31.5E
- Max. Voltage:220V
Specifications

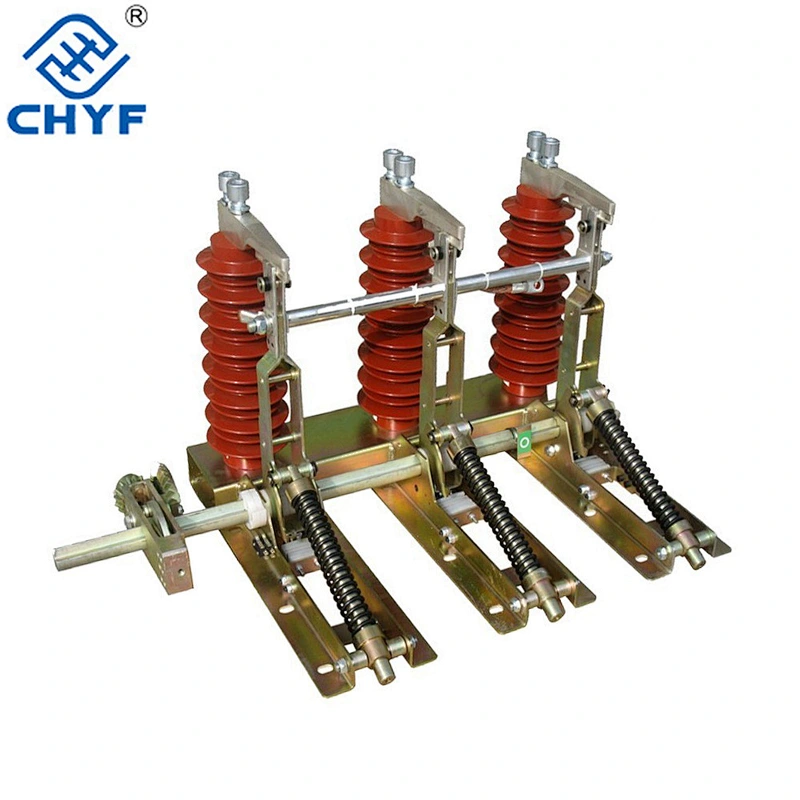

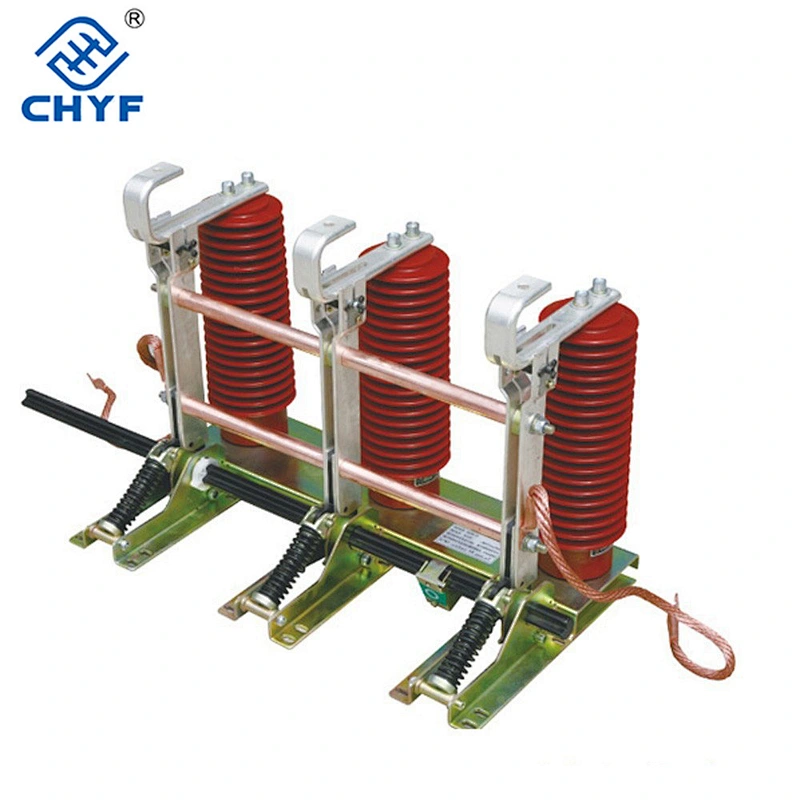

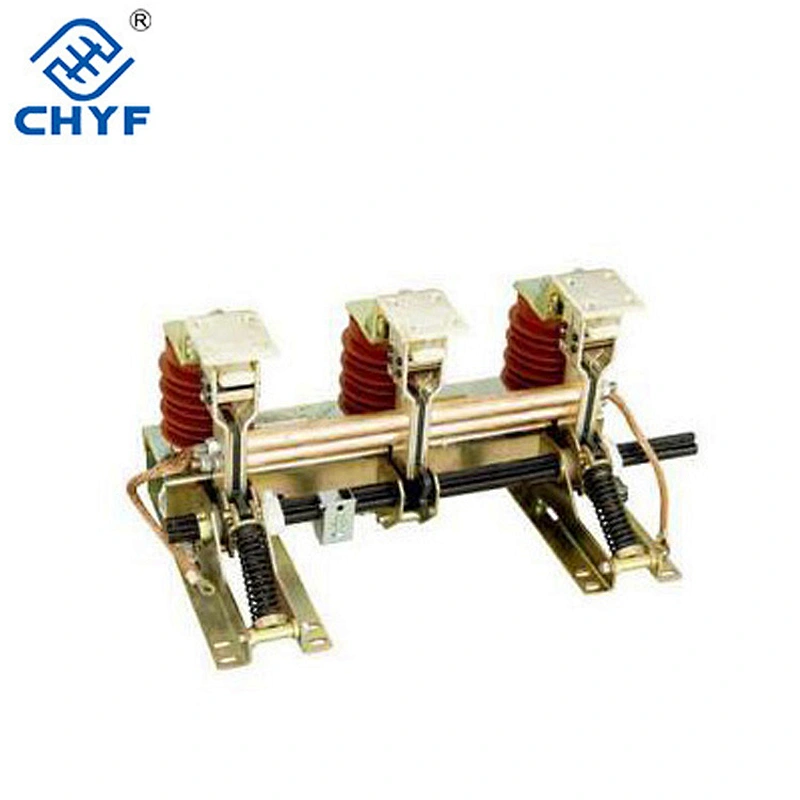

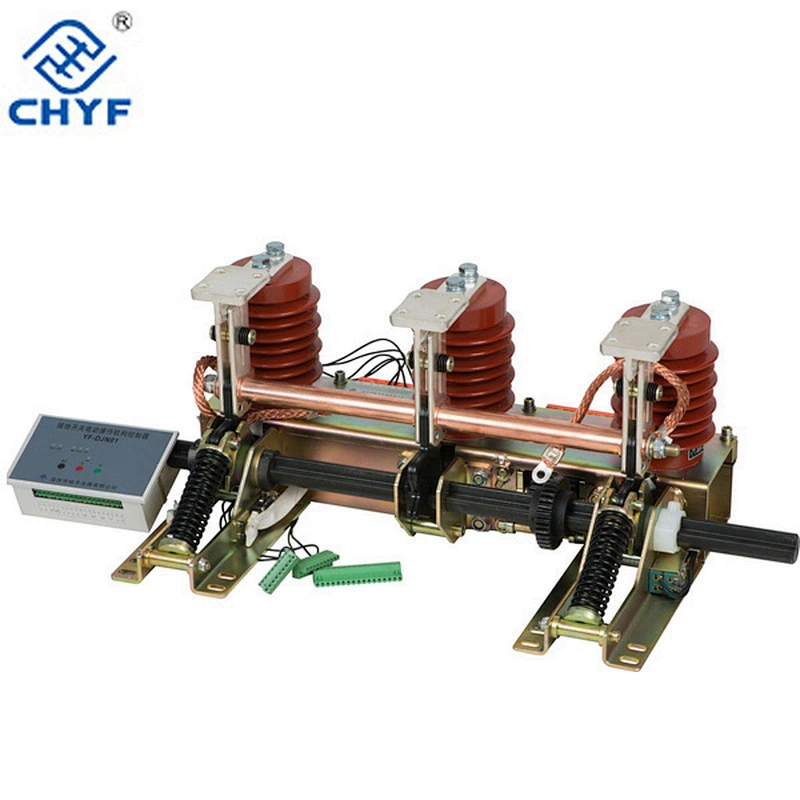

Electric earthing switch JN22
1.light weight,easy-operated
2.Reliability and security
3.Got the invention patent

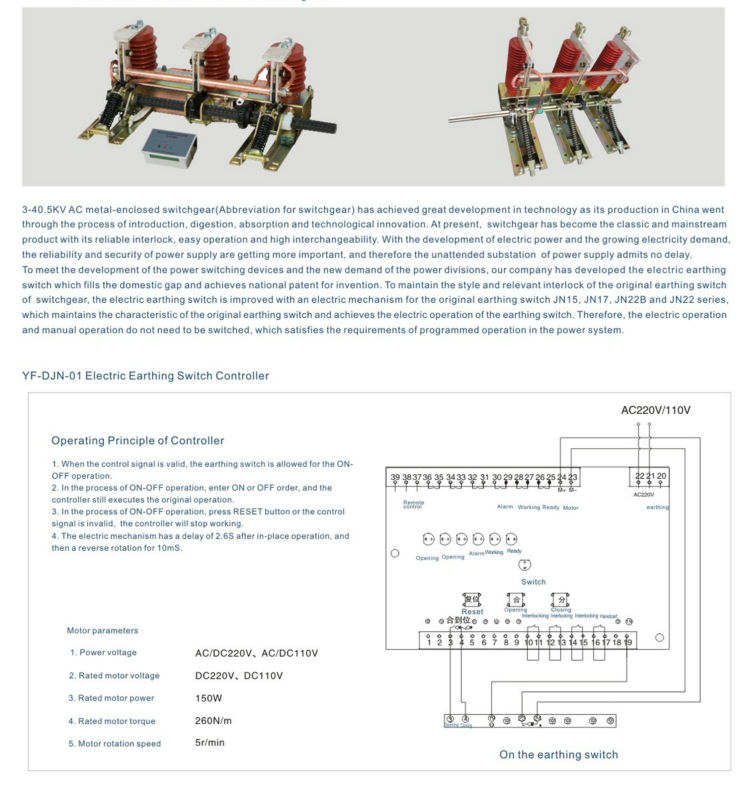

Electric earthing switch JN22 is a large improvement in power supply inventions which can be an unattended substation , electric and mannaul operation don't need to be switched.
1. Model No.: JN22-40/31.5E HV earthing switch
2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3. Application: KYN61-40.5 HV switchgear and various types HV switchgear
4. Main function: Used for earthing protection
5. Central distance between poles: 280, 300, 350, 400

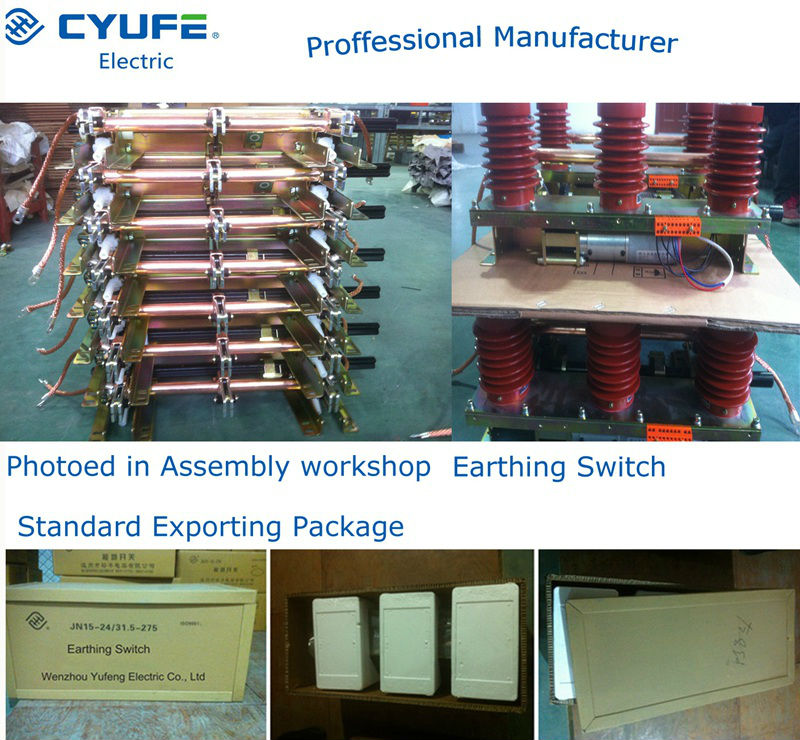

Standard Export Package by polywood or as per requirements
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.com
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
