- Type:High voltage
- Poles number:4
- Rated voltage:35KV
- Rated short time withstand current:31.5KA
- rated short circuit withstand time:4S
- 1 min power frequency withstand voltage:42KA
- Mechanism life:2000Times
- maxium voltage:40.5
- central distance between poles:300, 350,400MM
- rated peak withstand current:80KA
- Place of Origin:CN;ZHE
- Certification:ce
- Brand Name:YUFENG
- Model Number:JN22B-40.5/31.5
- Max. Current:31.5KA
- Max. Voltage:40.5KV

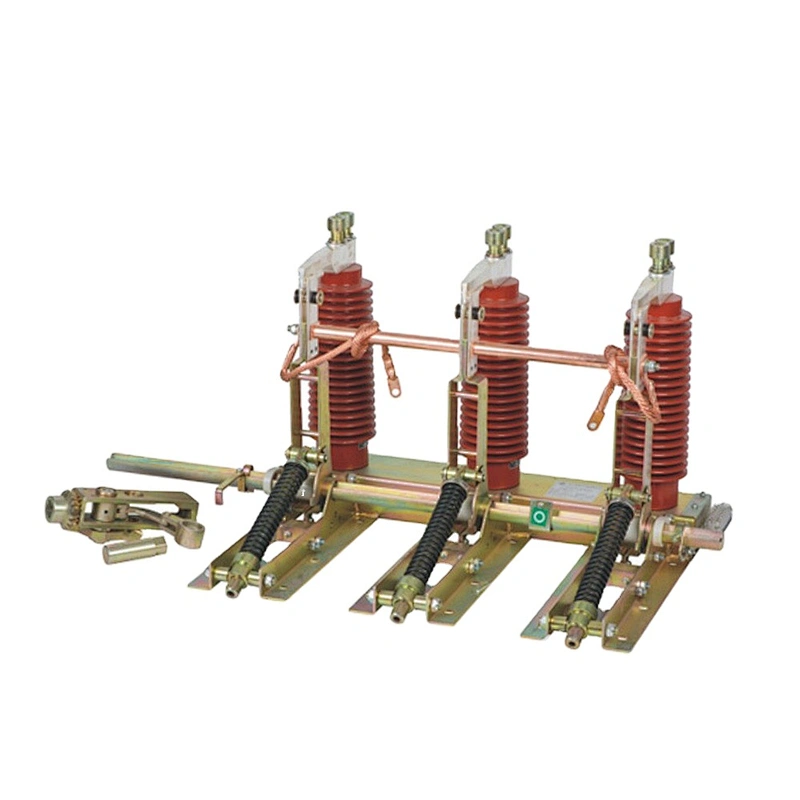

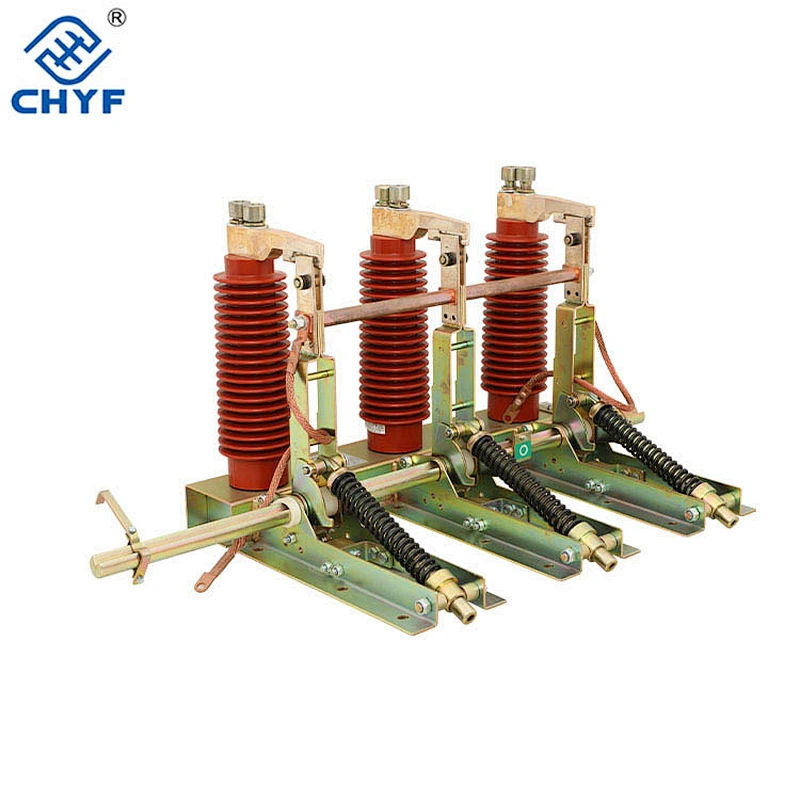

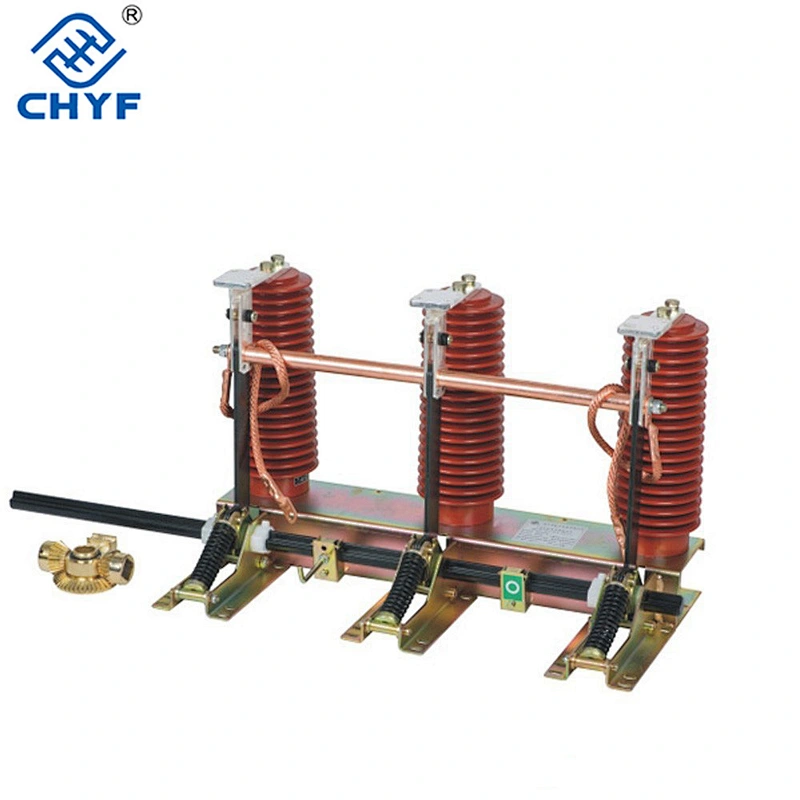

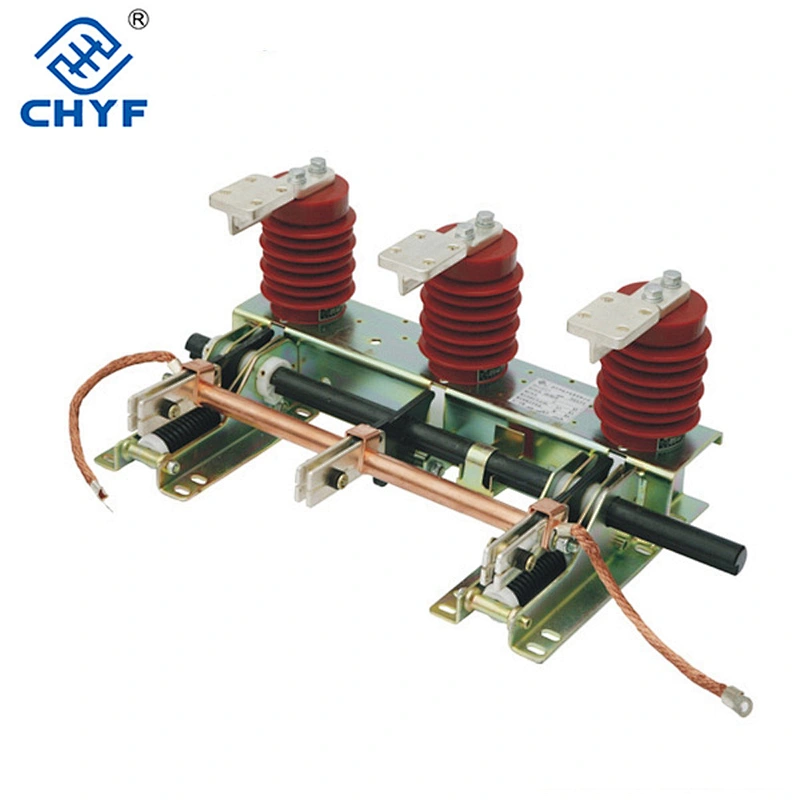

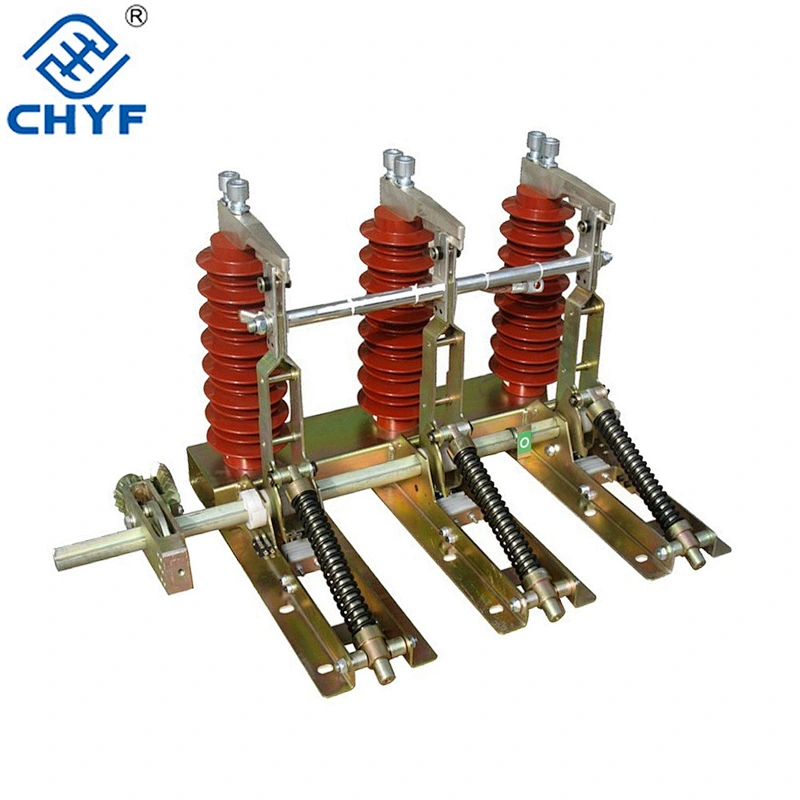

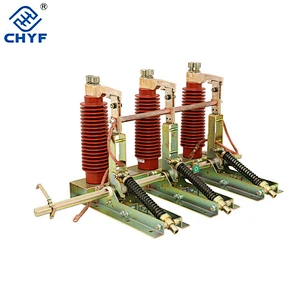

JN22B-40.5/31.5 40.5kv earthing switch with capacitive divider
1. Model No.: JN15-12 /31.5 HV earthing switch
2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3. Application: KYN61-40.5 HV switchgear and various types HV switchgear
4. Main function: Used for earthing protection

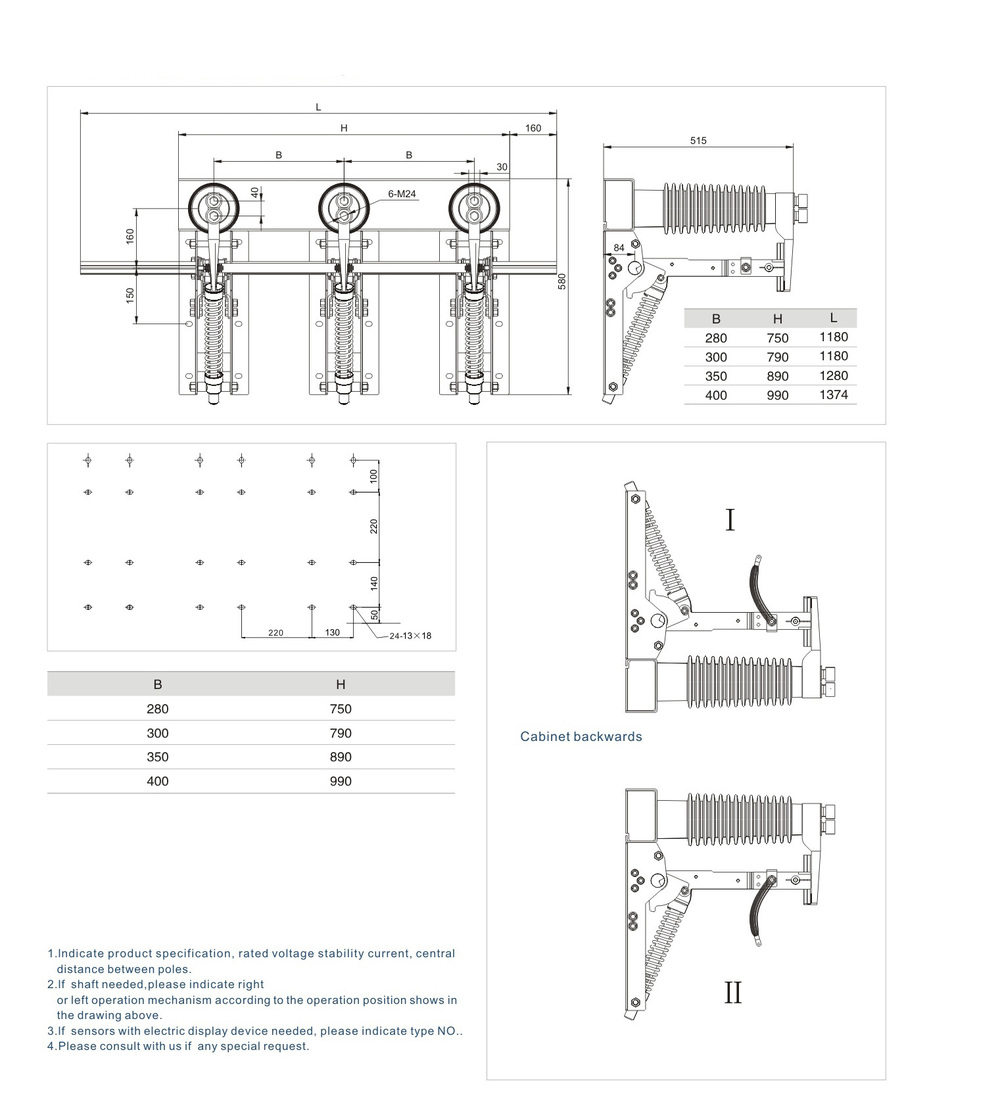

5. Central distance between poles: 280, 300, 350, 400

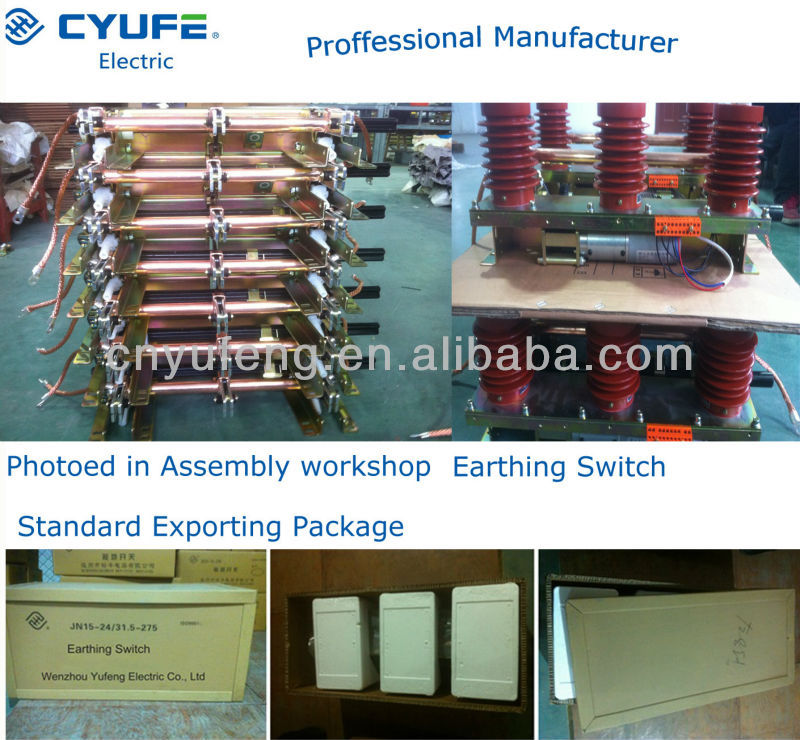

Standard Export Package or as per requirements
Shipment: FOB, EXW, CFR or BY AIR as required
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.com
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
