- Motor ratation speed:5R/Min
- power voltage:AC/DC220V, AC/DC110V
- Rated motor voltage:DC220V, DC110V
- rated voltage:12KV, 24kv
- Type:High Voltage
- Poles Number:4
- Place of Origin:CN;ZHE
- Brand Name:YUFENG
- Model Number:JN17-12/40E

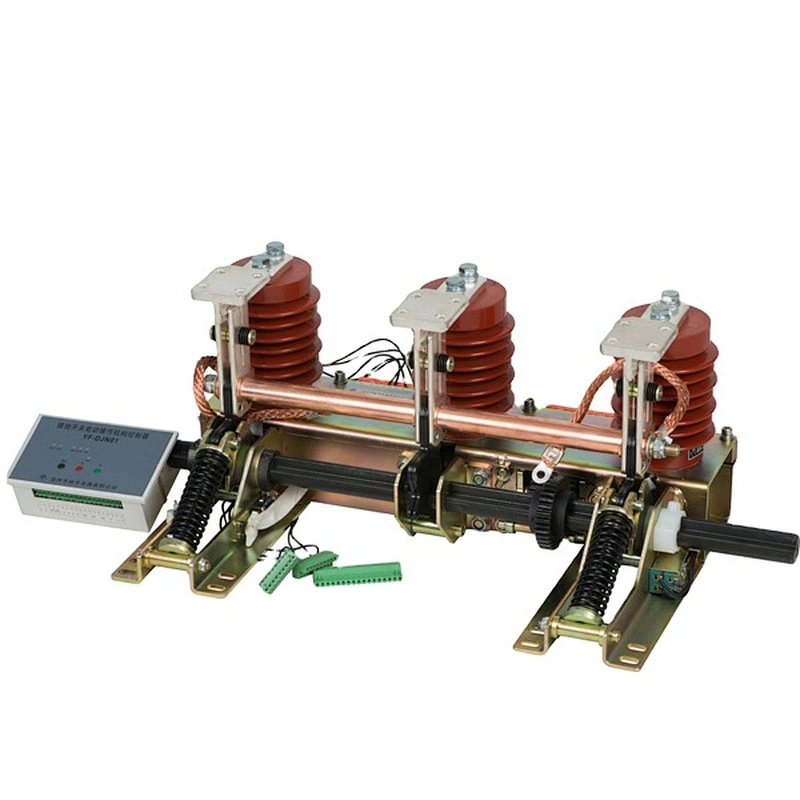

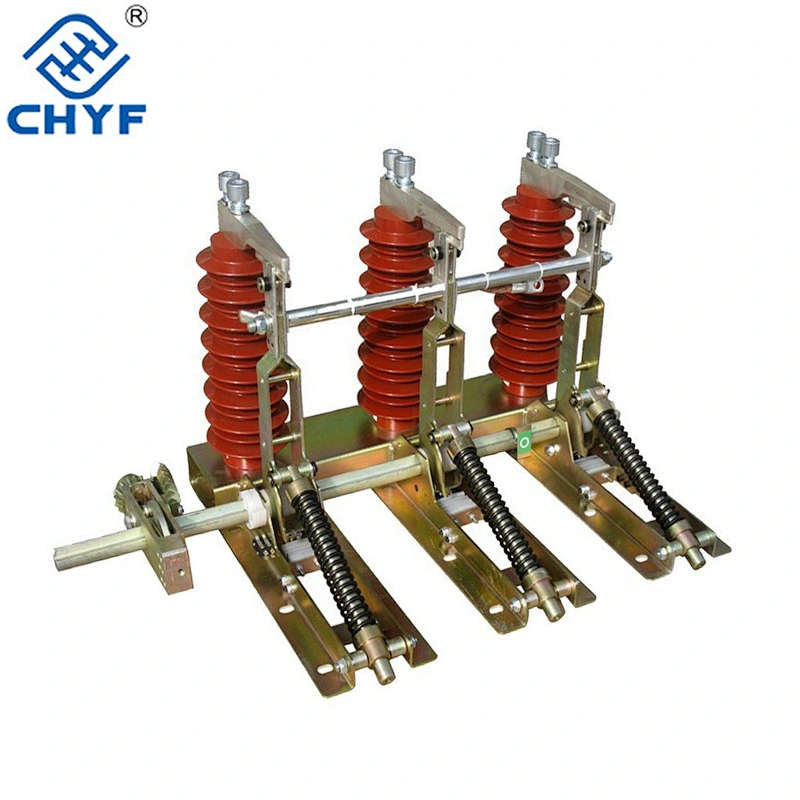

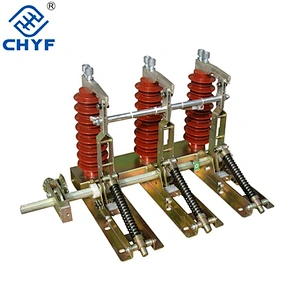

high voltage earthing switch for switchgear

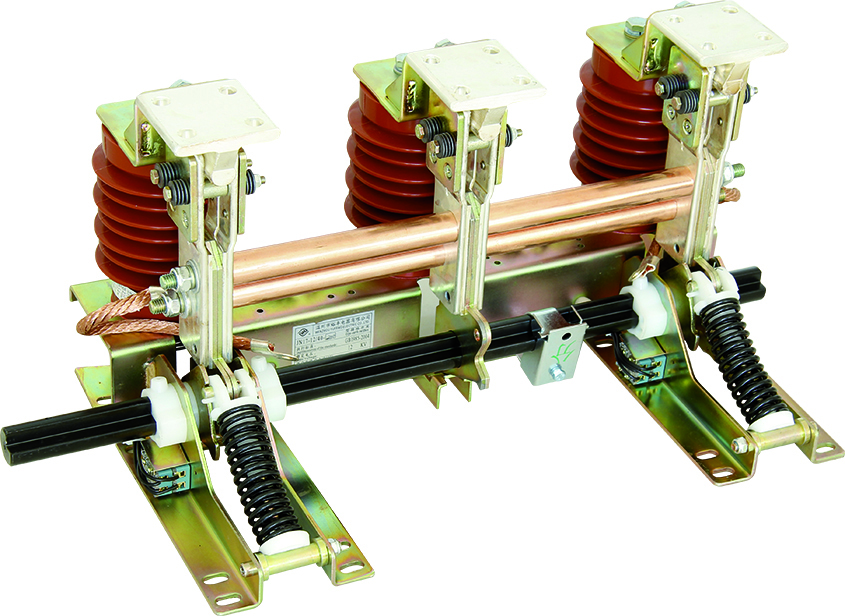

1. Model No.: JN 17-12/40 HV earthing switch
2. Standard: GB 1985-2004 AC HV disconnect switch and earthing switch, IEC129
3. Application: KYN61-40.5 HV switchgear and various types HV switchgear
4. Main function: Used for earthing protection
5. Central distance between poles: 250mm

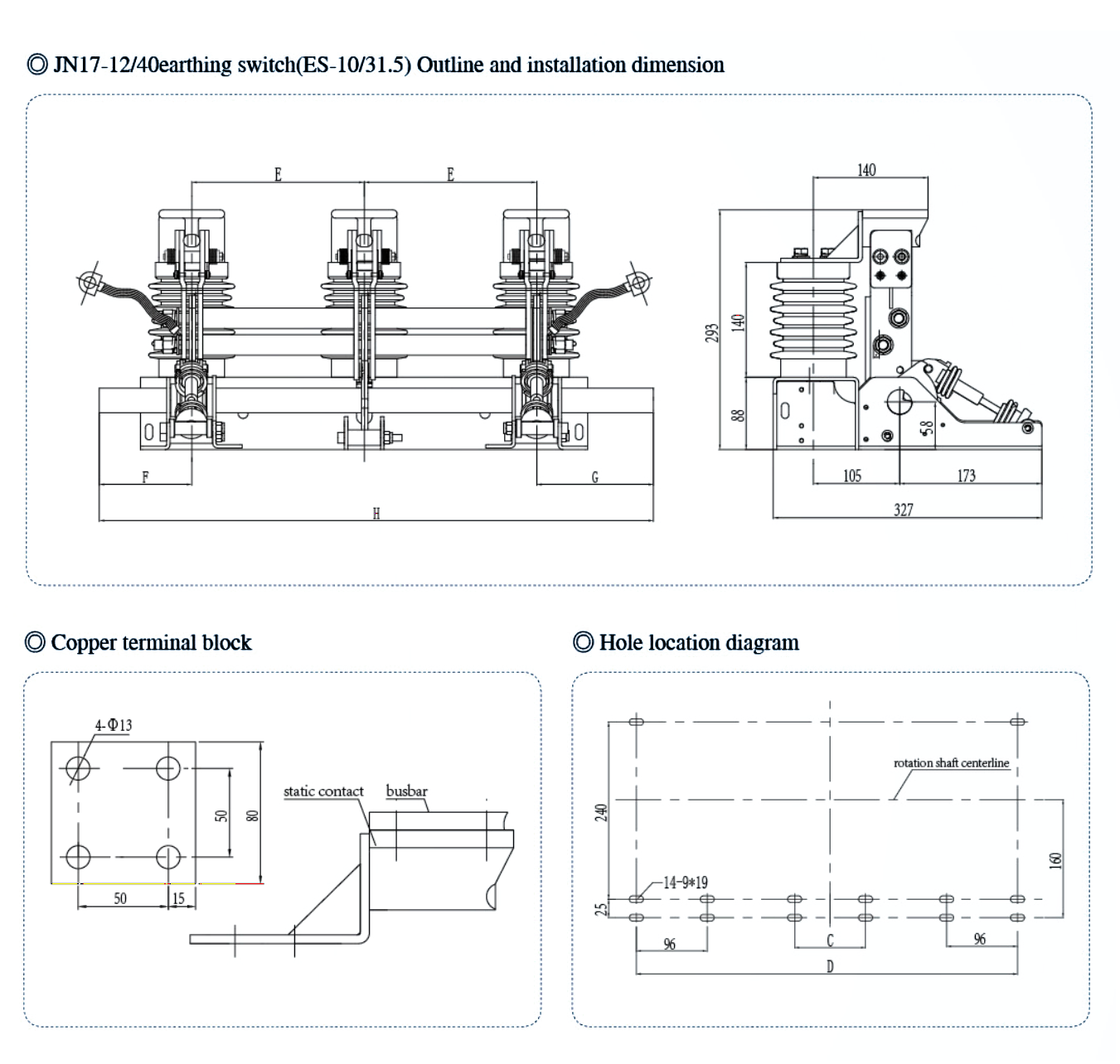

Unit: (mm)
| Specification | E | F | G | H | D |
| JN15-12/40-210 | 210 | 50 | 185 | 655 | 516 |
| JN15-12/40-220 | 220 | 50 | 185 | 675 | 536 |
| JN15-12/40 230 | 230 | 50 | 185 | 695 | 556 |
| JN15-12/40-250 | 250 | 50 | 185 | 735 | 596 |
| JN15-12/40-275 | 275 | 50 | 185 | 810 | 646 |
| Item | Item | date | |
| Rated voltoge | KV | 12 | |
| Rated short time withstand current | KA | 40 | |
| Rated short circuit withstand fime | S | 4 | |
| Rated short circuit making current | KA | 80 | |
| Rated peak withstand current | KA | 80 | |
| Rated insulation leve | 1 min power frequency withstand vottoge | KV | 42 |
| lightning Impulse withstand voltage | 75 | ||
| Mechanism life | time | 2000 | |
